Power Door Locks - Inoperative - Driver Door (W/O PRP)
Power Door Locks - Inoperative - Driver Door (W/O PRP)

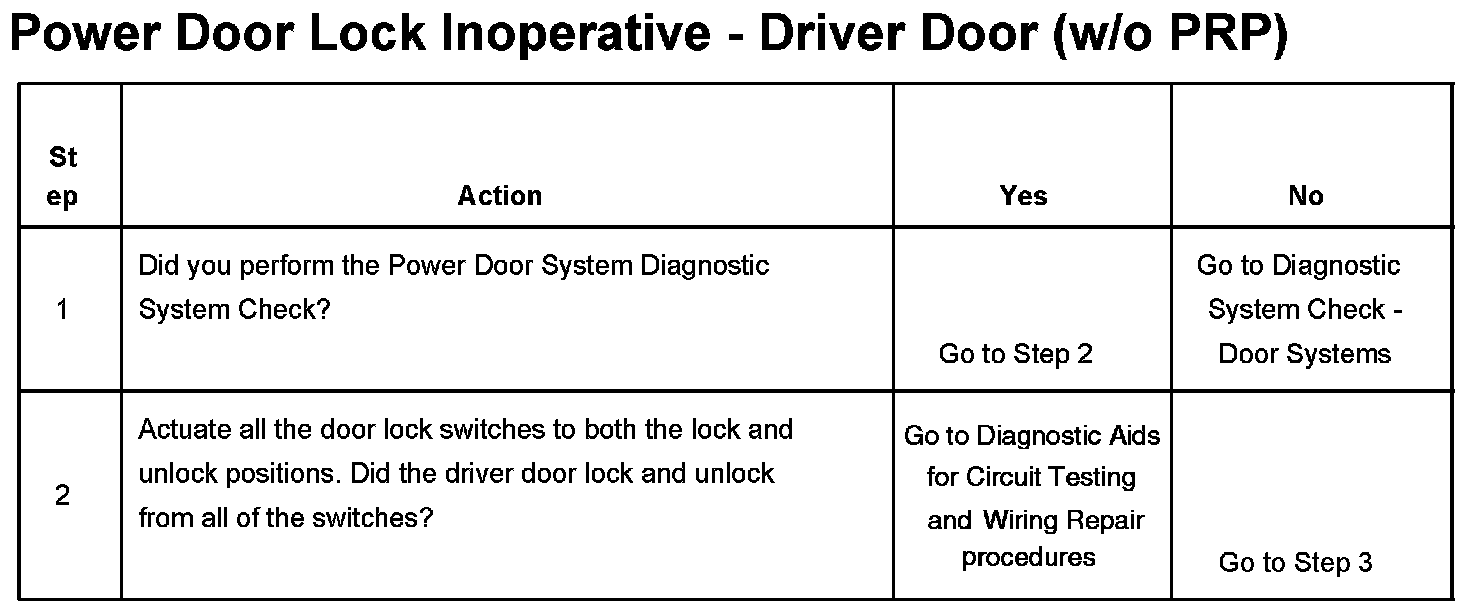

Steps 1-2:

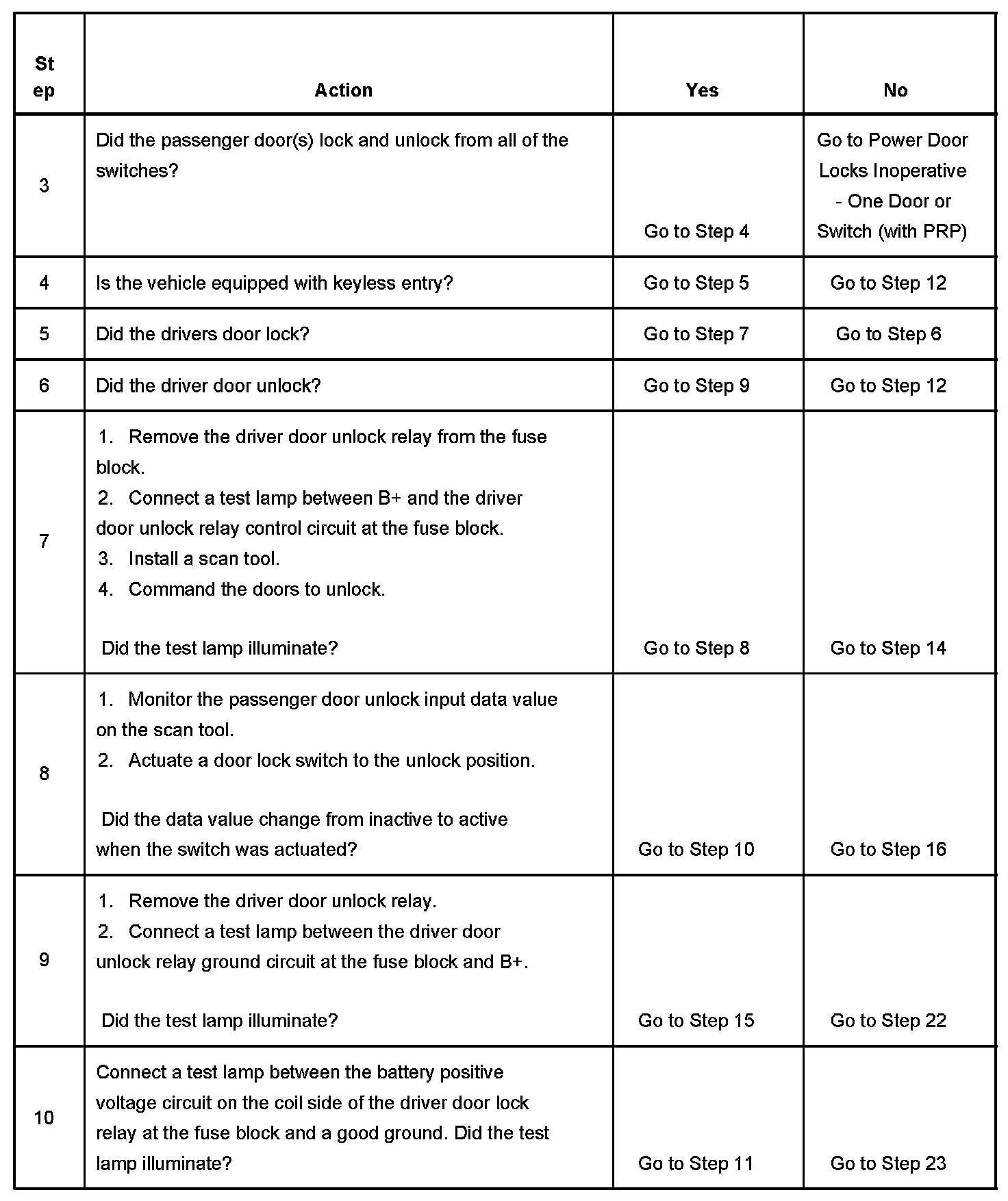

Steps 3-10:

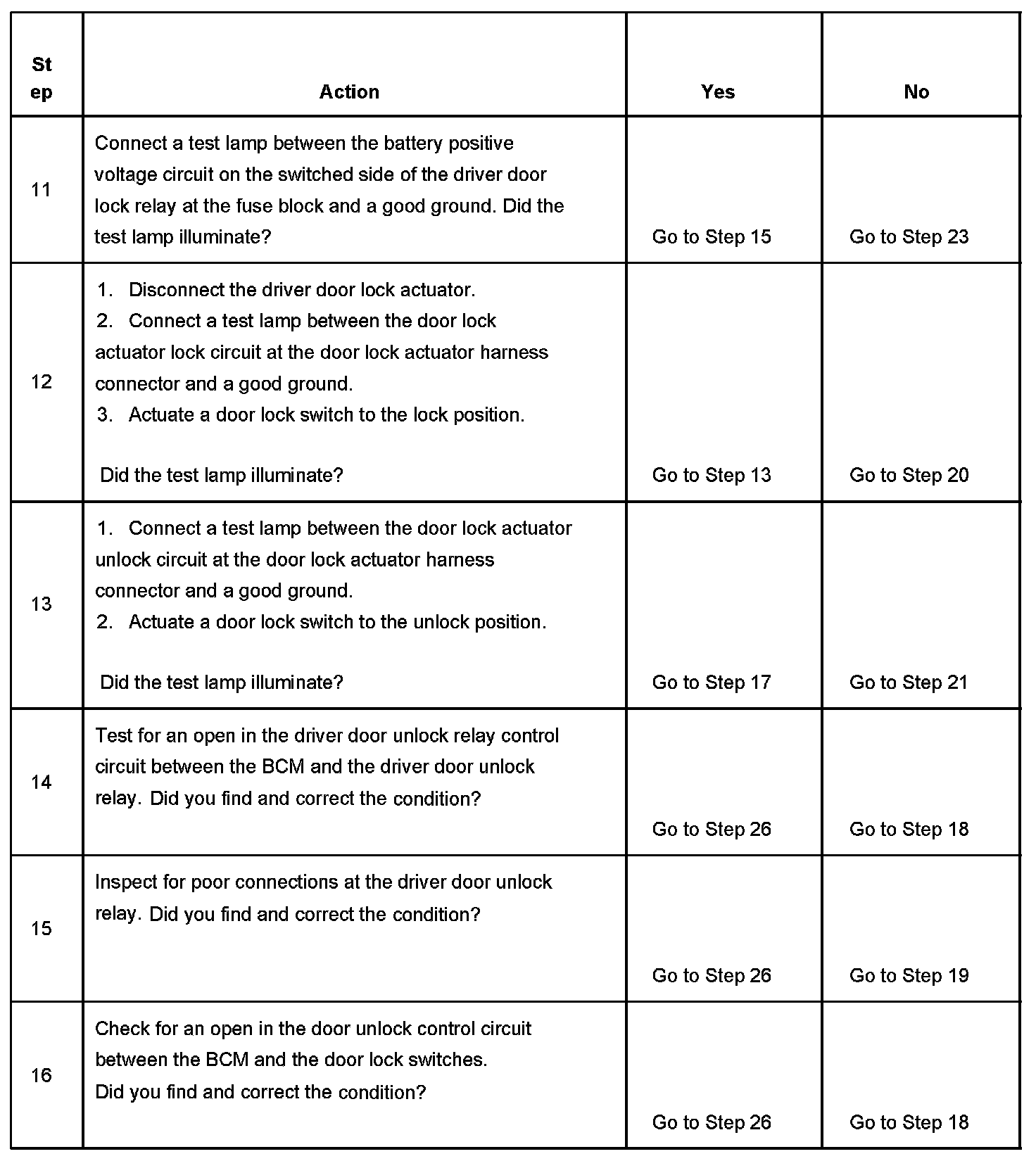

Steps 11-16:

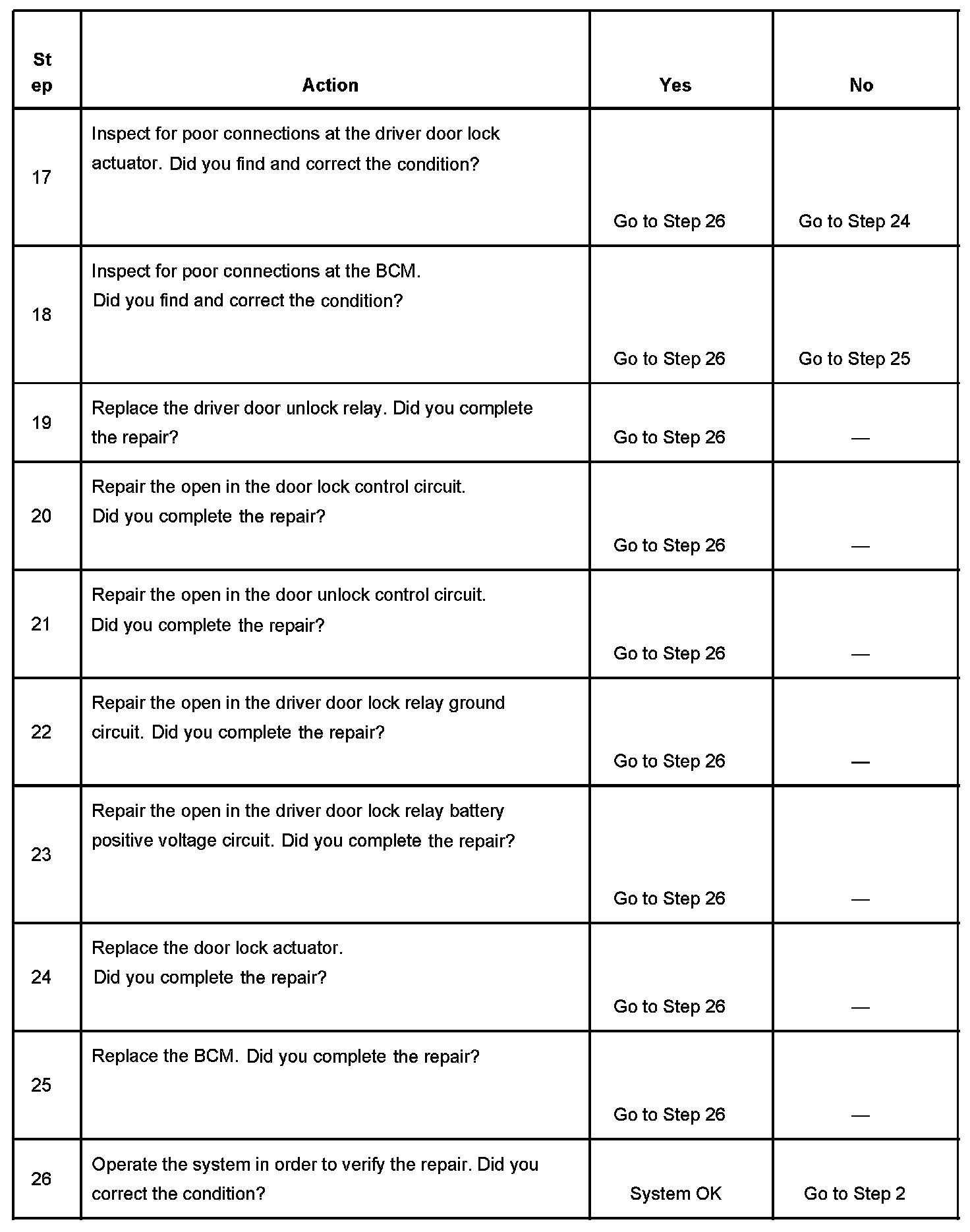

Steps 17-26:
