Home >> Chevy Truck >> 2003 >> Express 1/2 Ton Van AWD V8-5.3L VIN T >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Locations >> Upper Rear Speakers Harness Routing (Passenger/Cargo)

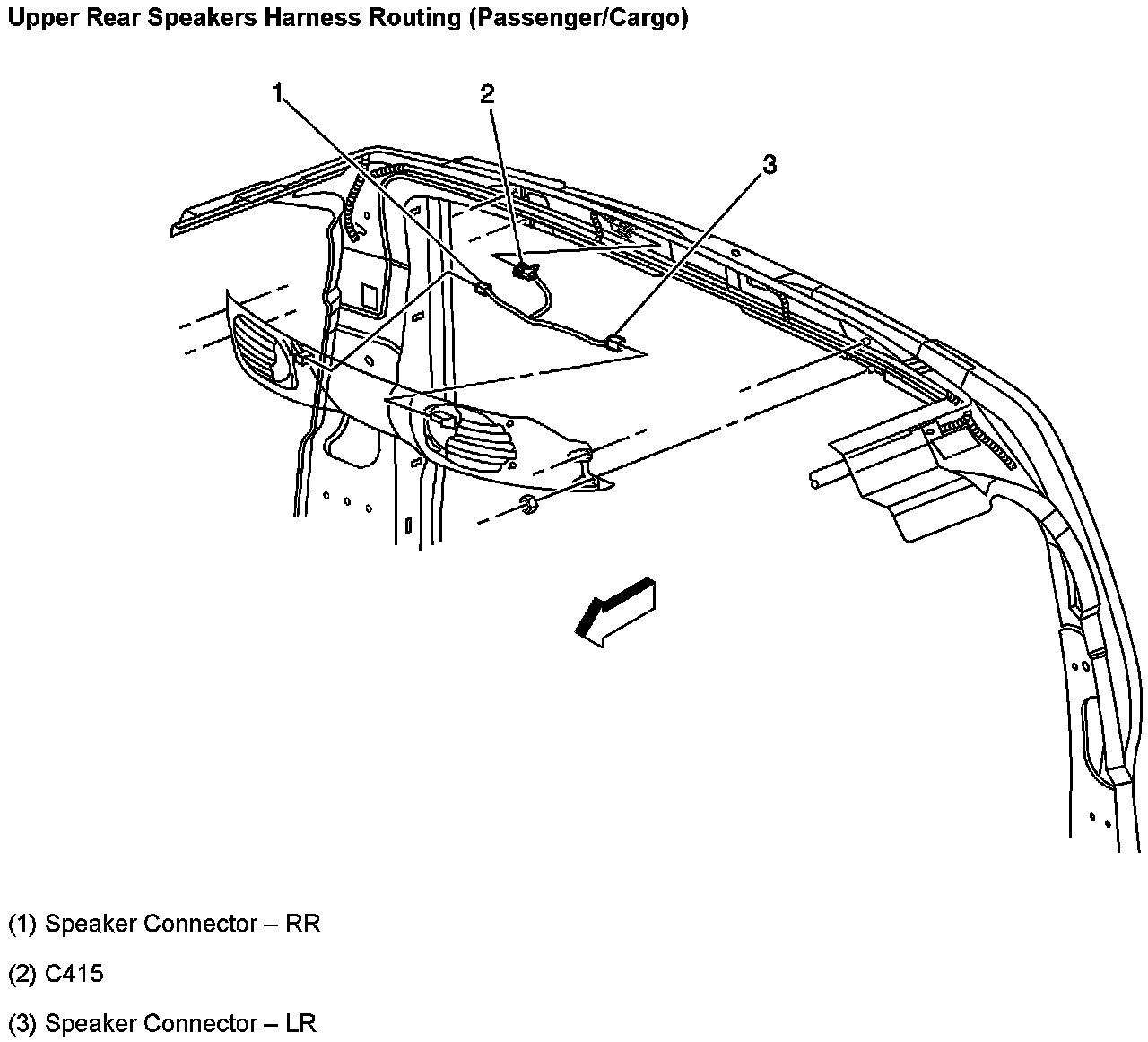

Upper Rear Speakers Harness Routing (Passenger/Cargo)

Upper Rear Speakers Harness Routing (Passenger/Cargo):
