All Access Panels Inoperative
ALL ACCESS PANELS INOPERATIVEDIAGNOSTIC AIDS
Test for all of the following before replacing the panel actuator fuse:
- Each of the access panel voltage supply circuits for a short to ground.
- Each of the relay coil supply circuits for a short to ground or an open.
- All of the access panel actuators for internal shorts.
TEST DESCRIPTION
Steps 1-5:

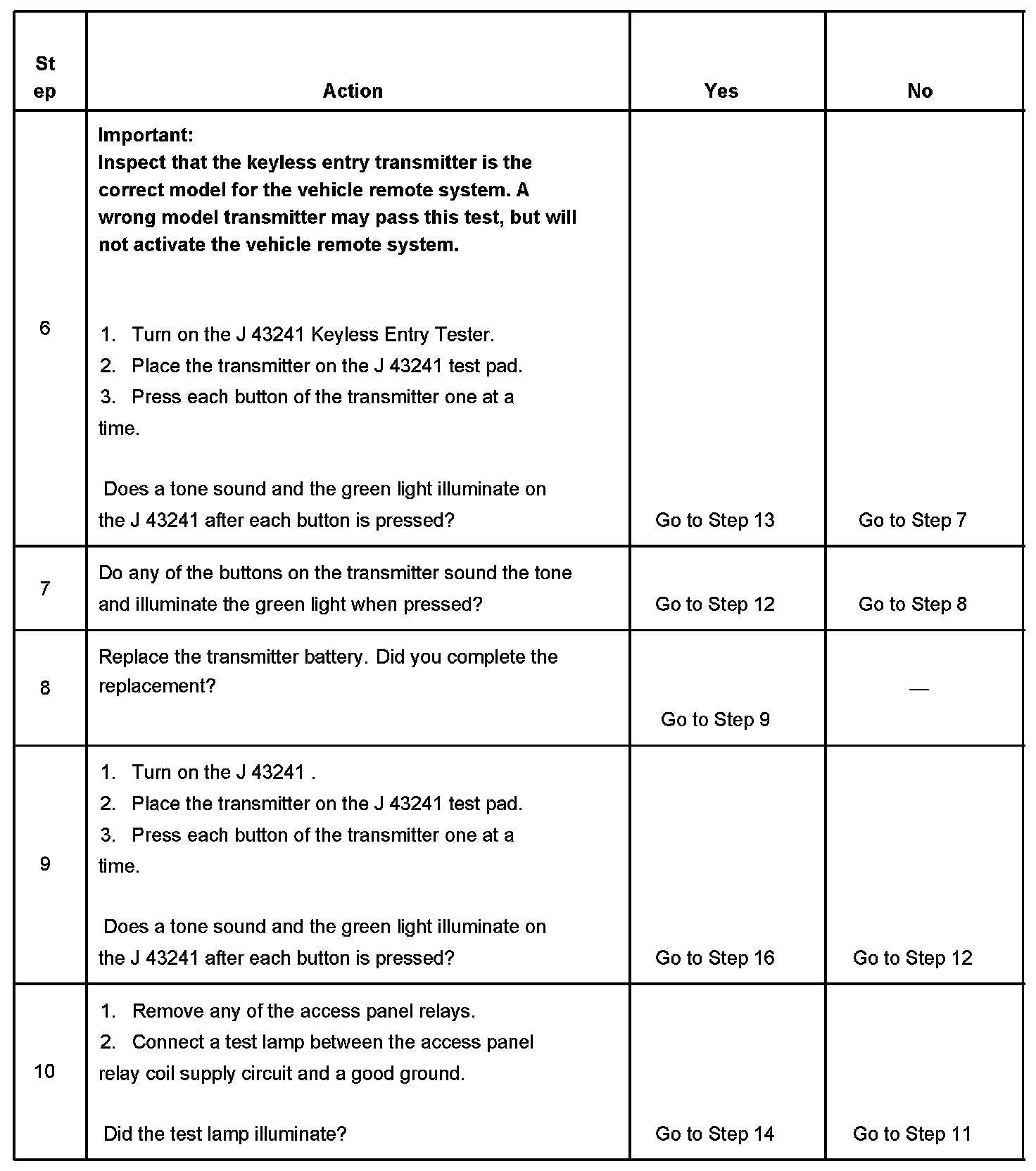

Steps 6-10:

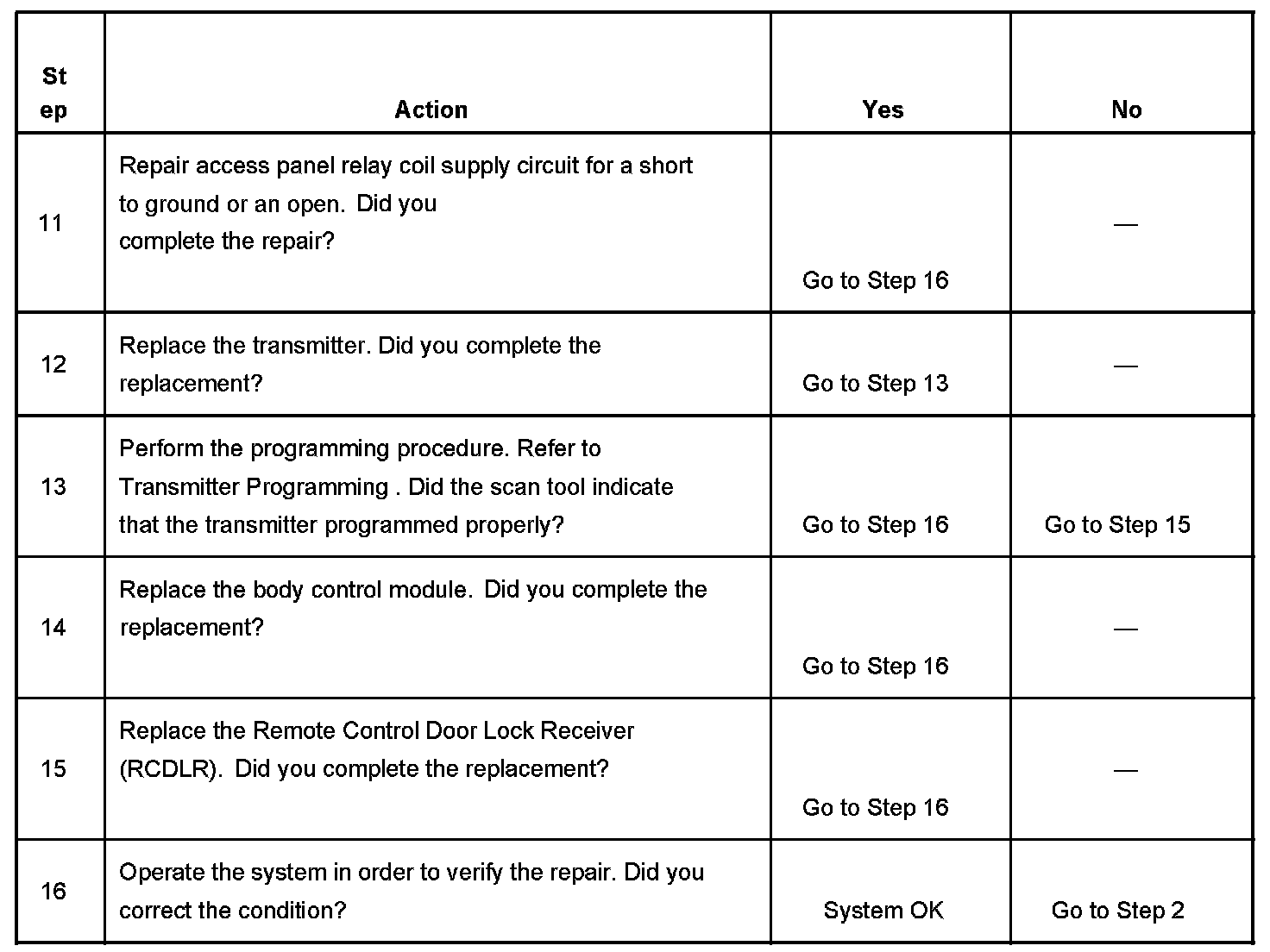

Steps 11-16:
The number below refers to the step number on the diagnostic table.
11. An open fuse in this step may have been caused by a short to ground in any of the 3 access panel voltage supply circuits or a shorted access panel actuator.
