Temperature Displays SC or OC - Mirrors

MIRRORS -TEMPERATURE DISPLAYS SC OR OC

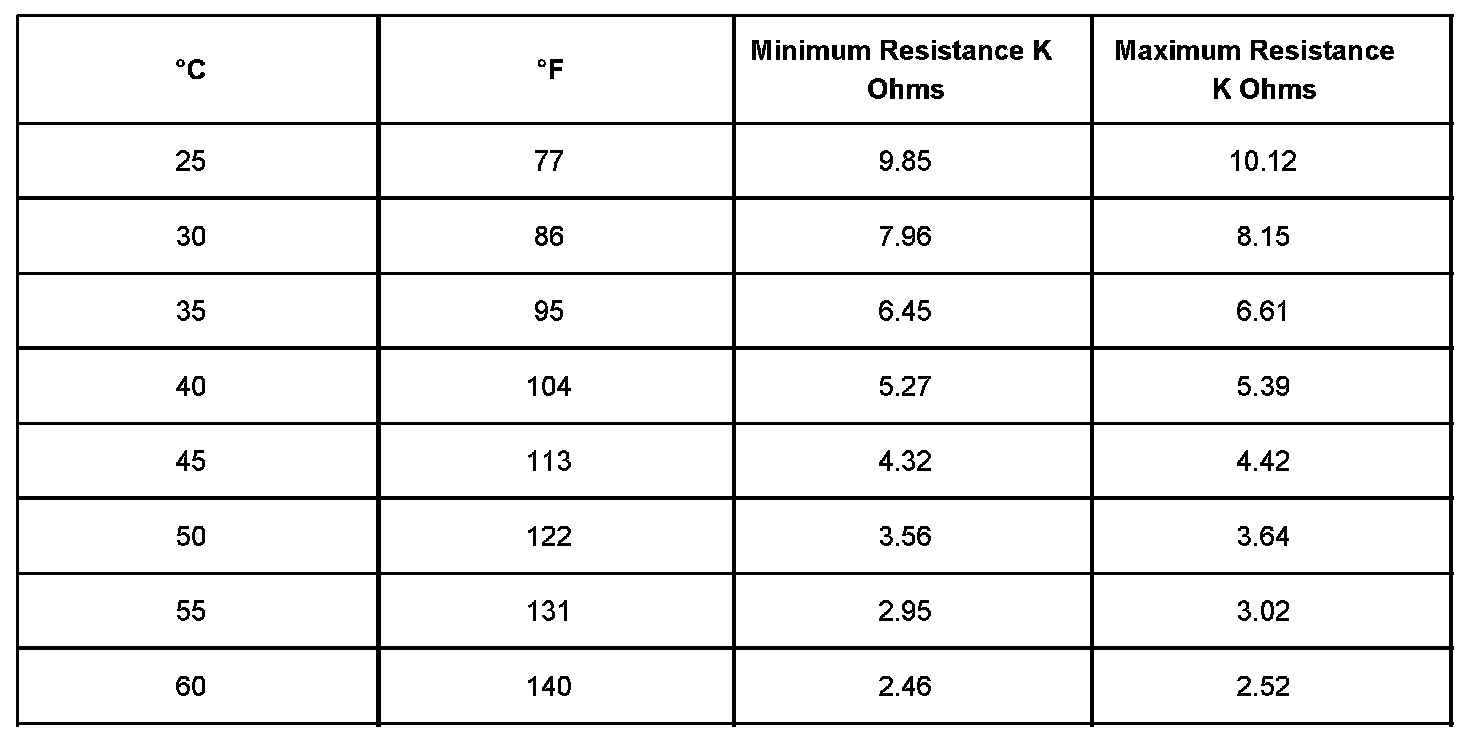

Ambient Air Temperature Sensor Resistance Part 1:

Ambient Air Temperature Sensor Resistance Part 2:

The table will be used to measure the resistance of the sensor and compare it with the actual ambient temperature. The mirror's temperature accuracy should be within 5° of the actual temperature. The actual temperature should not be taken from a radio station, a sign displaying the temperature, etc. A temperature measuring tool such as a thermometer should be used. Some temperature measuring tools may be within 5° of the actual temperature. Make sure to consult the manufacturer for the accuracy of the tool. This comparison can make the mirror seem off by 5° to 10° of the actual temperature when it is not.

TEST

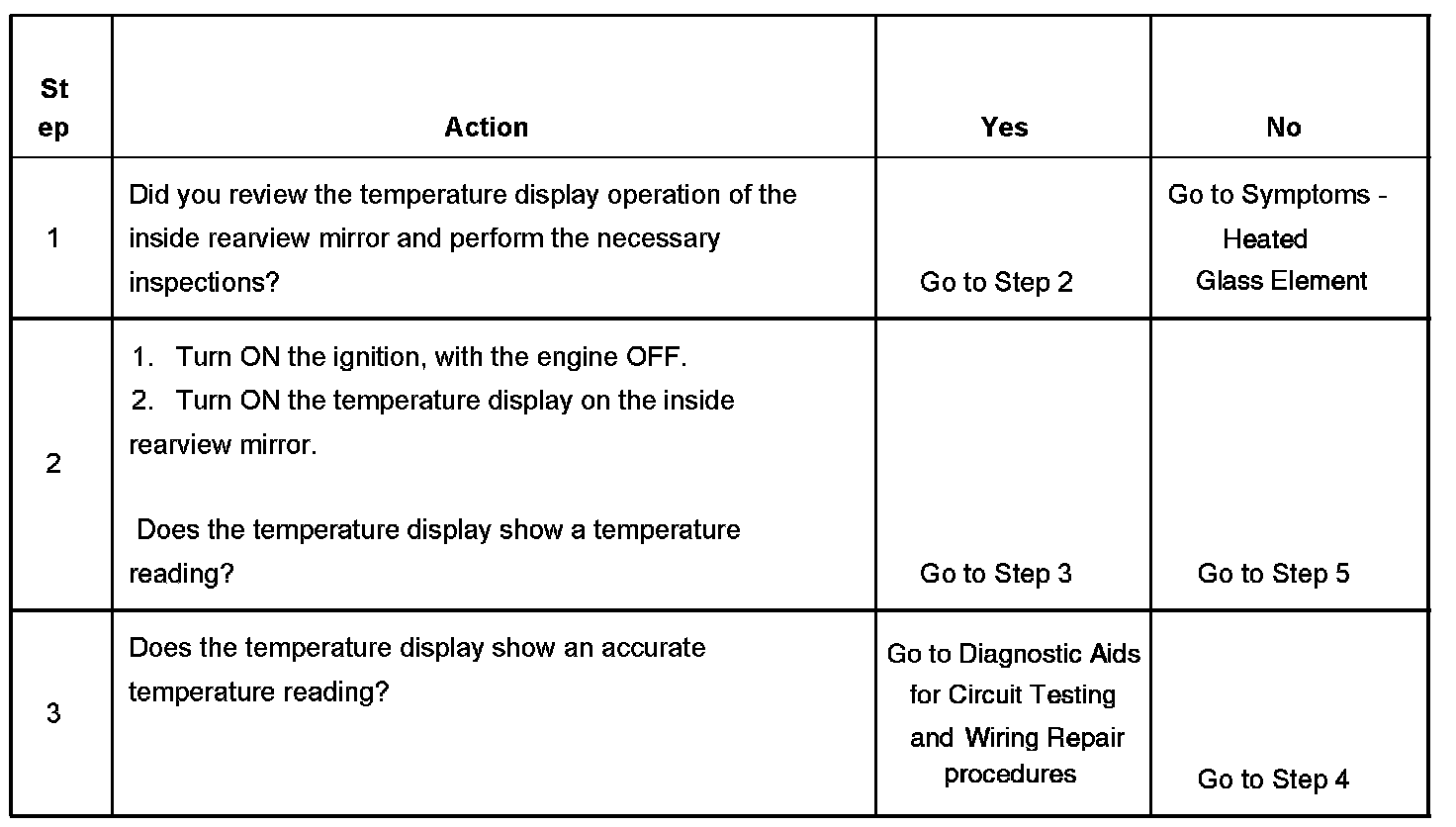

Steps 1-3:

Steps 4-8:

Steps 9-15:

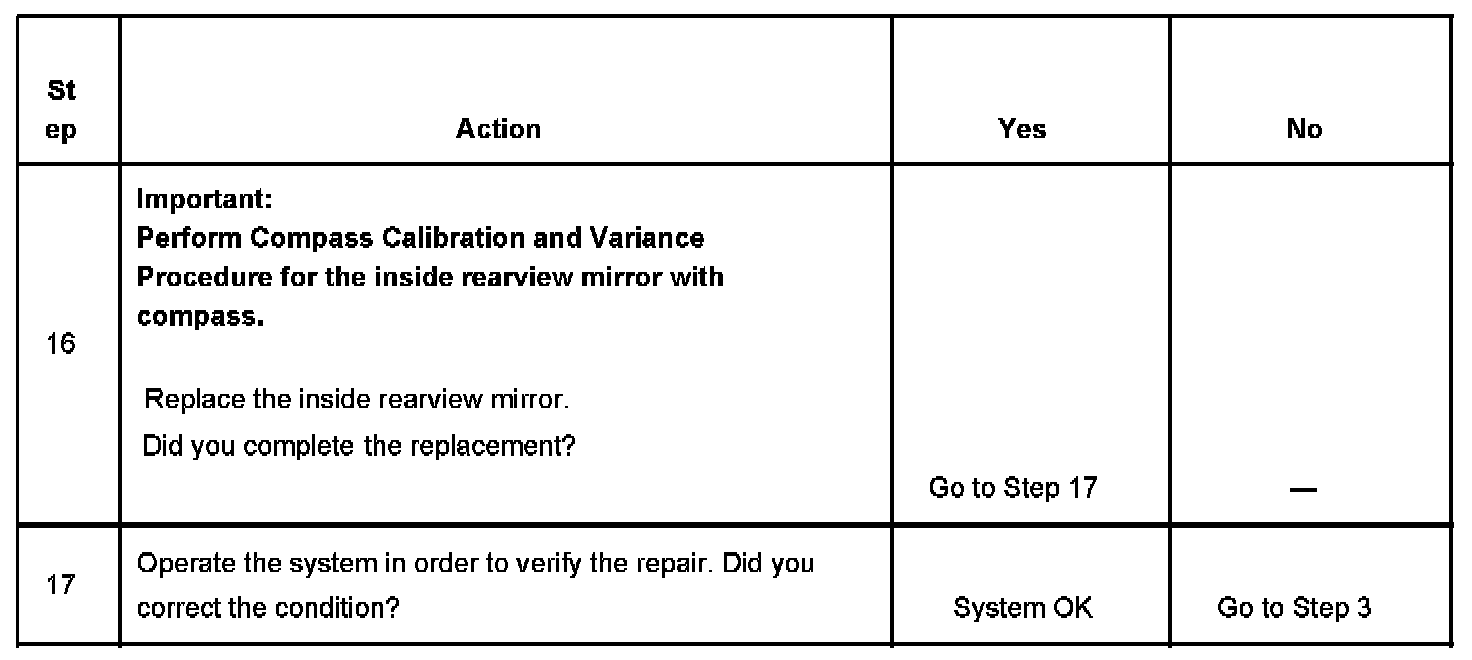

Steps 16-17:
