Tail Lamp, Back Body Opening Applique Replacement - Side
TAIL LAMP, BACK BODY OPENING APPLIQUE REPLACEMENT - SIDEREMOVAL PROCEDURE

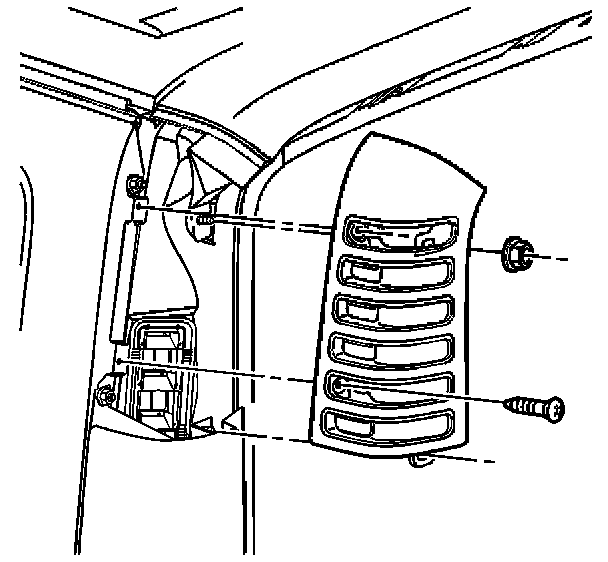

1. Remove the screws that retain the upper quarter panel applique to the body.
2. Remove the nuts that retain the upper quarter panel applique to the body.
3. Remove the upper quarter panel applique from the vehicle.
INSTALLATION PROCEDURE
1. Install the upper quarter panel applique to the vehicle.
2. Install the upper quarter panel applique retaining nut to the body.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the nut that retains the upper quarter panel applique to 6 N.m (53 lb in).
3. Install the upper quarter panel applique screw to the body.
Tighten
Tighten the screw to 3 N.m (27 lb in).
