Garnish Molding Replacement - Sliding Door

Garnish Molding Replacement - Sliding Door

Removal Procedure

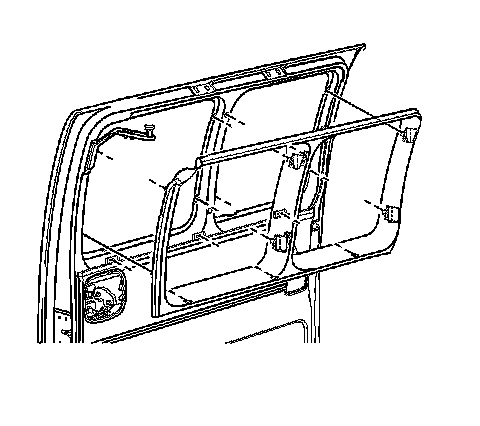

1. Grasp the sliding side door upper trim panel .
Pull on the panel in order to disengage the retaining clips.
2. Inspect the sliding side door upper trim panel for broken or missing clips.
Replace the clips if needed.



Installation Procedure





1. Install the sliding side door upper trim panel to the vehicle.
2. Align the tabs on the trim panel with the retainers on the door.
Press the trim panel into place.
