Garnish Molding Replacement - Right Side Front

Garnish Molding Replacement - Right Side Front

Removal Procedure

1. Remove the passenger side body side trim panel. Refer toTrim Panel Replacement - Right Body Side (Trim Panel Replacement - Right Body Side) .
2. Remove the passenger side body side rear upper garnish molding. Refer to Garnish Molding Replacement - Body Side Rear Upper (Garnish Molding Replacement - Body Side Rear Upper) .

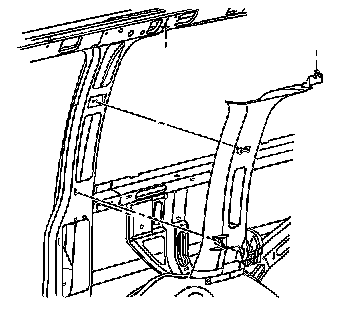

3. Grasp and gently pull the passenger side front corner garnish molding down in order to disengage the retaining clips.
4. Slip the seat belt through the slot in the passenger side front corner garnish molding.
5. Remove the passenger side front corner garnish molding from the vehicle.
6. Inspect the passenger side front corner garnish molding for broken or missing retaining clips. Replace the clips as needed.



Installation Procedure





1. Install the passenger side front corner garnish molding to the vehicle.
2. Slip the seat belt through the slot in the passenger side front corner garnish molding.
3. Press on the passenger side front corner garnish molding in order to engage the retaining clips.
4. Install the passenger side body side rear upper garnish molding. Refer to Garnish Molding Replacement - Body Side Rear Upper (Garnish Molding Replacement - Body Side Rear Upper) .
5. Install the passenger side body side trim panel. Refer to Trim Panel Replacement - Right Body Side (Trim Panel Replacement - Right Body Side) .
