Garnish Molding Replacement - Rear Corner

Garnish Molding Replacement - Rear Corner

Removal Procedure





1. Remove the rear passenger seats when needed. Refer to Seat Replacement - Rear Bench (Seat Replacement - Rear Bench) in Seats.
2. Remove the passenger side rear corner trim panel, for the passenger side of the vehicle only. Refer to Trim Panel Replacement - Right Rear Corner (Trim Panel Replacement - Right Rear Corner) .

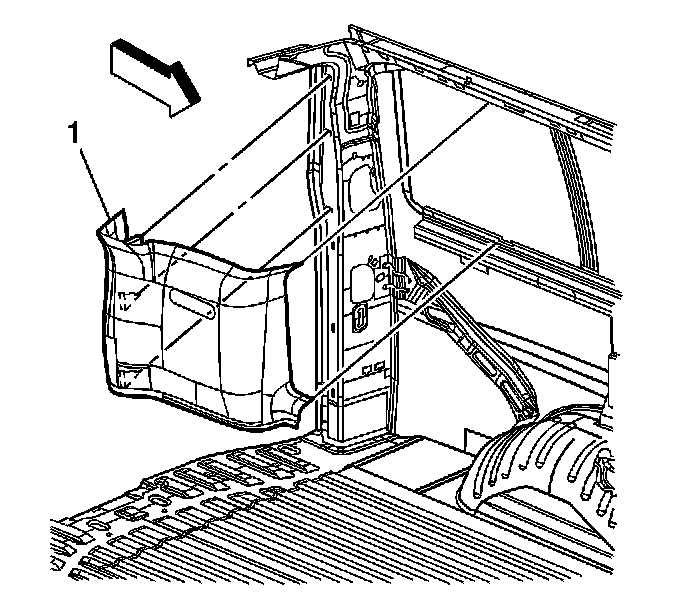

3. Pull down on the upper corners of the garnish molding (1) in order to disengage the retaining clips.
4. Pull in order to disengage the remaining retaining clips.
5. Remove the rear corner garnish molding (1) from the vehicle.
6. Inspect the rear corner garnish molding (1) for broken or missing clips. Replace the clips as needed.



Installation Procedure





1. Install the rear corner garnish molding (1) to the vehicle.
2. Press on the rear corner garnish molding (1) in order to engage the clips.
3. Install the passenger side rear corner trim panel (1), for the passenger side of the vehicle only. Refer to Trim Panel Replacement - Right Rear Corner (Trim Panel Replacement - Right Rear Corner) .
4. Install the rear passenger seats as needed. Refer to Seat Replacement - Rear Bench (Seat Replacement - Rear Bench) in Seats.
