Scan Tool Data List

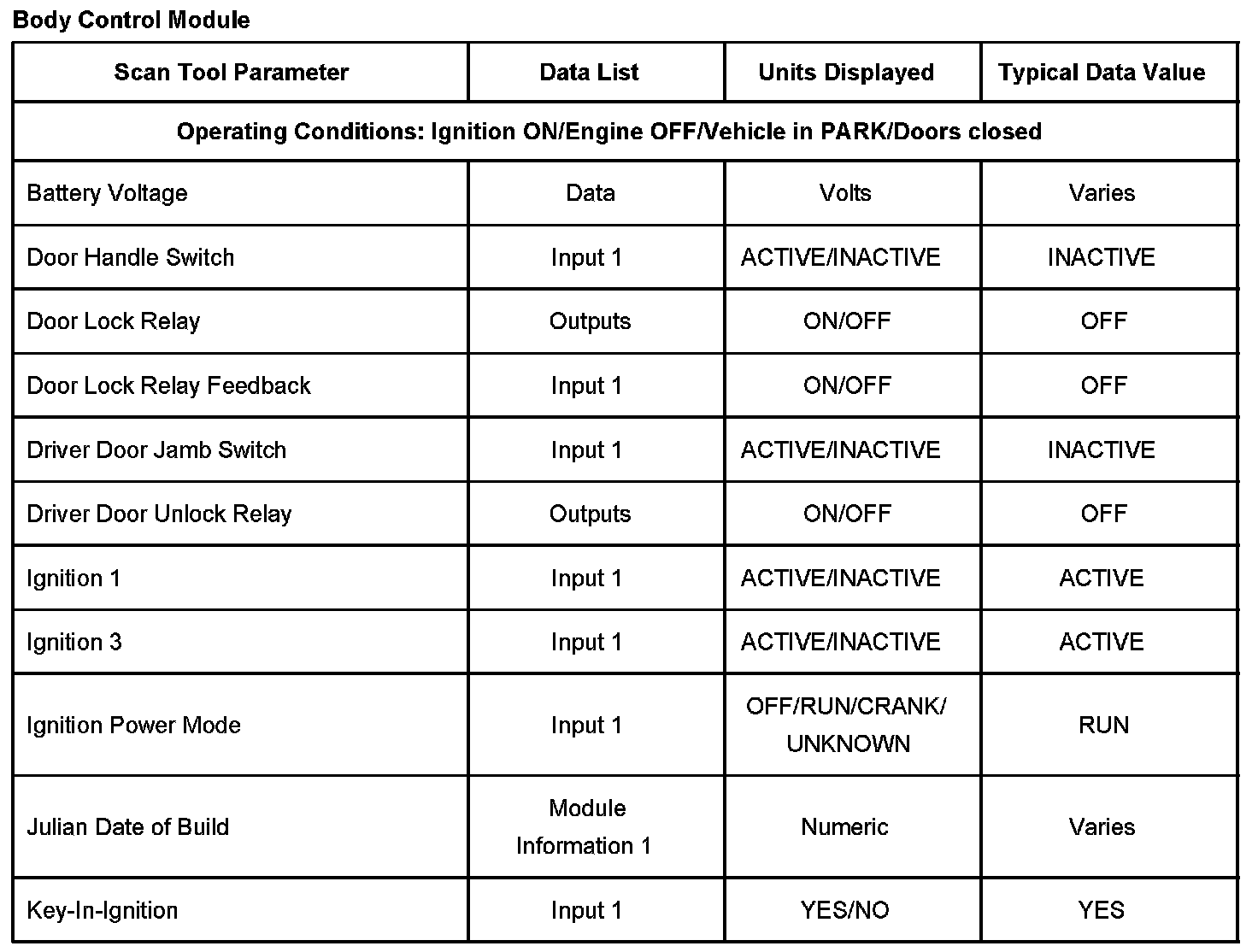

Body Control Module Scan Tool Data List Part 1:

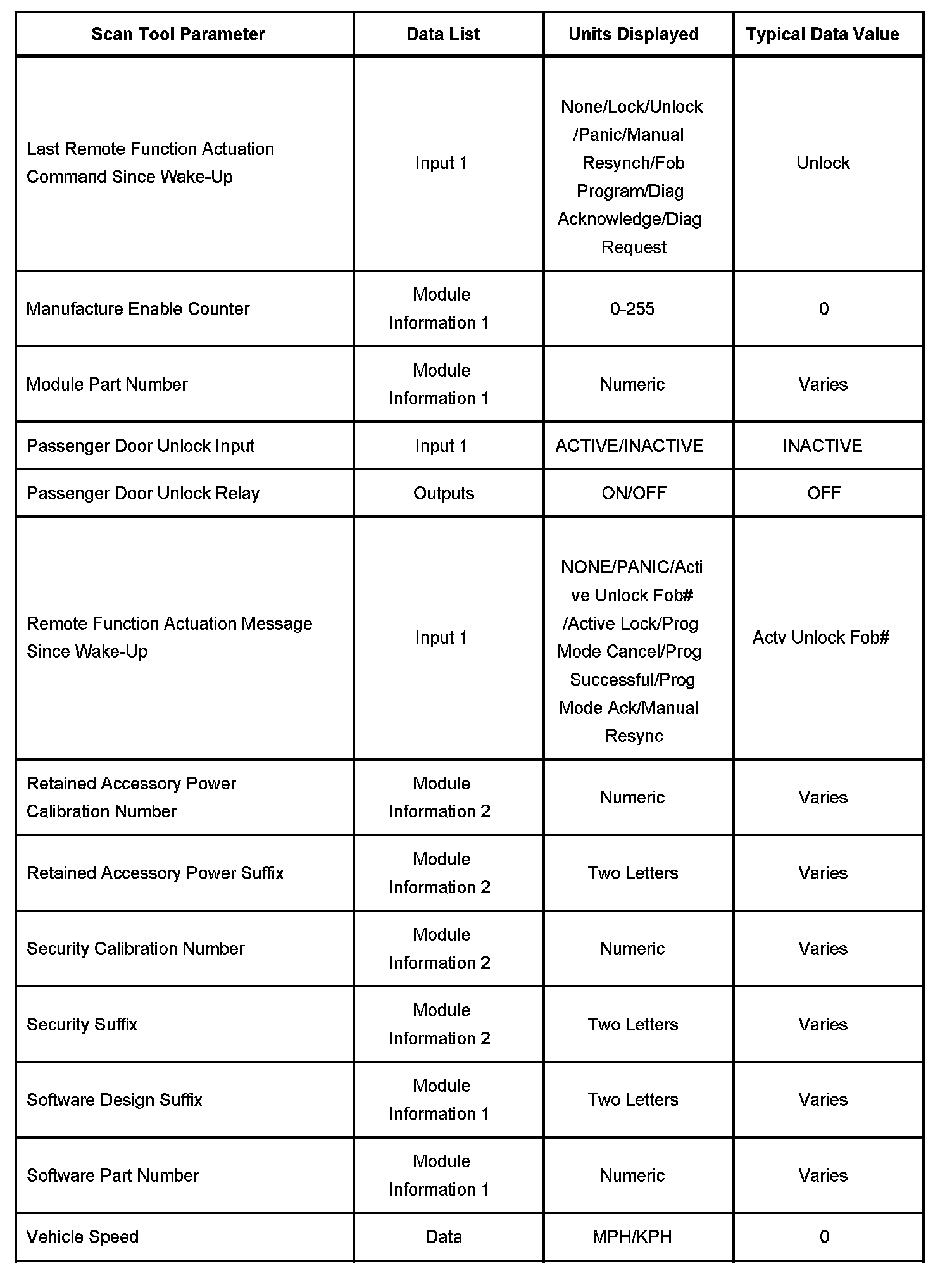

Body Control Module Scan Tool Data List Part 2:

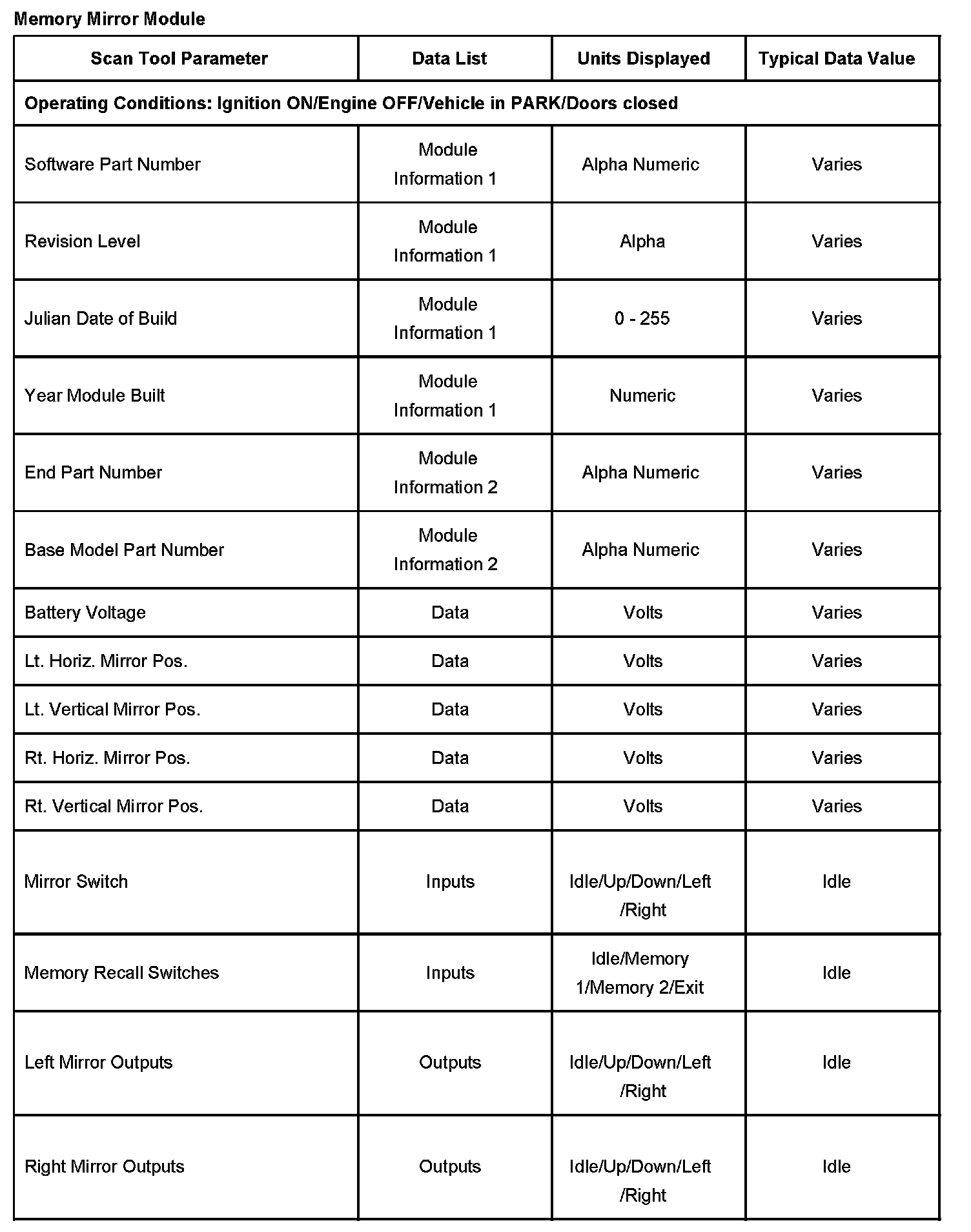

Memory Mirror Module Scan Tool Data List:
