P0121

CIRCUIT DESCRIPTION
The throttle position (TP) sensor is used by the powertrain control module (PCM) to determine the throttle plate angle for various engine management systems. The TP sensor is a potentiometer type sensor with three circuits:
- A 5-volt reference circuit
- A low reference circuit
- A TP signal circuit

The PCM provides the TP sensor with 5 volts on the reference circuit and a ground on the low reference circuit. Rotation of the TP sensor rotor from the closed throttle position to the wide open throttle (WOT) position provides the PCM with a signal voltage from less than 1 volt to greater than 4 volts through the TP sensor signal circuit. When the conditions for running this DTC are met, the PCM will use the manifold absolute pressure (MAP) sensor to determine if the predicted operating range of the TP sensor is correct. If the PCM detects the TP sensor voltage is out of the predicted range, DTC P0121 sets.

CONDITIONS FOR RUNNING THE DTC
- DTC P0106, P0107, P0108, P0122, P0123 are not set.
- The engine is running for more than 2 minutes.
- The engine coolant temperature (ECT) is more than 60°C (140° F).
- The MAP reading is less than 55 kPa for a TP sensor skewed high test.
- The MAP reading is more than 65 kPa for a TP sensor skewed low test.
- The MAP is steady for 1 second or more.

CONDITIONS FOR SETTING THE DTC
- The PCM detects that the TP sensor voltage is more than the predicted value when the MAP sensor pressure is less than 55 kPa.

OR

- The PCM detects that the TP sensor voltage is less than the predicted value when the MAP sensor pressure is more than 65 kPa.
- The above conditions are met for 15 seconds.

ACTION TAKEN WHEN THE DTC SETS
- The control module illuminates the malfunction indicator lamp (MIL) on the second consecutive ignition cycle that the diagnostic runs and fails.
- The control module records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the control module stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive ignition cycle, the control module records the operating conditions at the time of the failure. The control module writes the operating conditions to the Freeze Frame and updates the Failure Records.

CONDITIONS FOR CLEARING THE MIL/DTC
- The control module turns OFF the malfunction indicator lamp (MIL) after 3 consecutive ignition cycles that the diagnostic runs and does not fail.
- A current DTC, Last Test Failed, clears when the diagnostic runs and passes.
- A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic.
- Clear the MIL and the DTC with a scan tool.

TEST

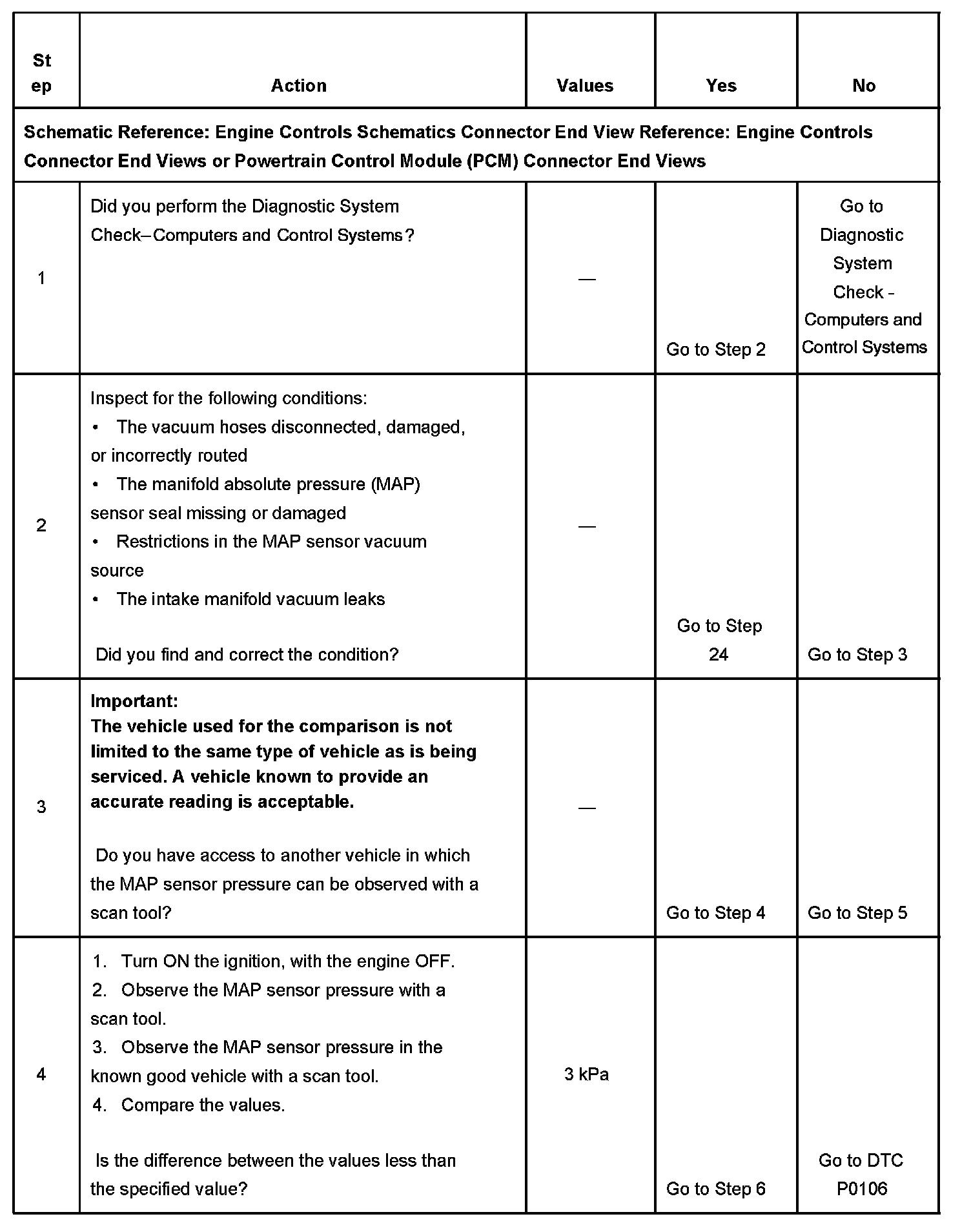

Steps 1-4:

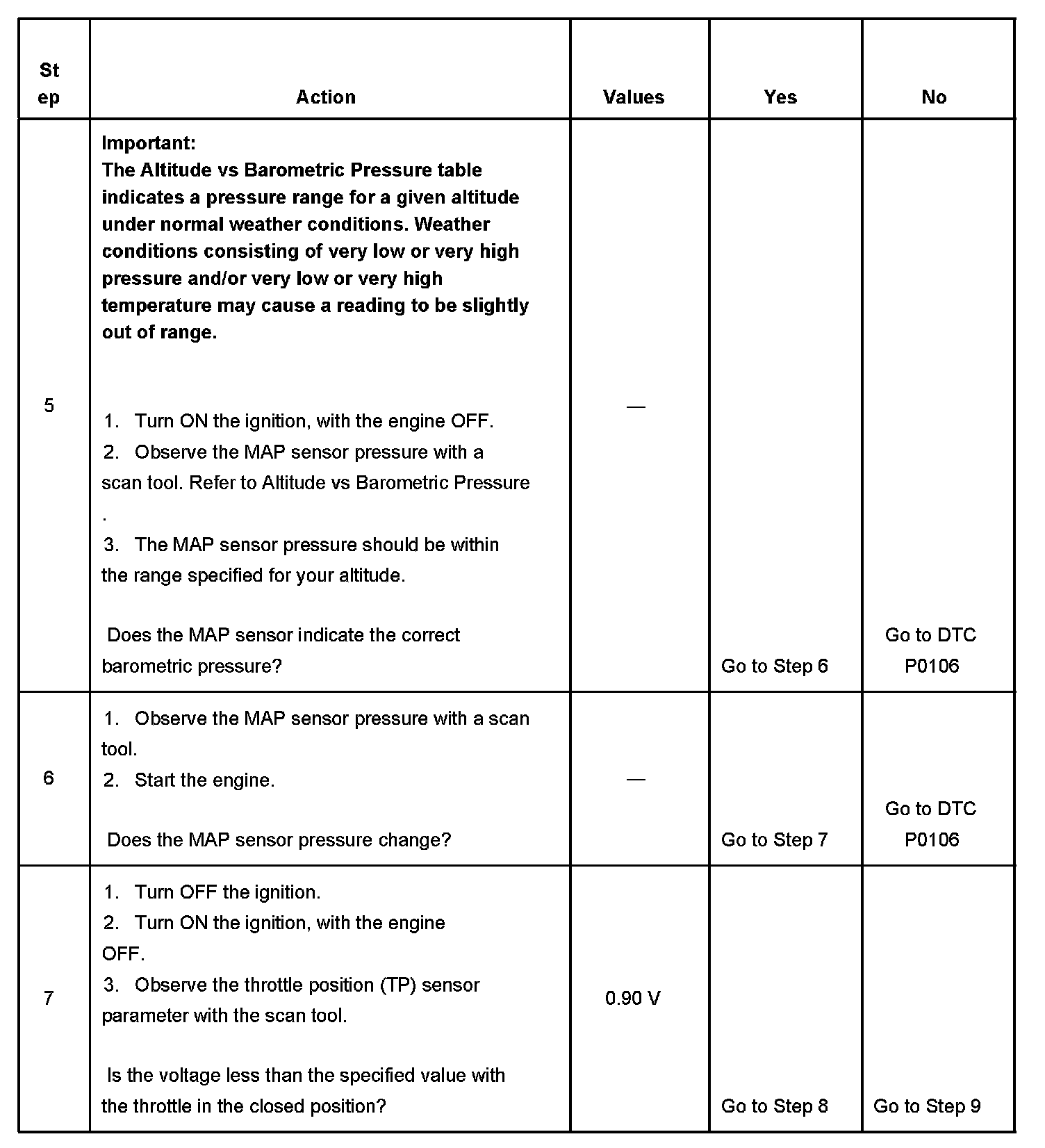

Steps 5-7:

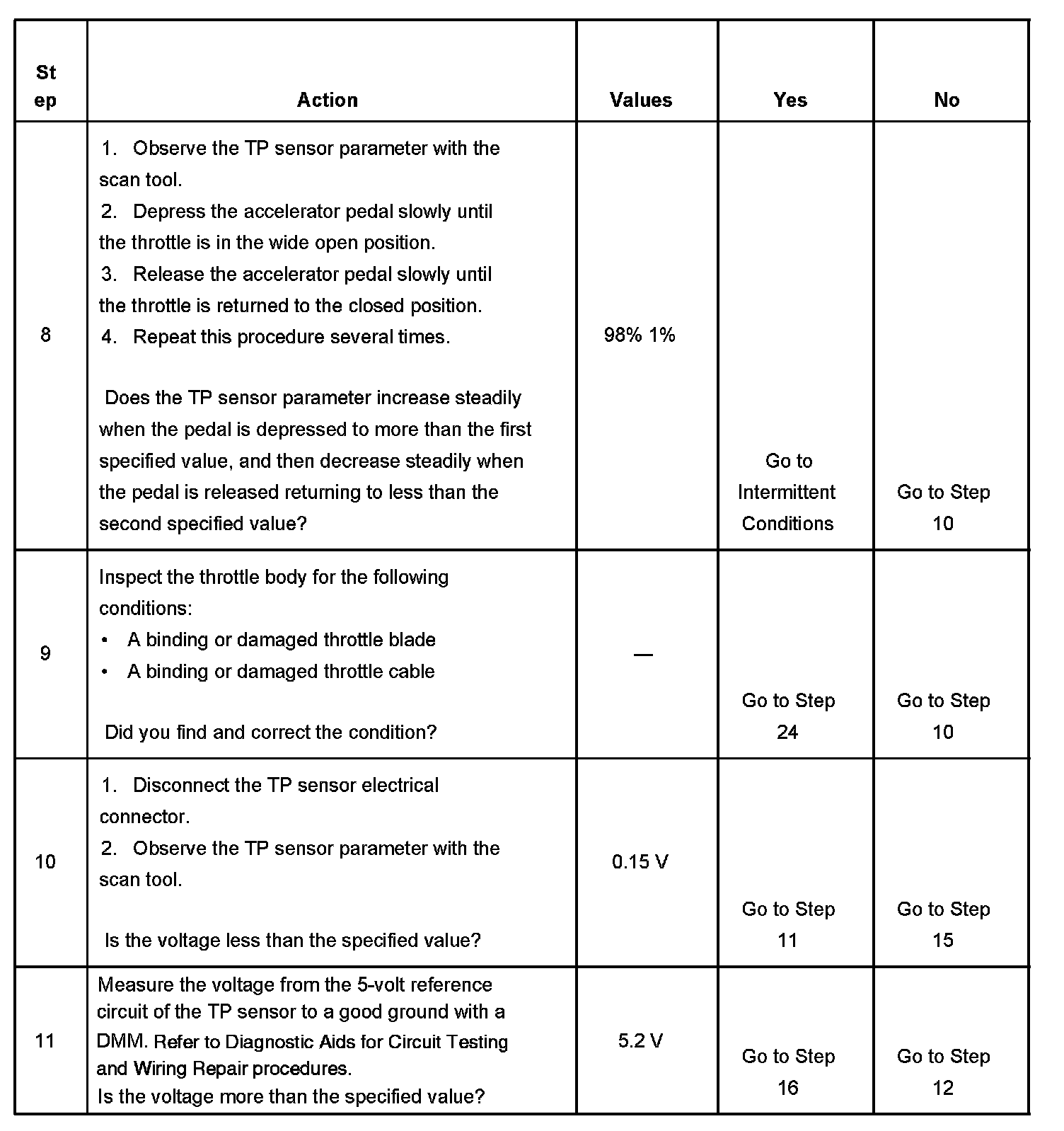

Steps 8-11:

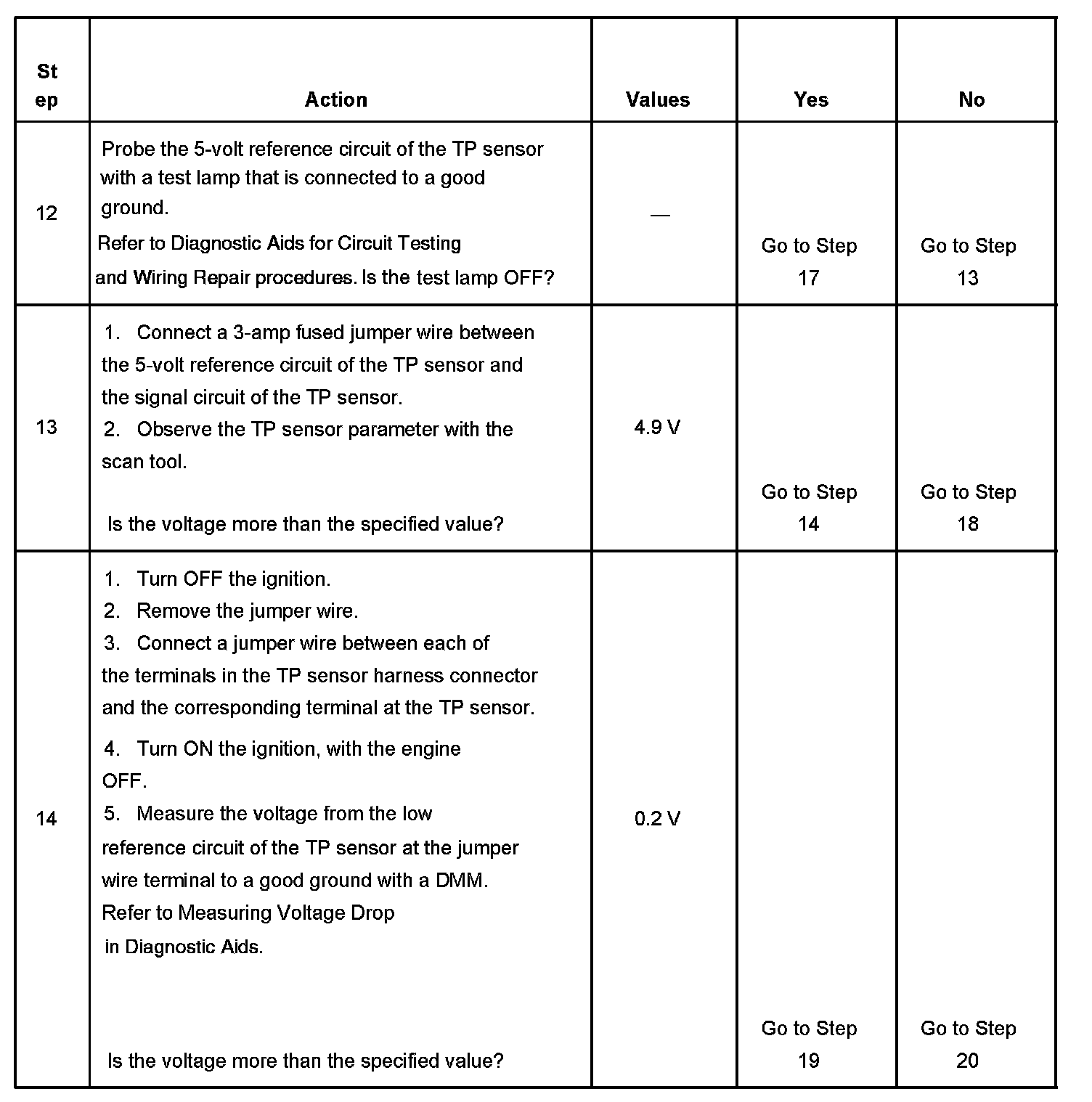

Steps 12-14:

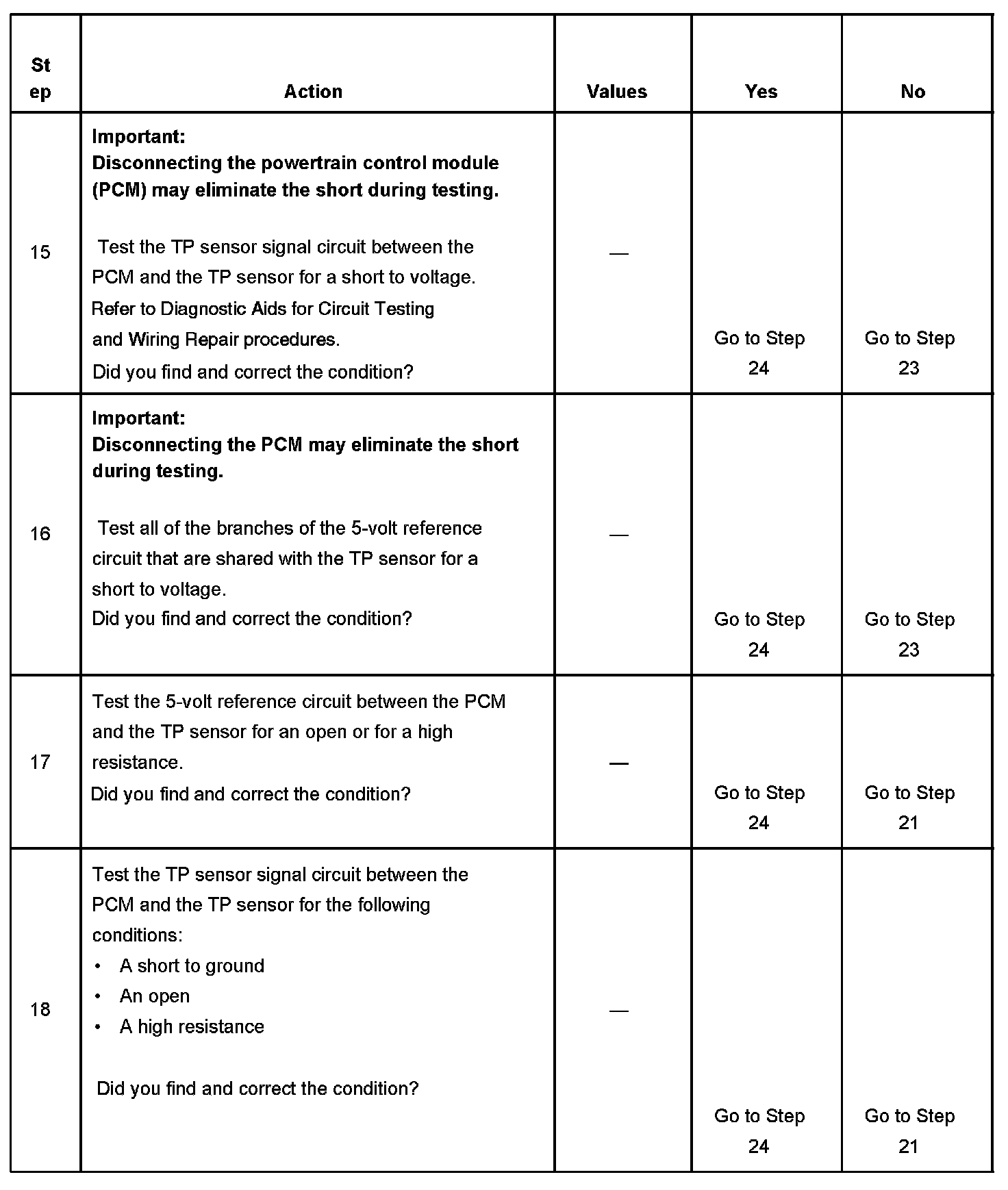

Steps 15-18:

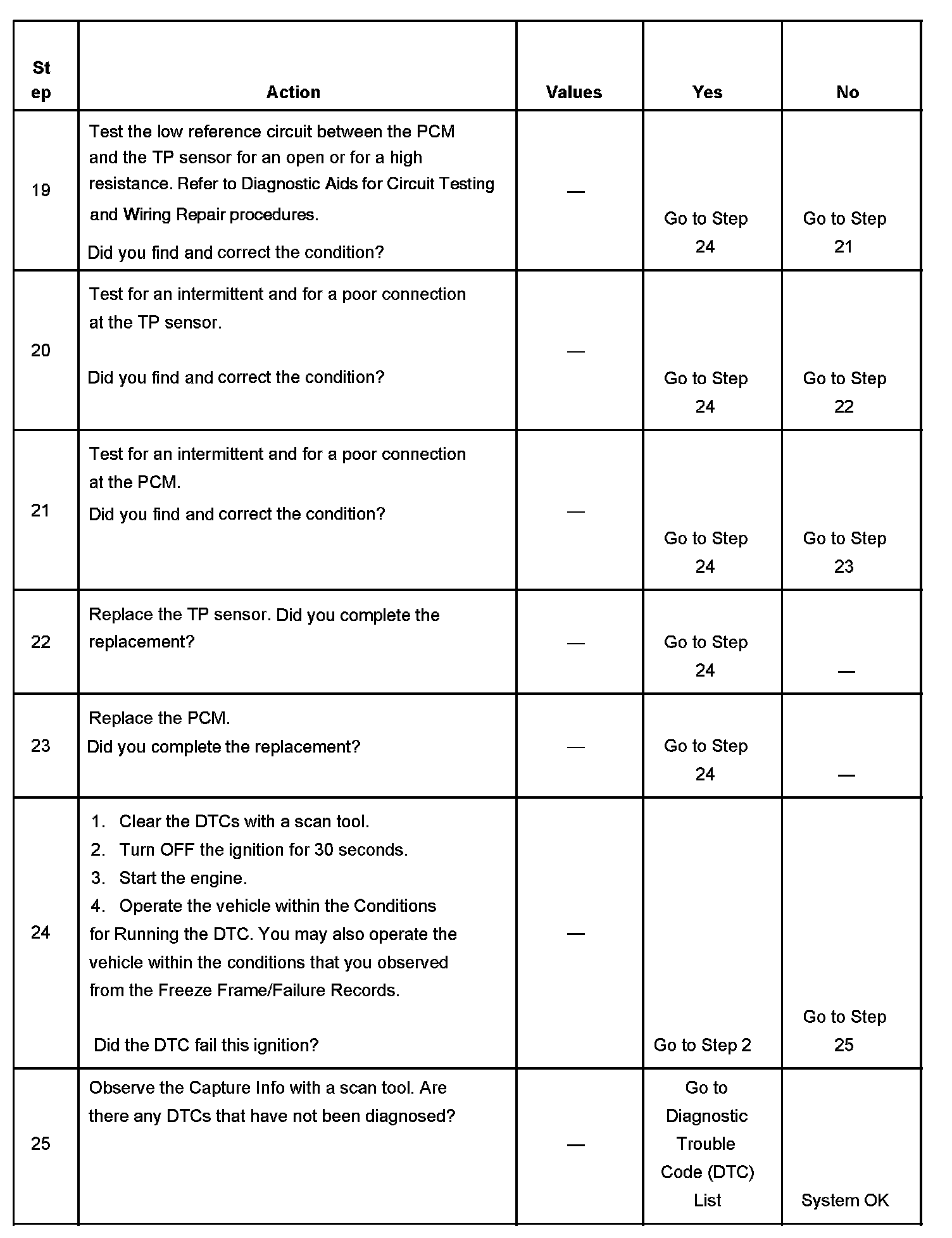

Steps 19-25:
