B2470

DTC B2470

CIRCUIT DESCRIPTION
The Cellular Antenna is connected to the Vehicle Communication Interface Module with a RG-58 coax cable. The Vehicle Communication Interface Module polls the data from the cellular antenna once every second.

CONDITIONS FOR RUNNING THE DTC
- The ignition must be in the RUN or ACC position.
- The system voltage is at least 9.5 volts and no more than 15.5 volts.
- All the above conditions are present for greater than 1 second.

CONDITIONS FOR SETTING THE DTC
- The Vehicle Communication Interface Module does not detect a cellular signal.
- All the above conditions are present for greater than 1 second.

ACTION TAKEN WHEN THE DTC SETS
- The OnStar(R) status LED turns RED.
- The vehicle is unable to connect to the OnStar(R) Call Center.

CONDITIONS FOR CLEARING THE DTC
- The Vehicle Communication Interface Module detects the presence of a Cellular Antenna.
- A history DTC clears after 50 malfunction free ignition cycles.
- The Vehicle Communication Interface Module receives the clear DTC command from the scan tool.

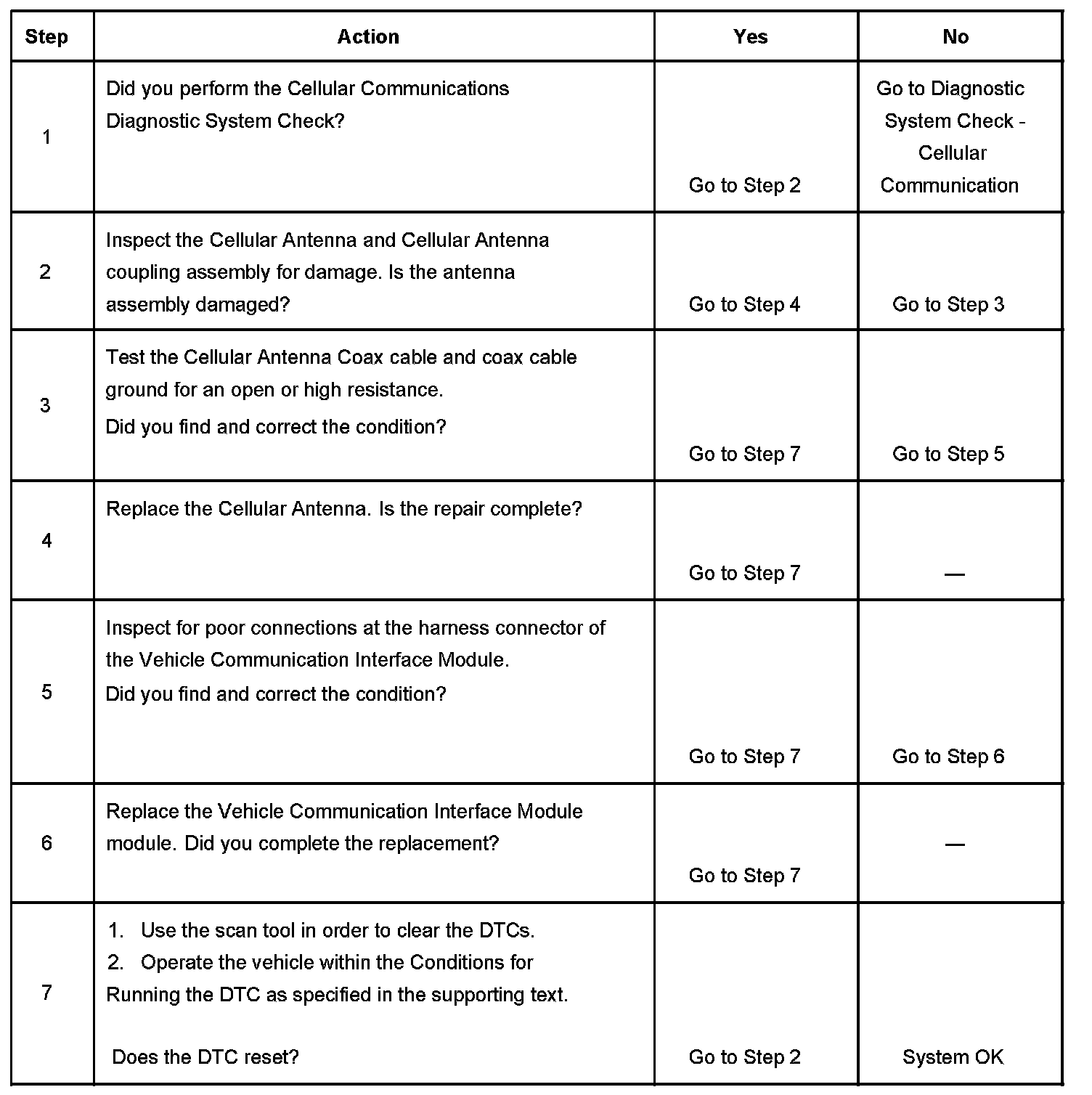

TEST DESCRIPTION

Steps 1-7:

The number(s) below refer to the step number(s) on the diagnostic table.
2. This step tests the condition of the Cellular Antenna.
3. This step tests the condition of the cellular antenna coax and for proper ground of the cellular antenna.
