System Specifications

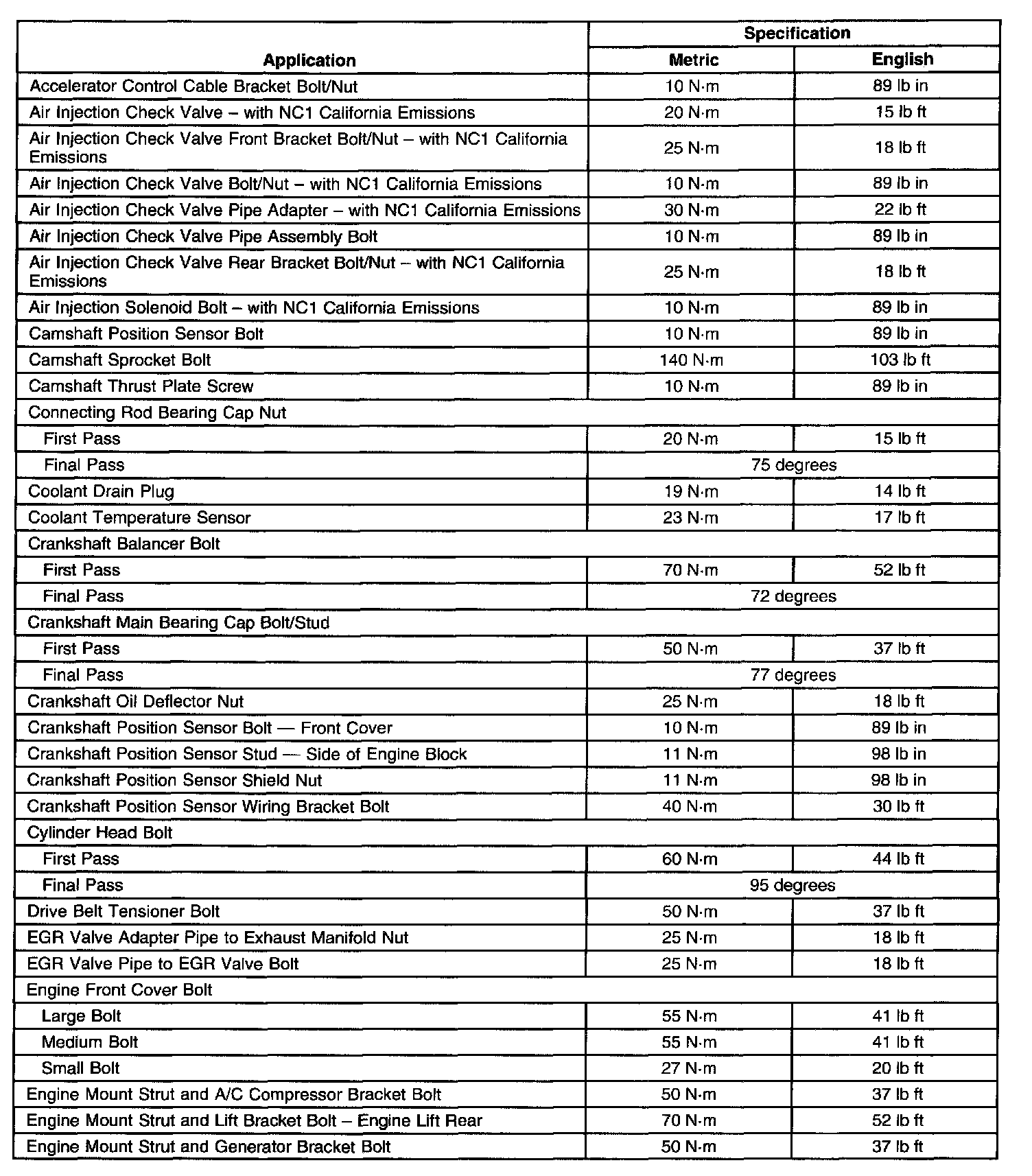

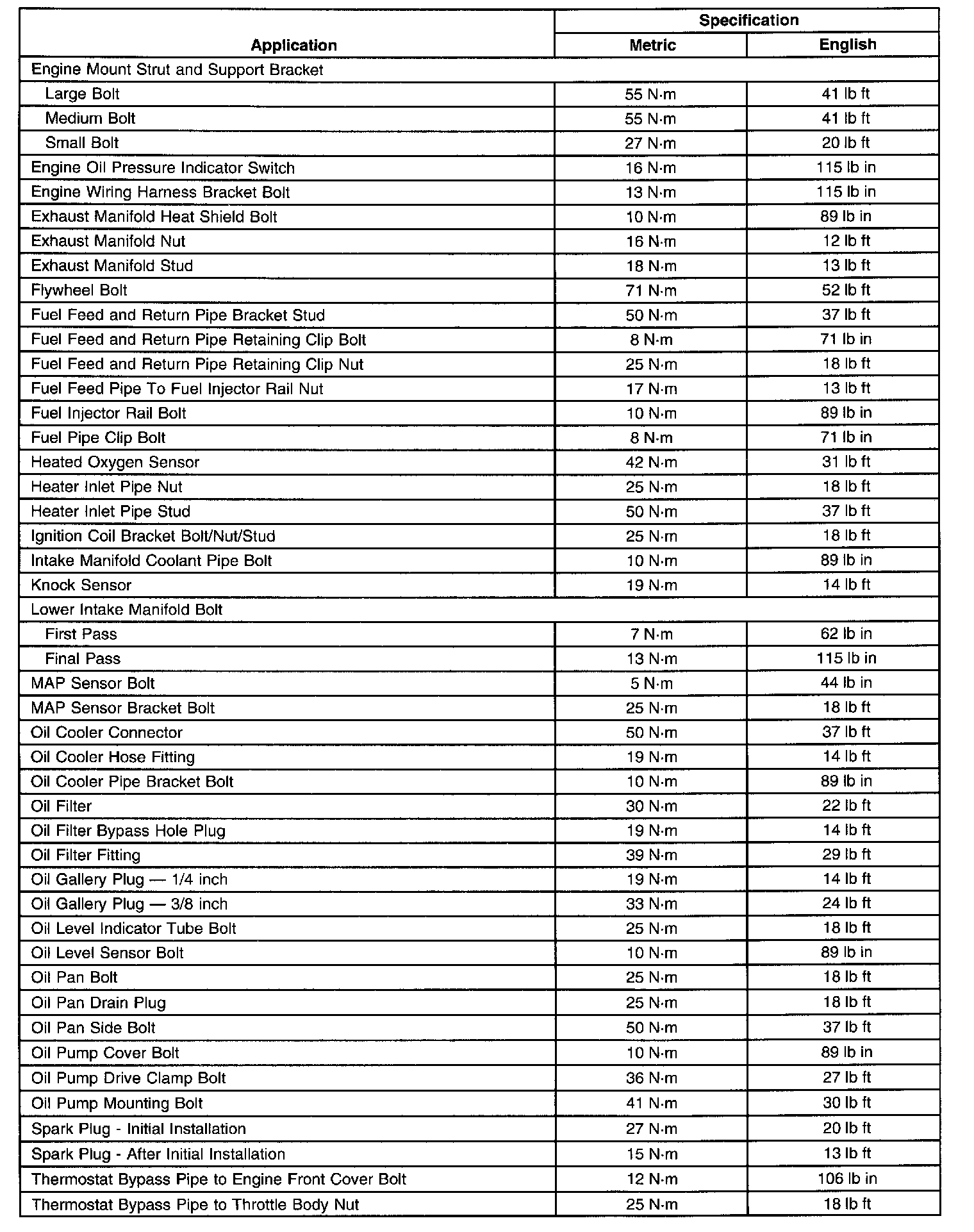

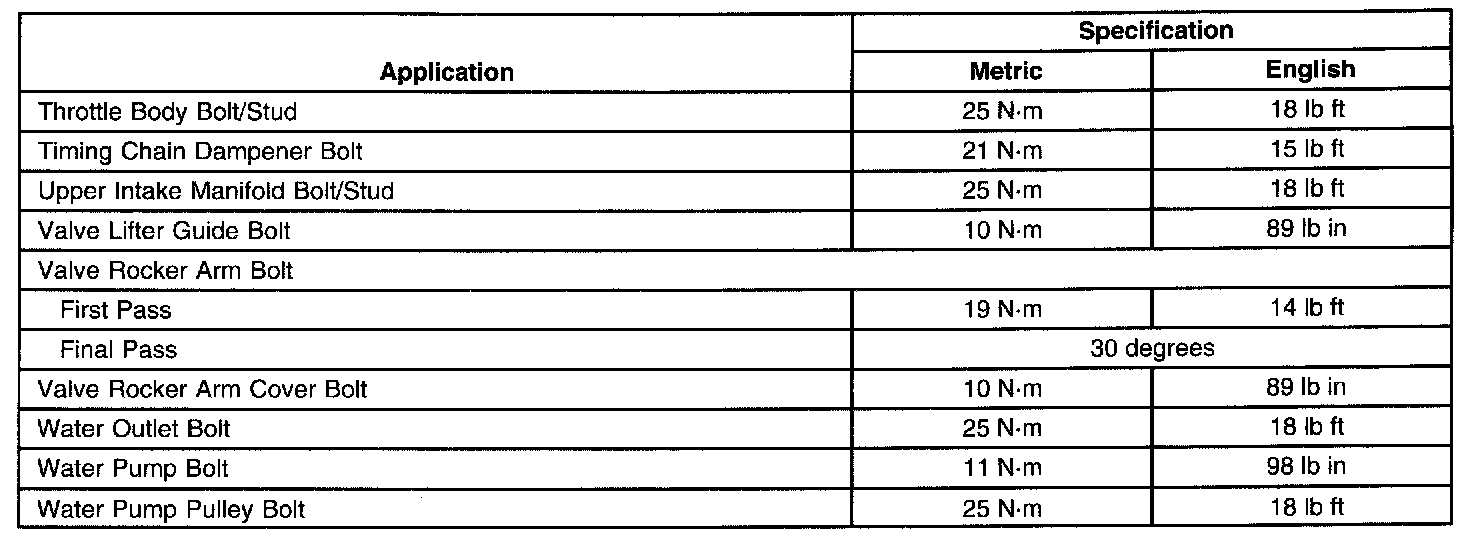

Fastener Tightening Specifications











general/Overhaul

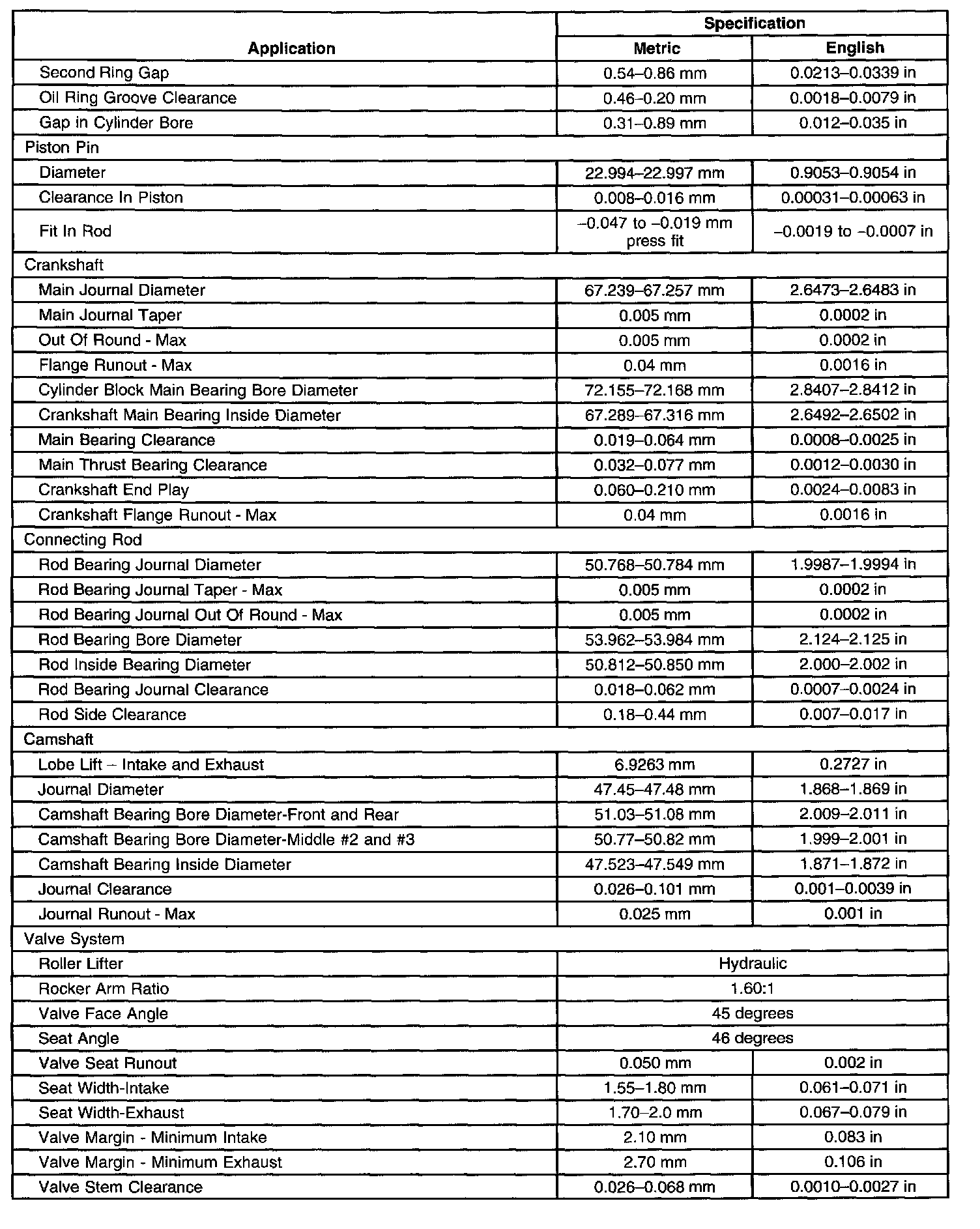

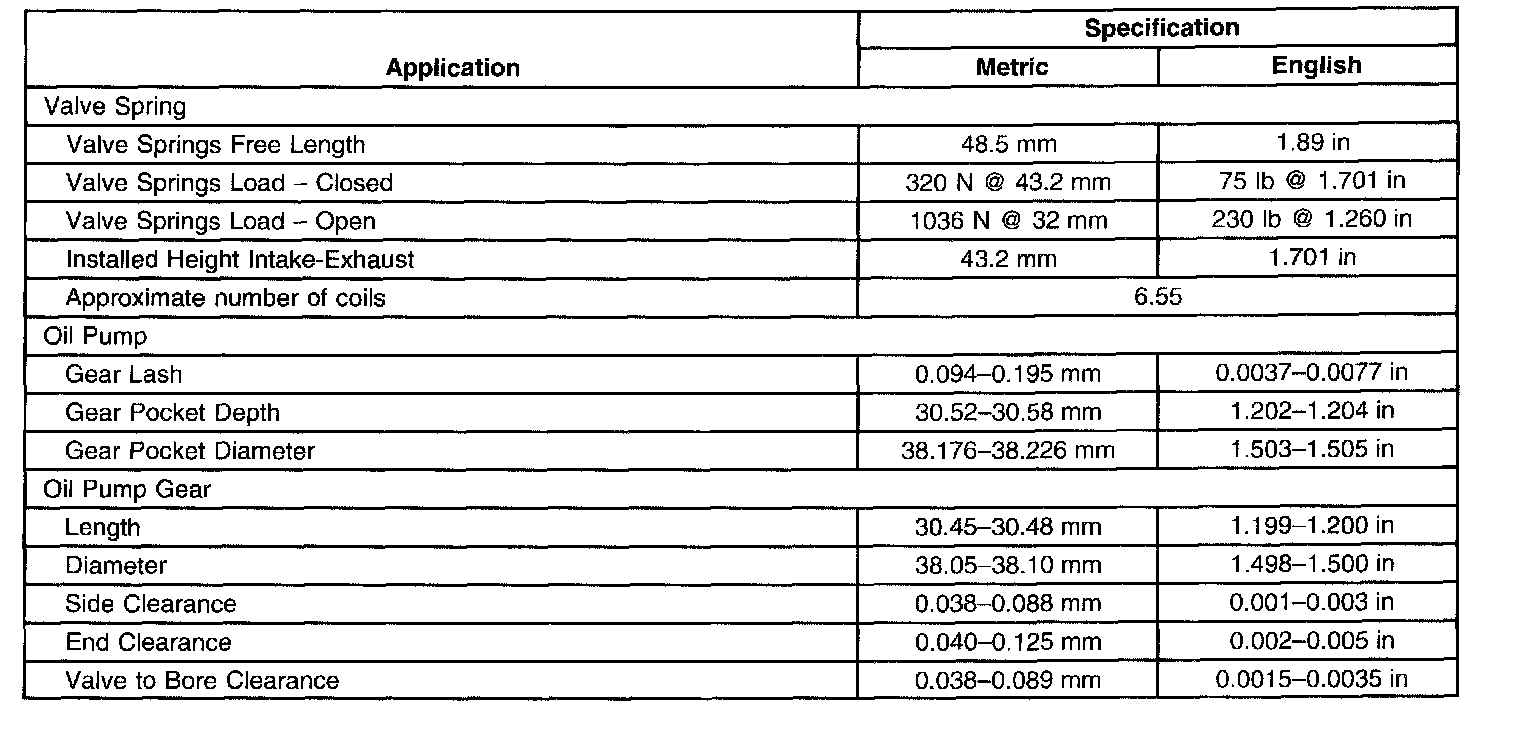

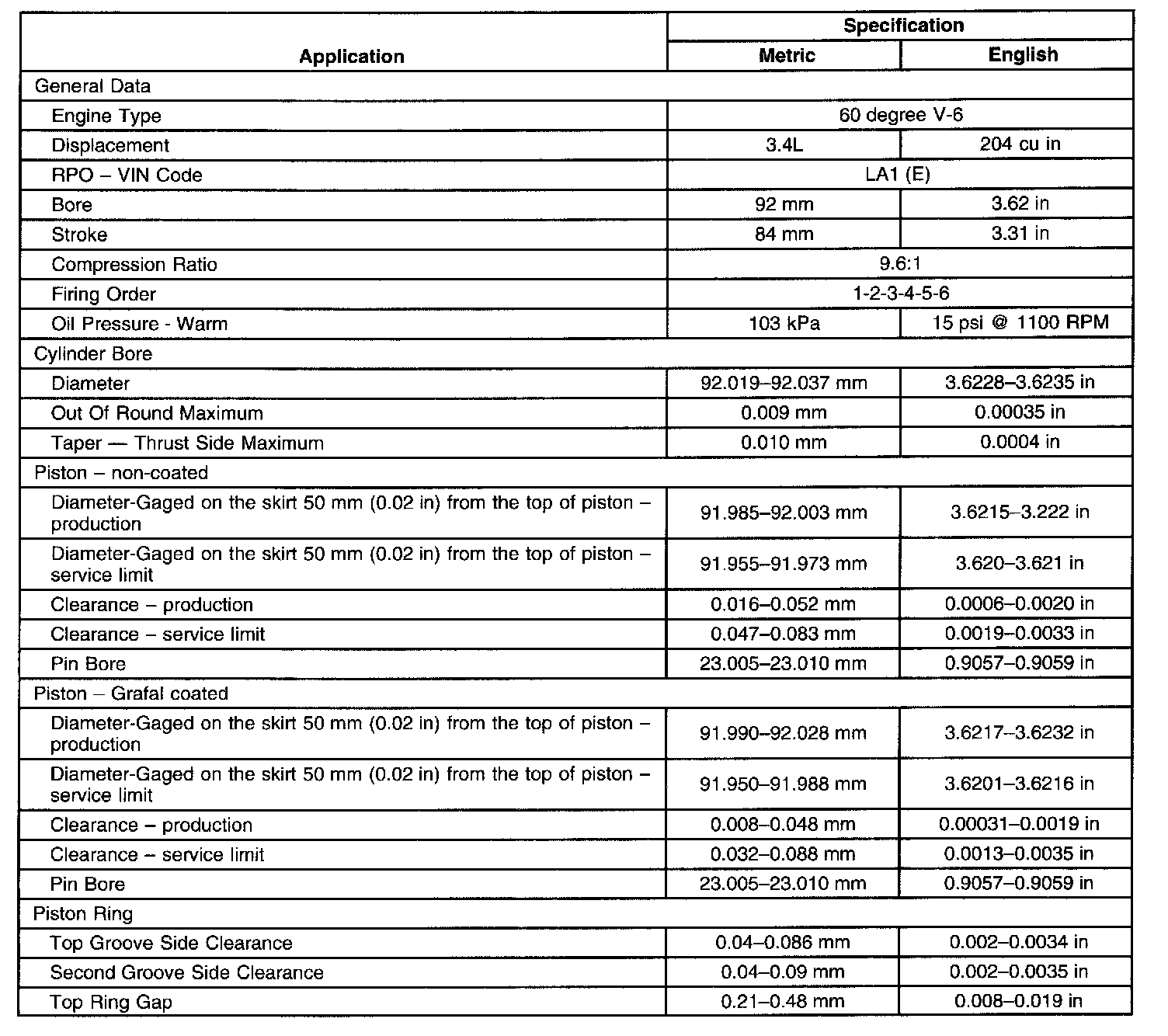

Engine Mechanical Specifications

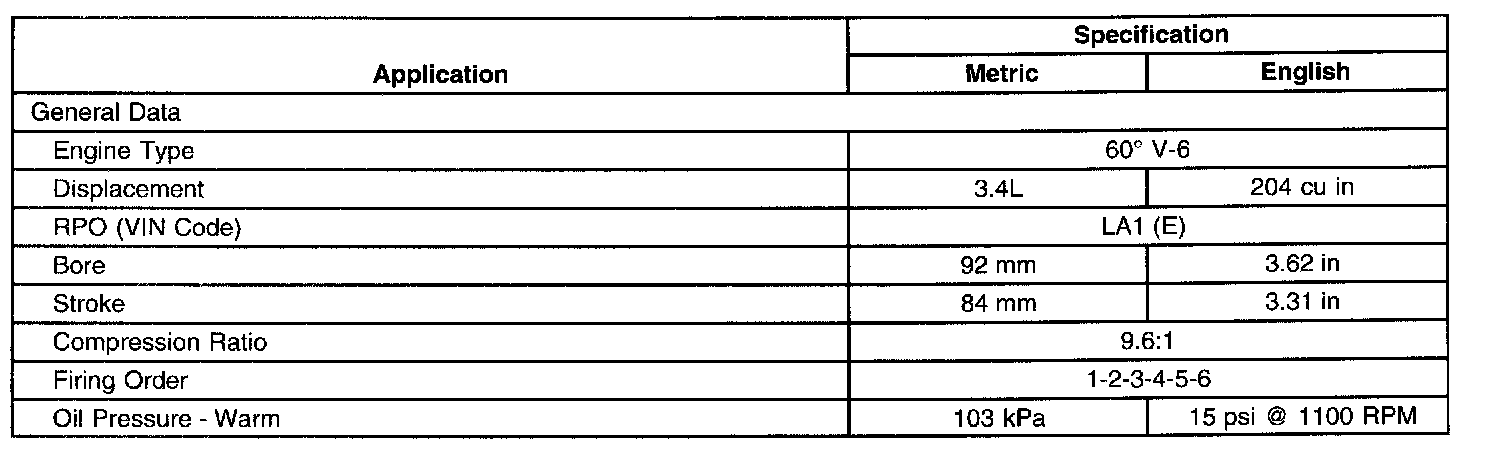

General











Overhaul

Tightening Sequence

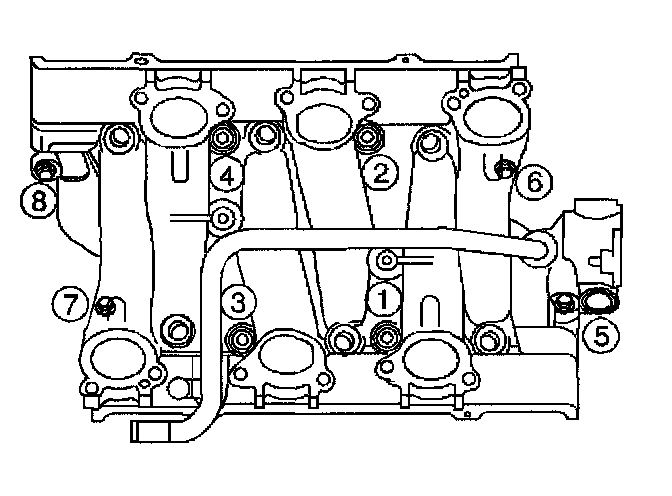

Lower Intake Manifold
Refer to the Lower Intake Manifold Intake Manifold Replacement - Lower

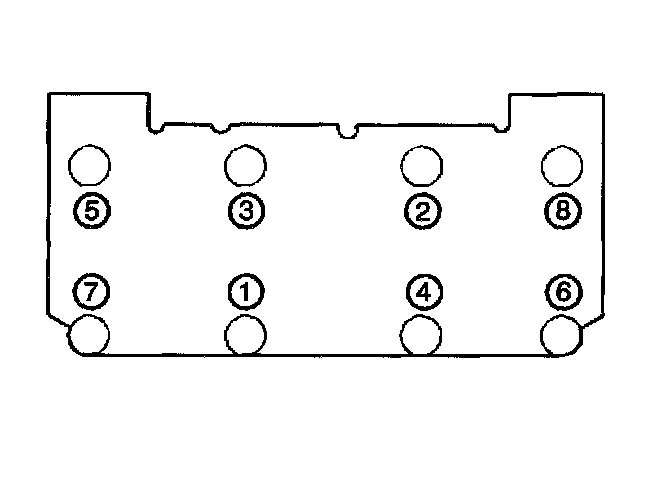

Cylinder Head
Refer to the Cylinder Head Service and Repair
