Specifications
>>
Mechanical Specifications
>>
Differential Assembly
Differential Assembly
Rear Drive Axle

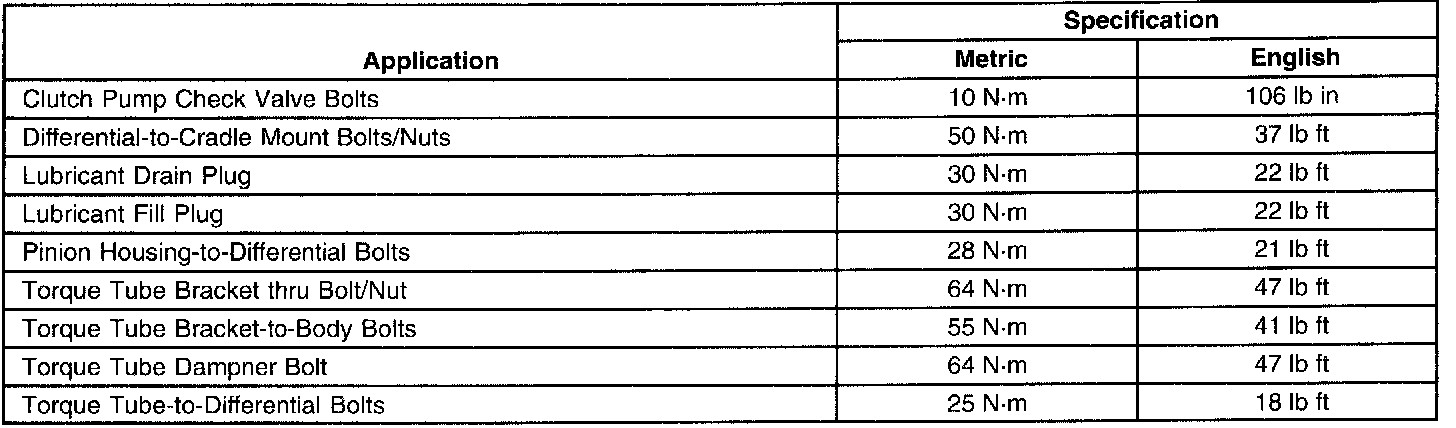

Fastener Tightening Specifications

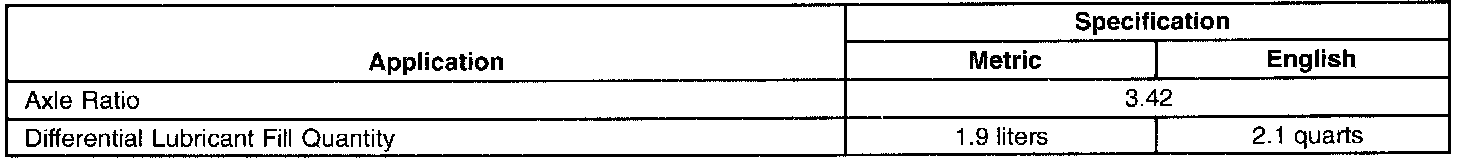

Differential Carrier Assembly Specifications
