Automatic Transmission/Transaxle
Automatic Transaxle - 4T65-E
Transmission Fluid Temperature {TFT) Sensor Specifications

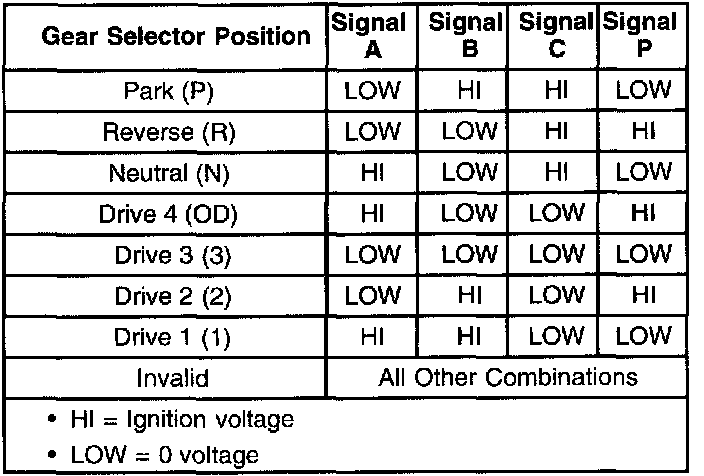

Transmission Fluid Pressure (TFP) Manual Valve Position Switch Logic

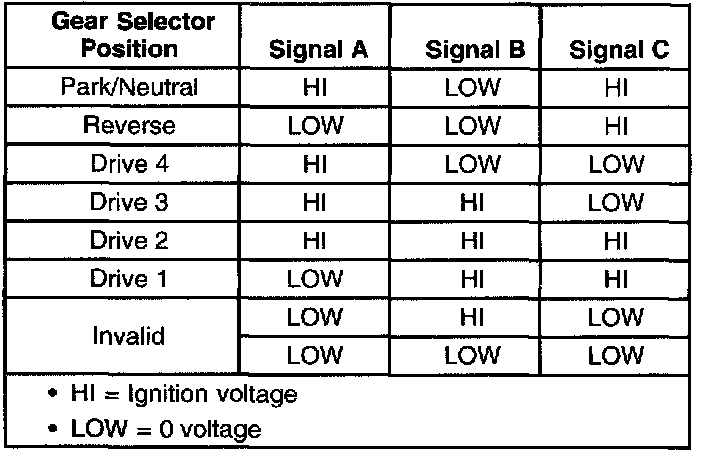

Transmission Range Switch Logic

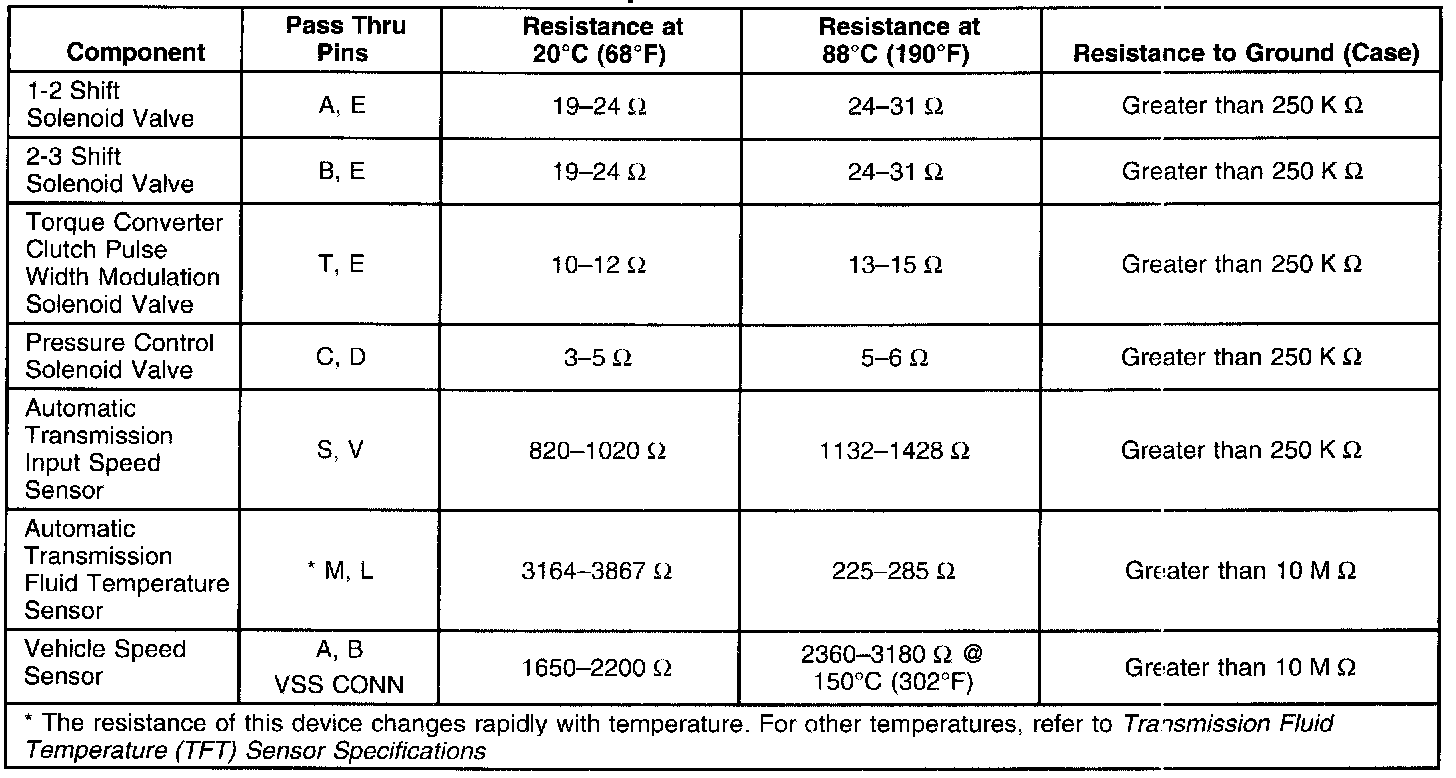

Component Resistance
Line Pressure
