Home >> Chevy Truck >> 2002 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations >> Component Locations >> LF of Engine Compartment

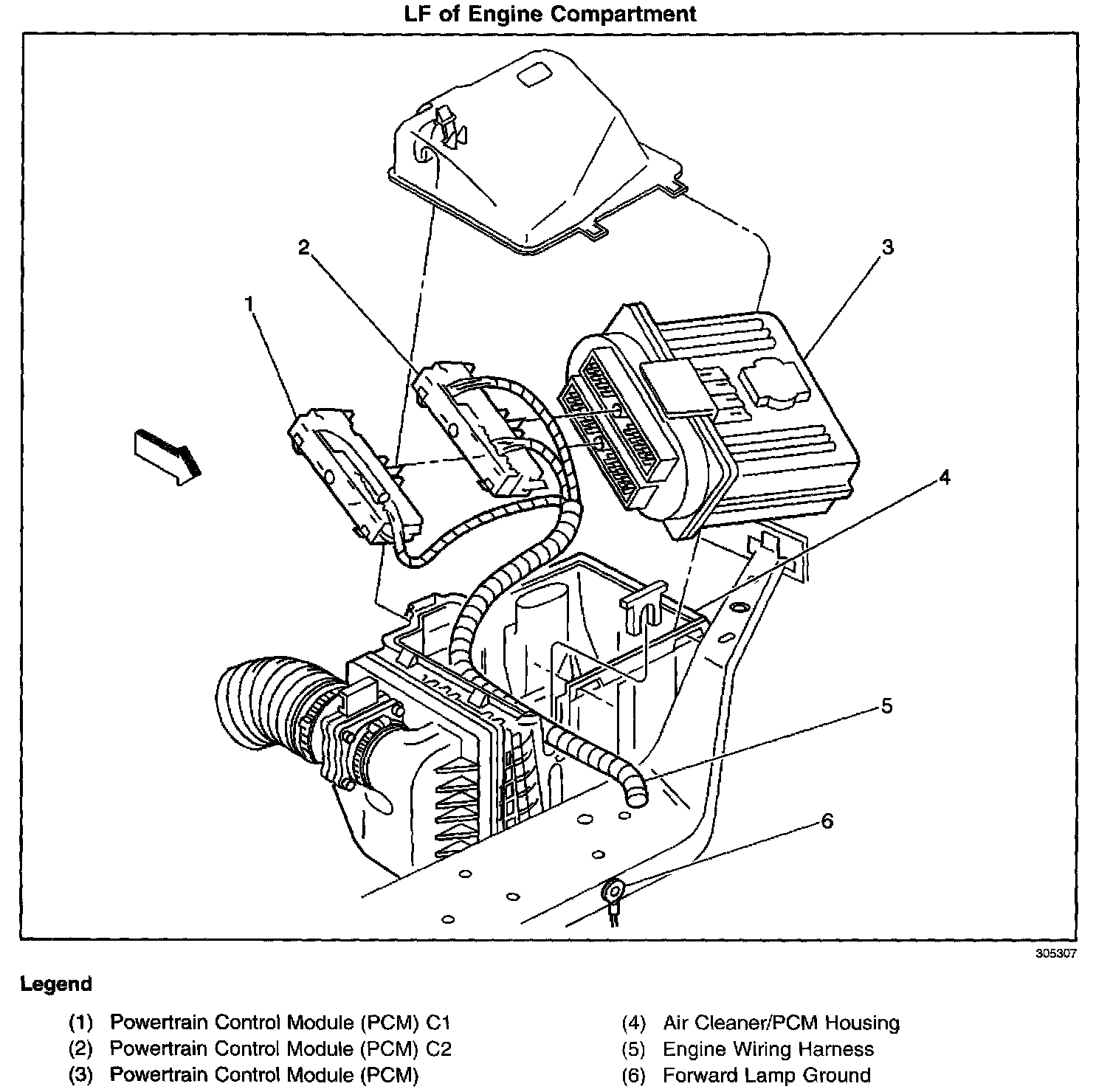

LF of Engine Compartment

Locations View:
