Home >> Chevy Truck >> 2002 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Power and Ground Distribution >> Application and ID >> I/P Application Table

I/P Application Table

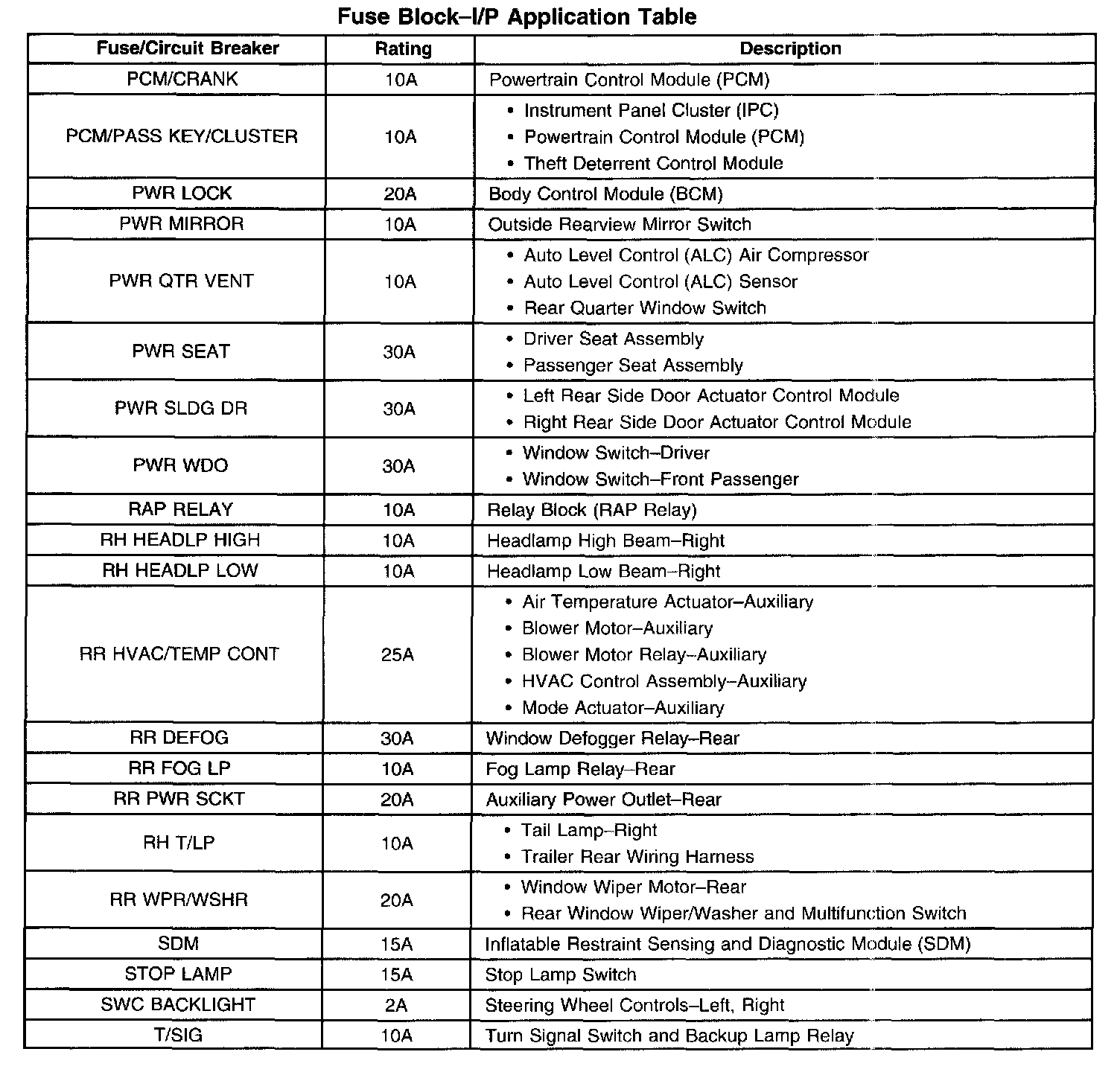

Fuse Block - I/P Application Table Part 1:



Fuse Block - I/P Application Table Part 2:
