Chevy Truck
>>
2002
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Locations
>>
Component Locations
>>
Modules
>>
Right Sliding Door Module
Right Sliding Door Module

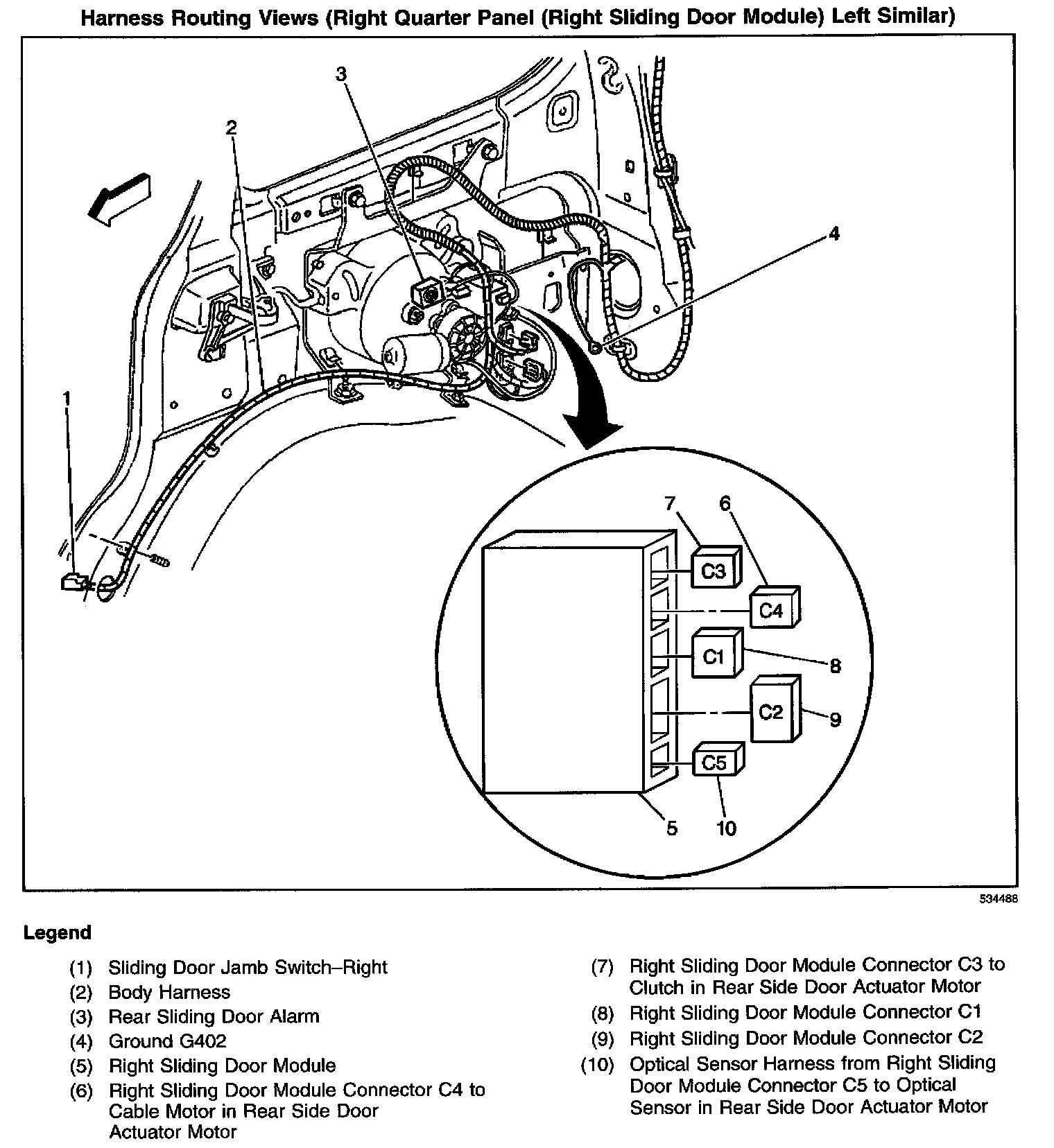

Harness Routing Views (Right Quarter Panel (Right Sliding Door Module) Left Similar):
