Rear Video/Audio/HVAC Module
Rear Video/Audio/HVAC Module
Rear Video/Audio/HVAC Module - C1:

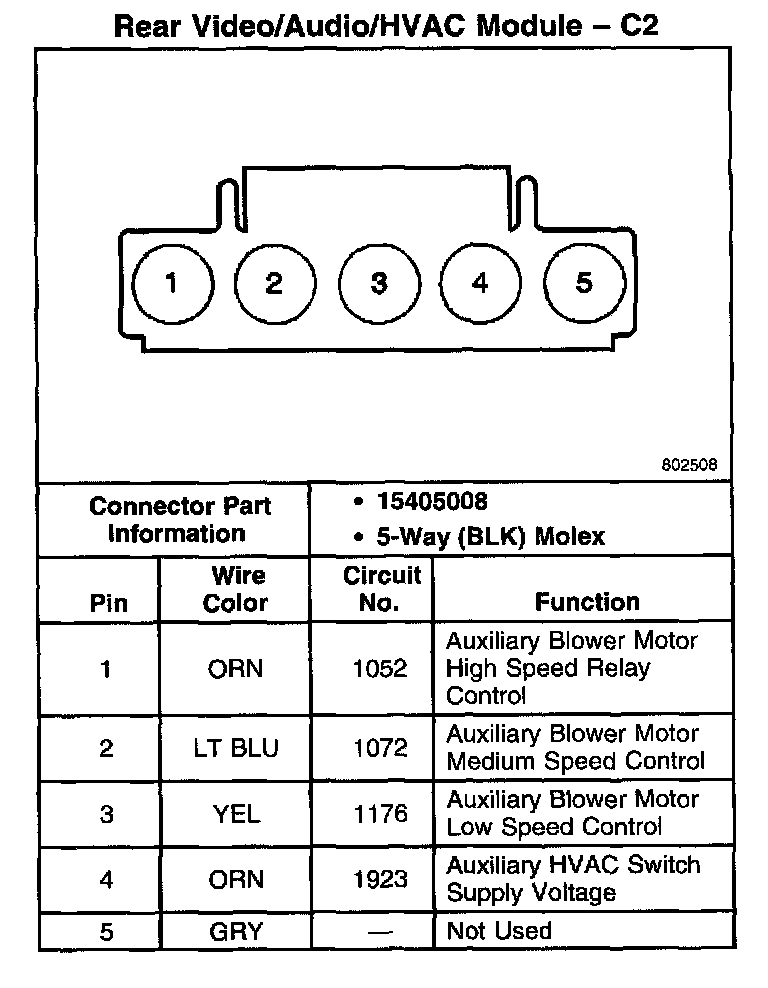

Rear Video/Audio/HVAC Module - C2:

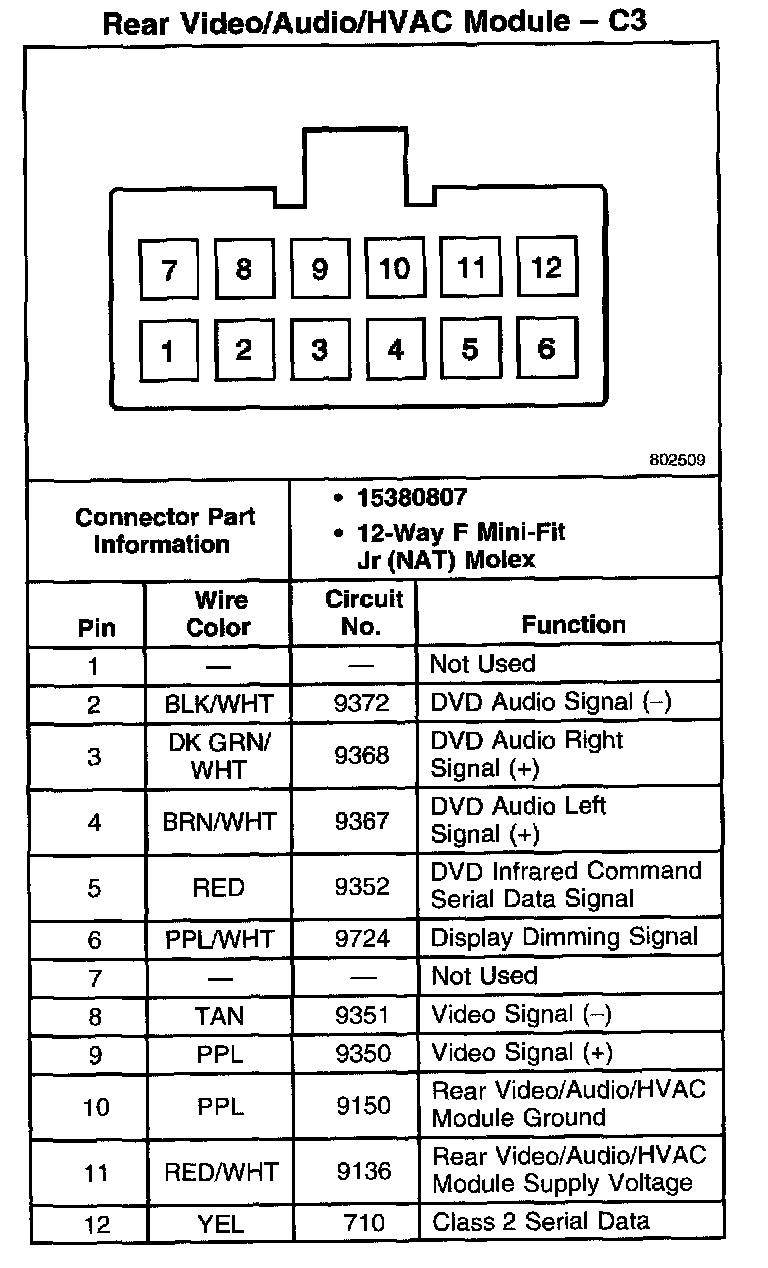

Rear Video/Audio/HVAC Module - C3:
