Combination Switch

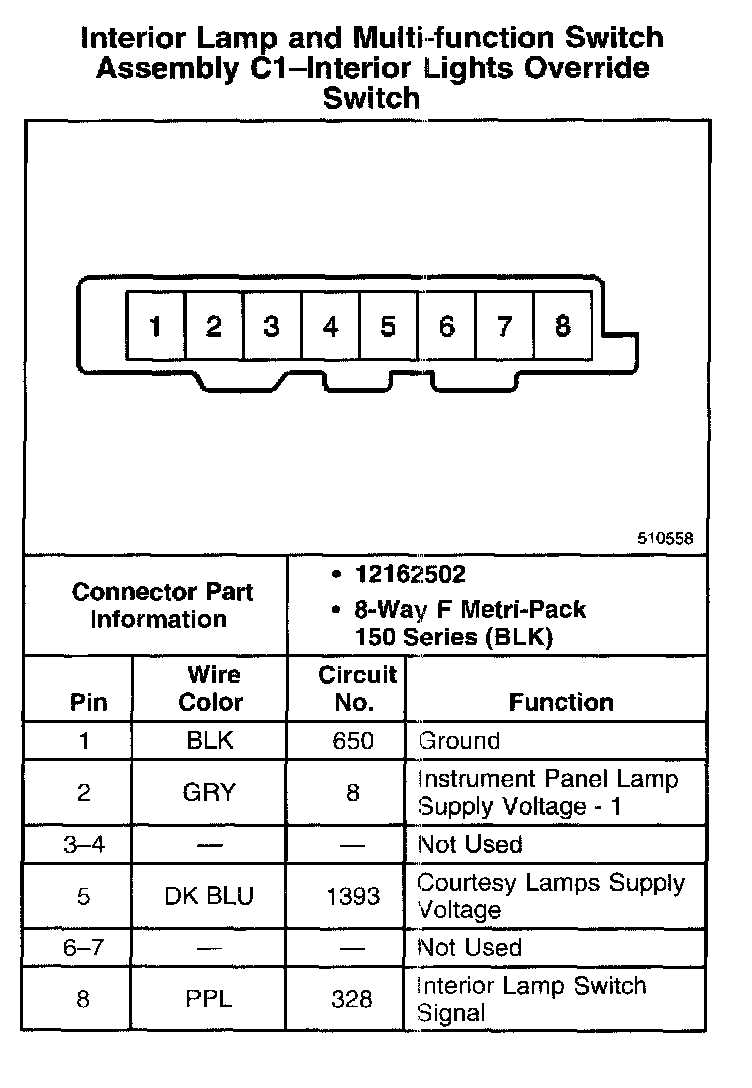

Interior Lamp And Multi-function Switch Assembly C1-Interior Lights Override Switch:

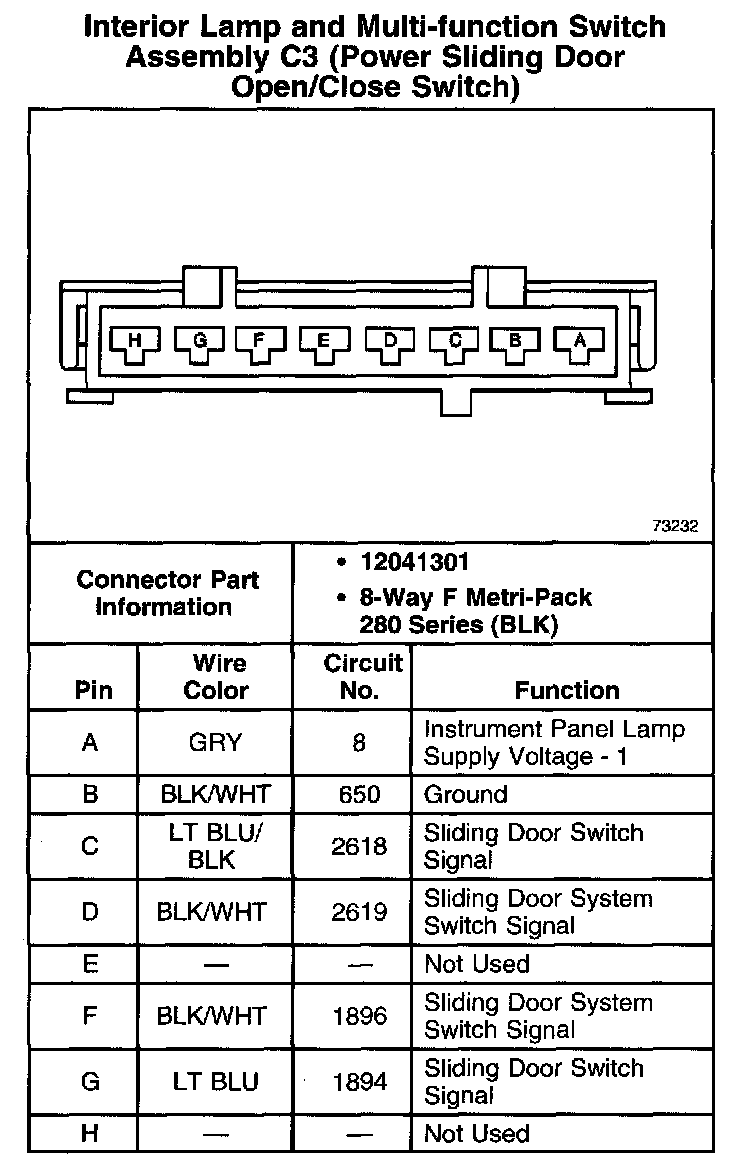

Interior Lamp And Multi-function Switch Assembly C3 (Power Sliding Door Open/Close Switch):

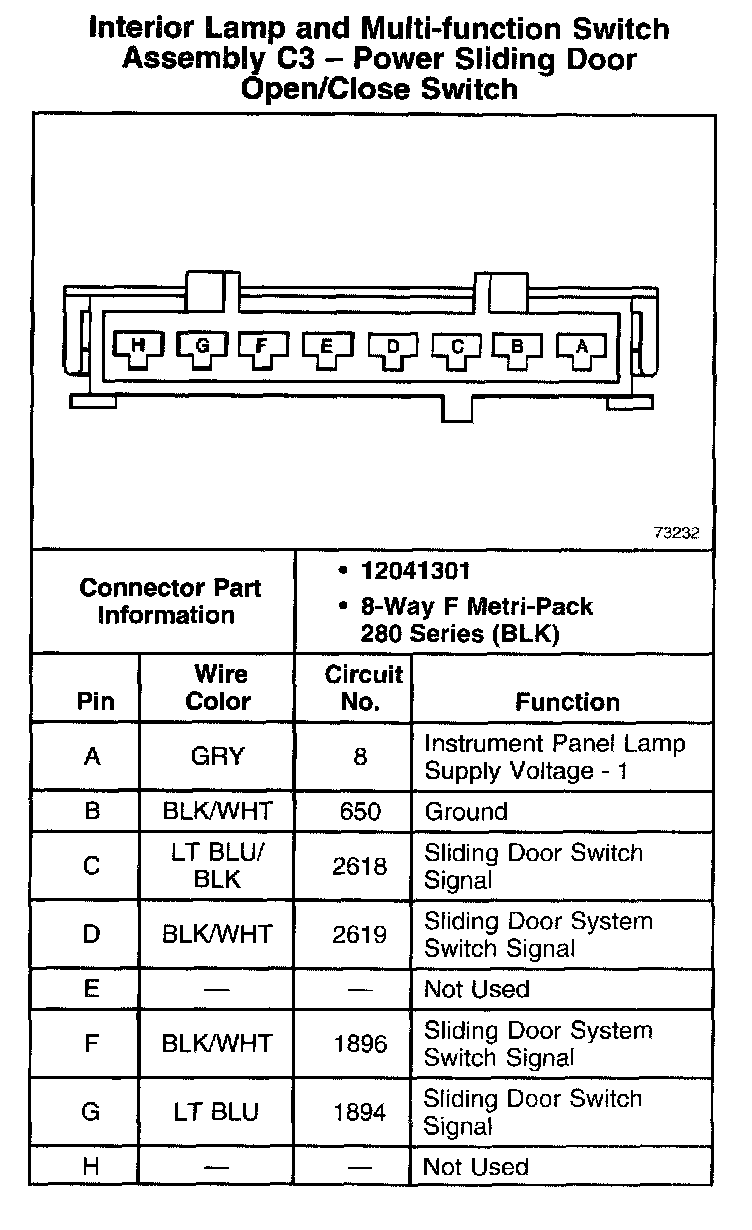

Interior Lamp And Multi-function Switch Assembly C3 - Power Sliding Door Open/Close Switch:

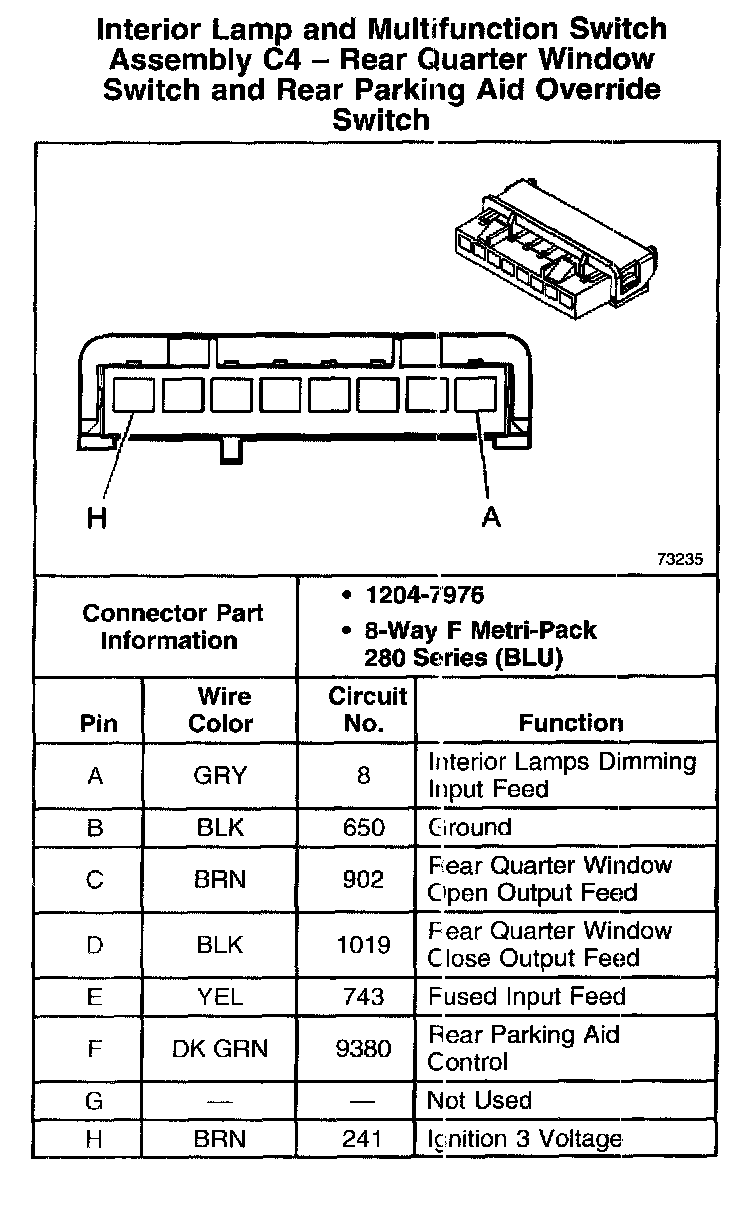

Interior Lamp And Multifunction Switch Assembly C4 - Rear Quarter Window Switch And Rear Parking Aid Override Switch:
