Power Trunk / Liftgate Lock Switch

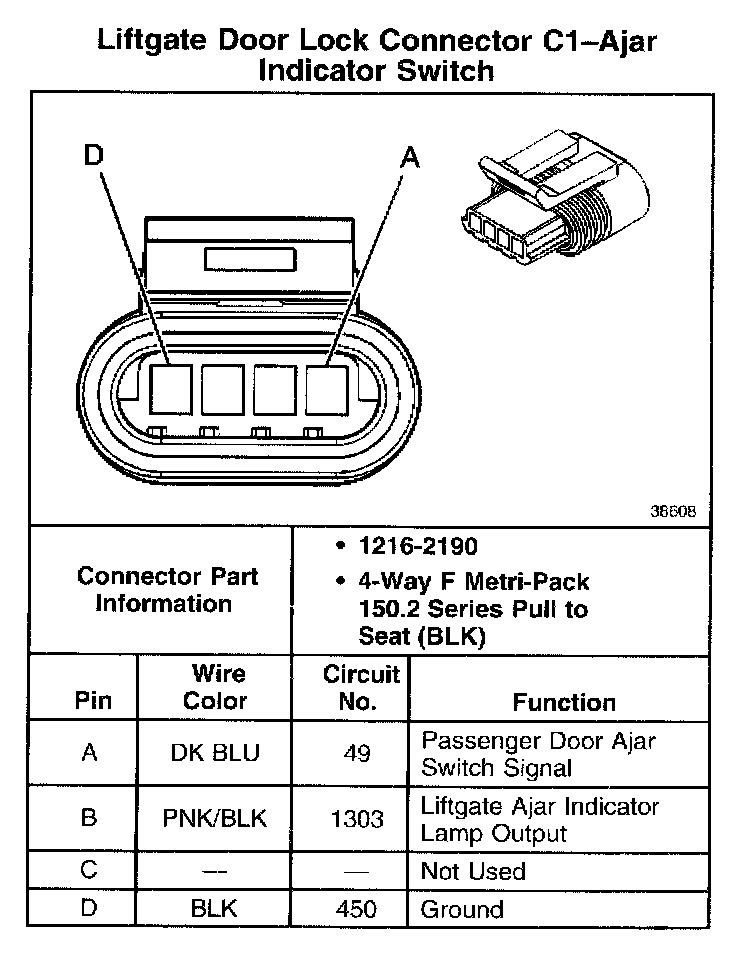

Liftgate Door Lock Connector C1-Ajar Indicator Switch:



Liftgate Door Lock Cylinder Switch:
