Power Seat Control Module
Power Seat Control Module

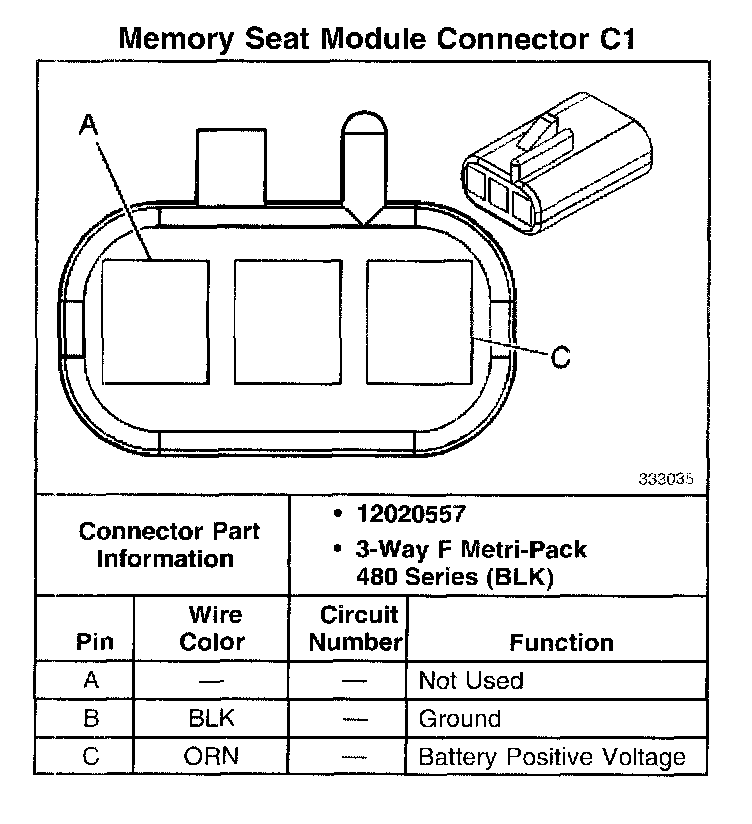

Memory Seat Module Connector C1:

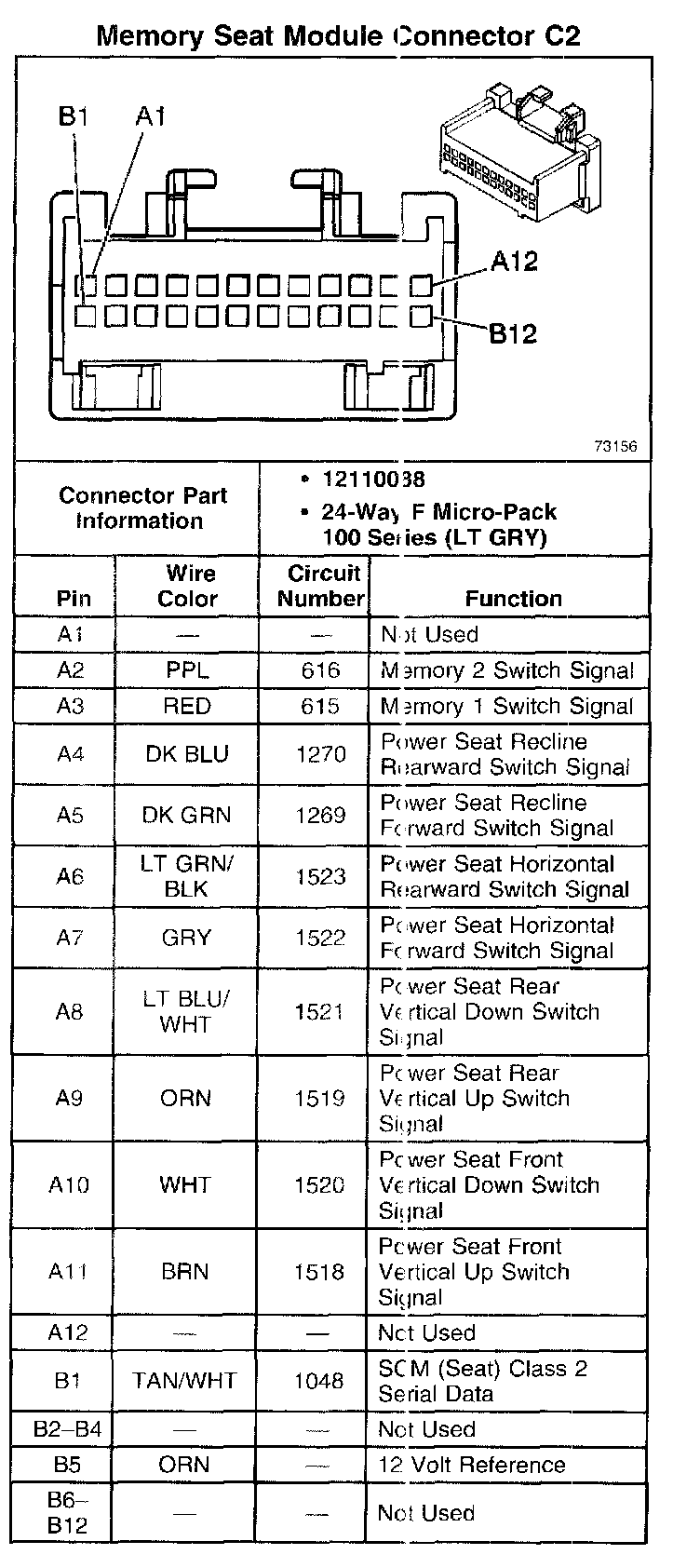

Memory Seat Module Connector C2:

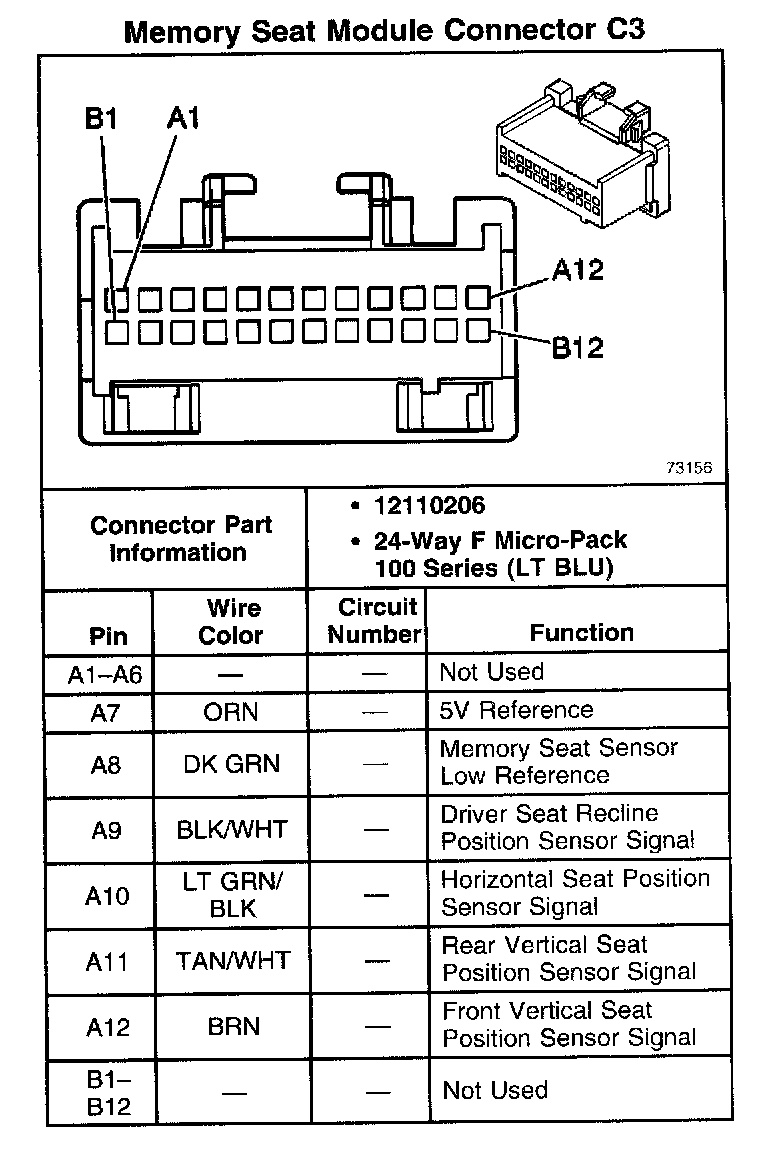

Memory Seat Module Connector C3:

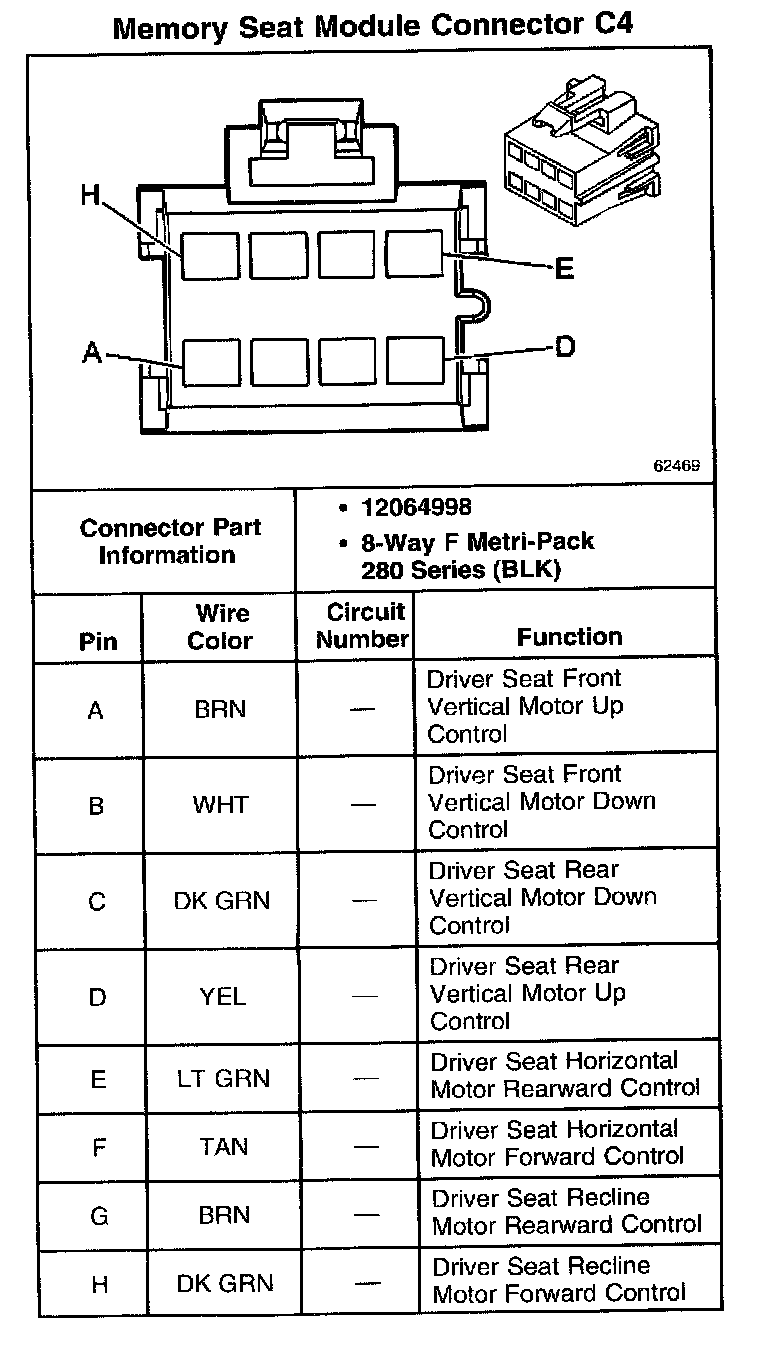

Memory Seat Module Connector C4:
