Map Light

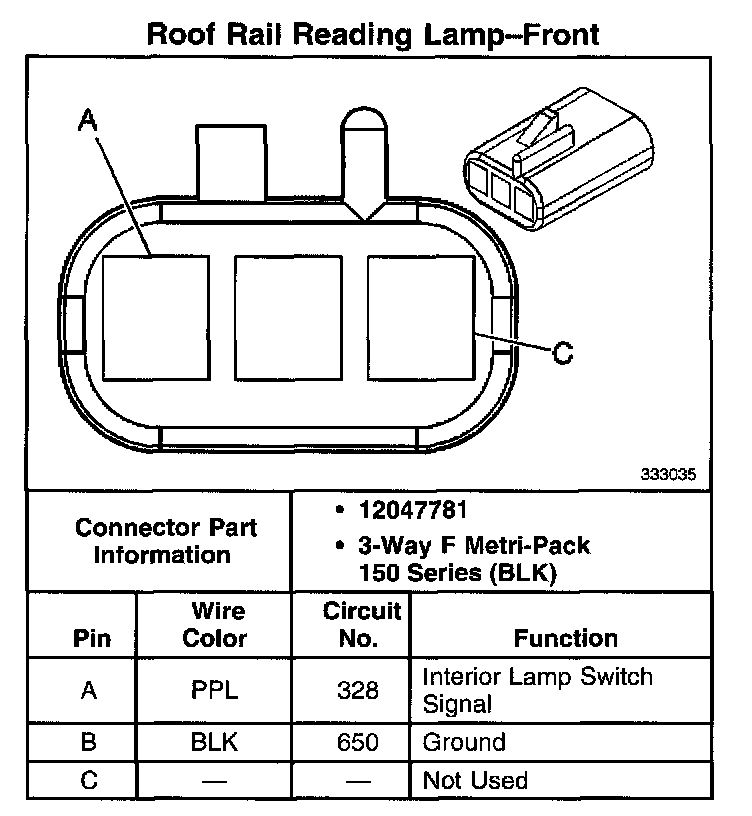

Roof Rail Reading Lamp - Front:

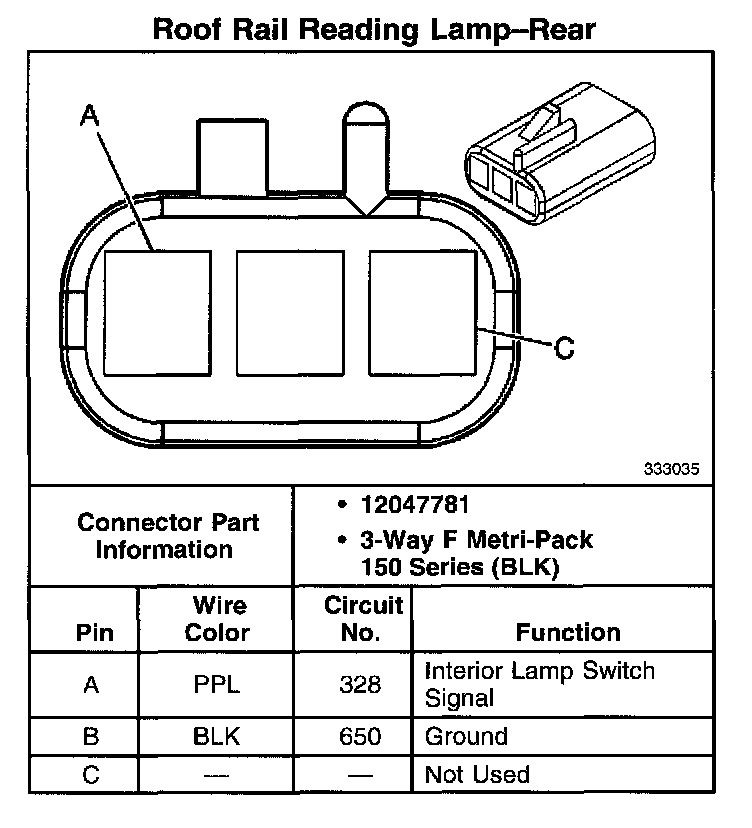

Roof Rail Reading Lamp-Rear:

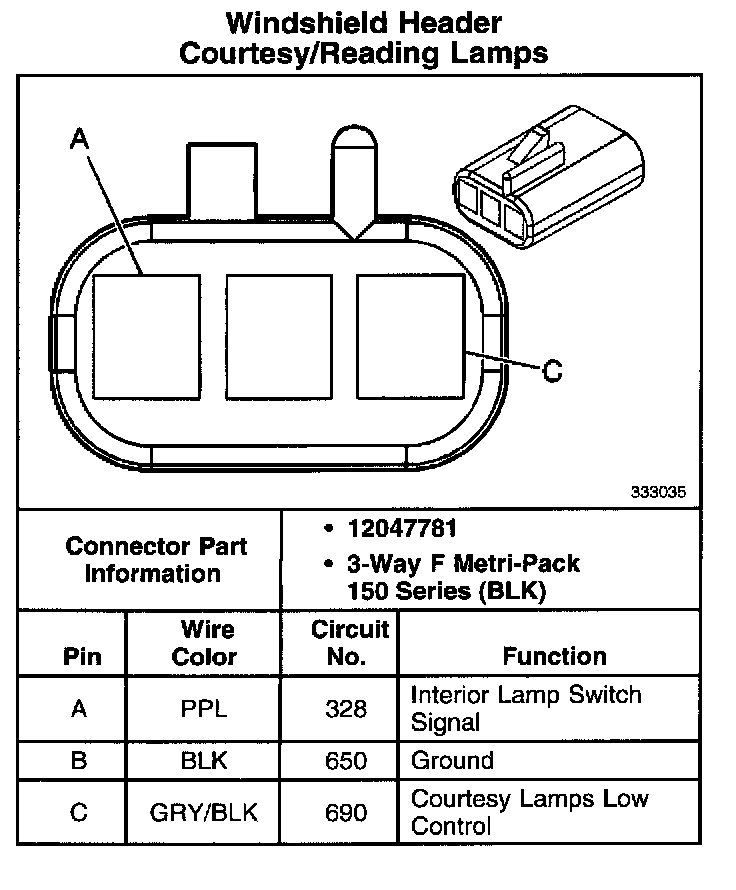

Windshield Header Courtesy/Reading Lamps:
