Scan Tool Output Controls

Scan Tool Output Controls

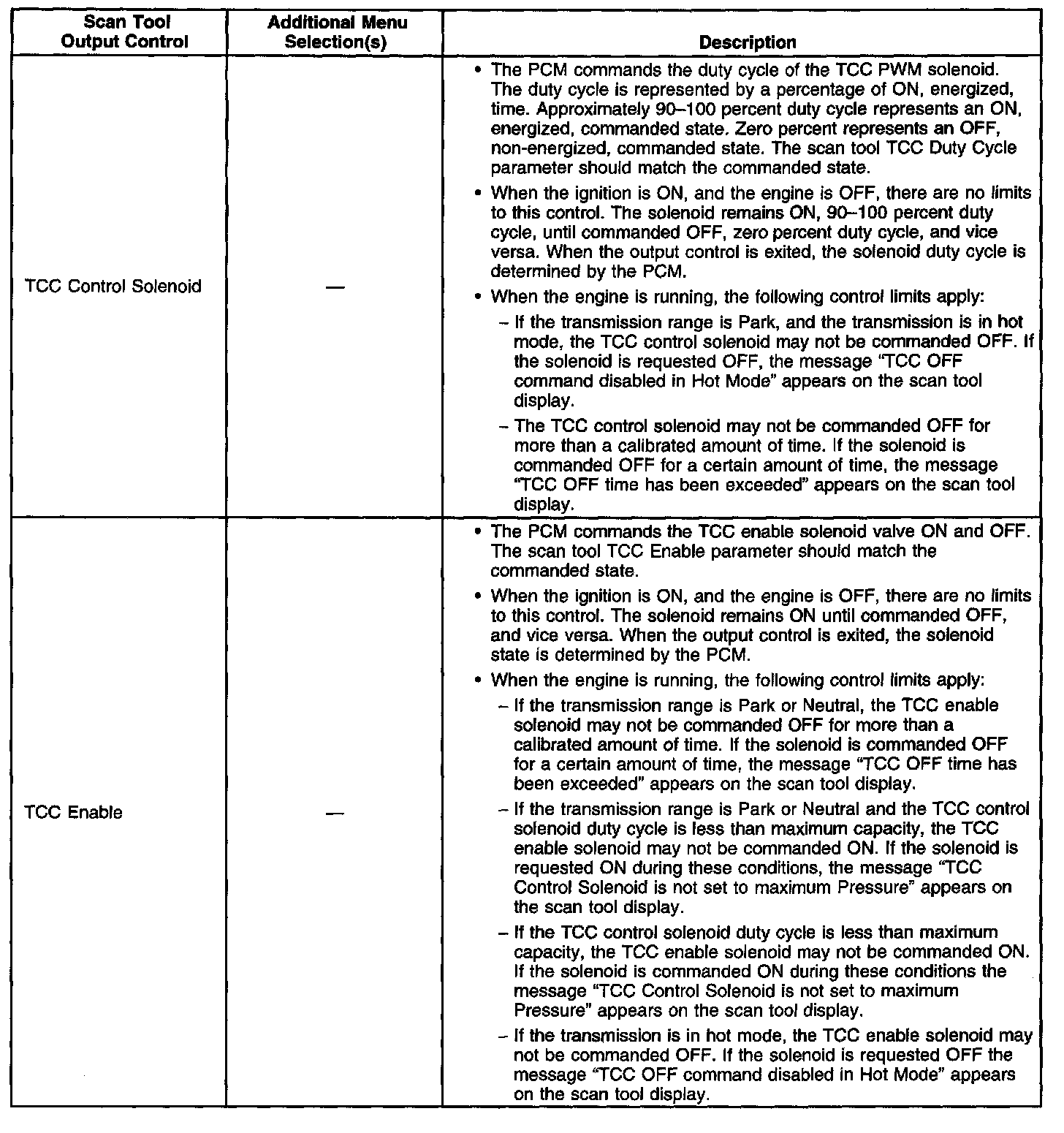

Part 1 of 4

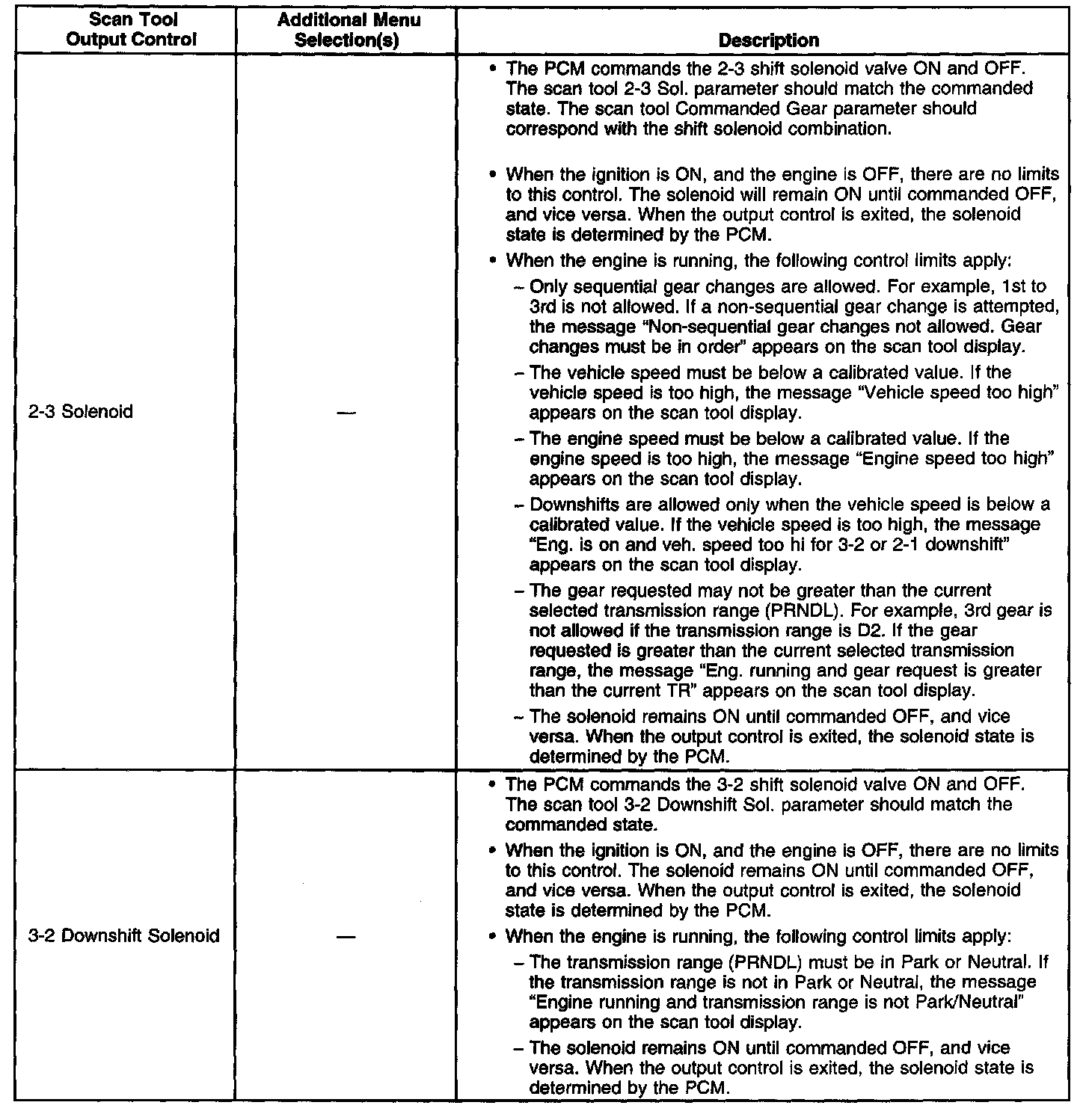

Part 2 of 4

Part 3 of 4

Part 4 of 4
