Home >> Chevy Truck >> 2002 >> TrailBlazer 4WD L6-4.2L VIN S >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Testing - HVAC System - Manual >> Scan Tool Data List - Rear HVAC Control Module

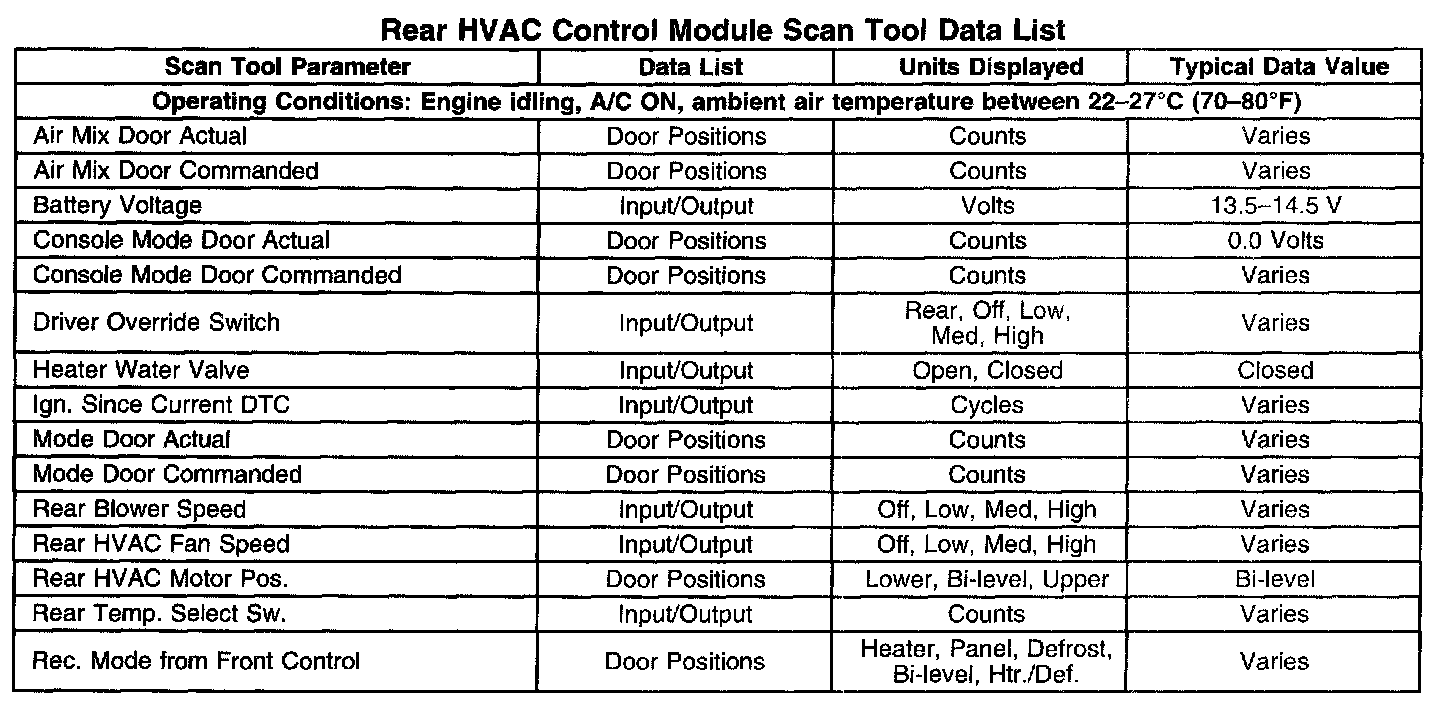

Scan Tool Data List - Rear HVAC Control Module

Rear HVAC Control Module Scan Tool Data List:
