Powertrain Control Module (PCM) Idle-Up Inputs

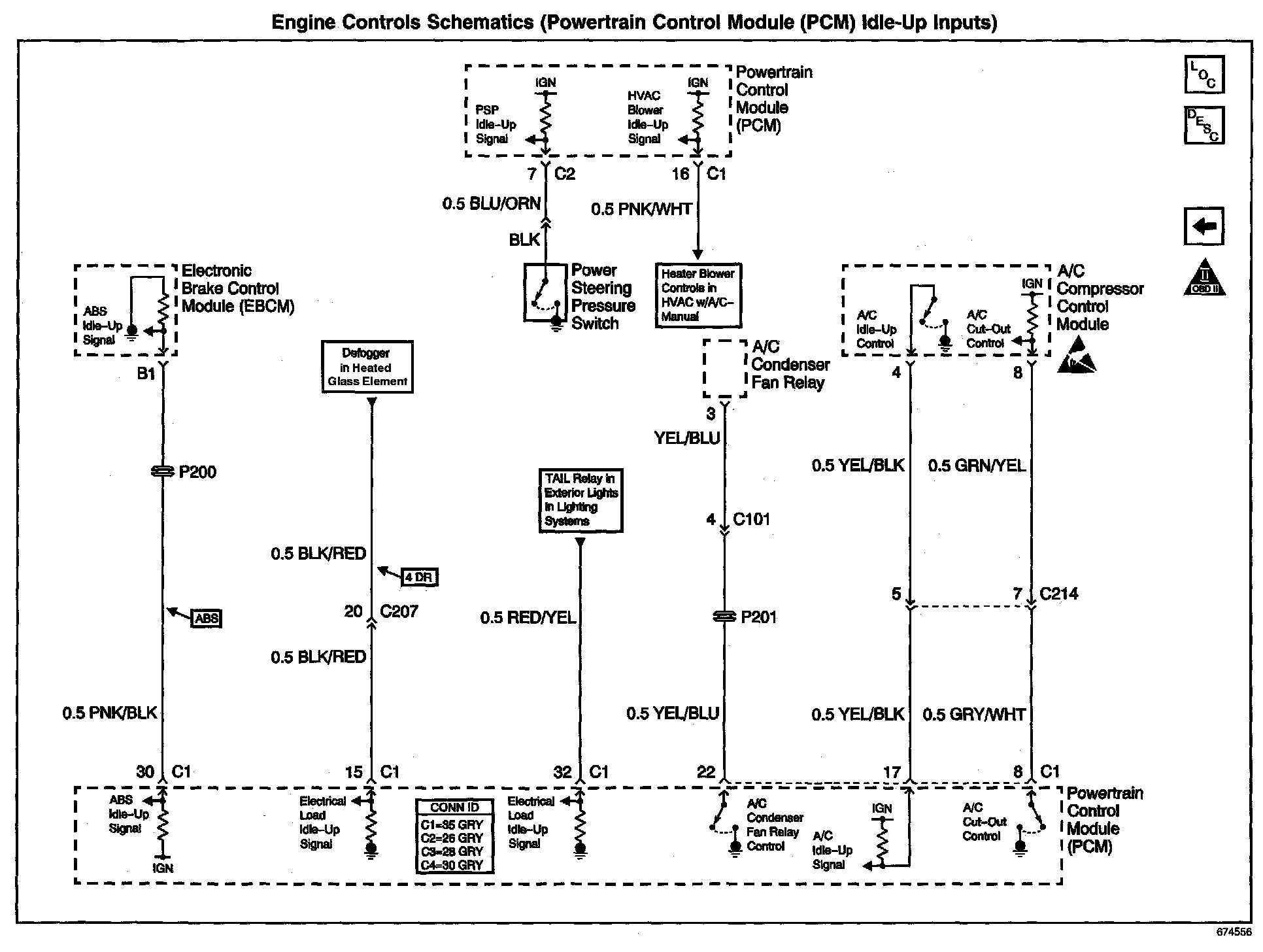

Engine Controls Schematics: Powertrain Control Module (PCM) Idle-Up Inputs:
