Chevy Truck
>>
2002
>>
Tracker 2WD V6-2.5L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
Fuse Block C1
Fuse Block C1

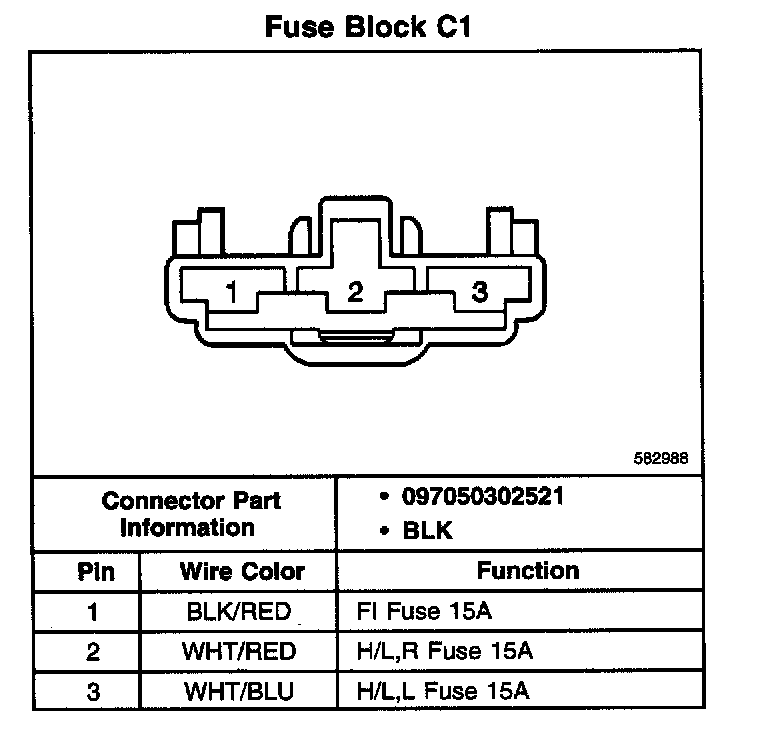

Fuse Block C1:
