Air Outlet Replacement - Right Floor

REMOVAL PROCEDURE

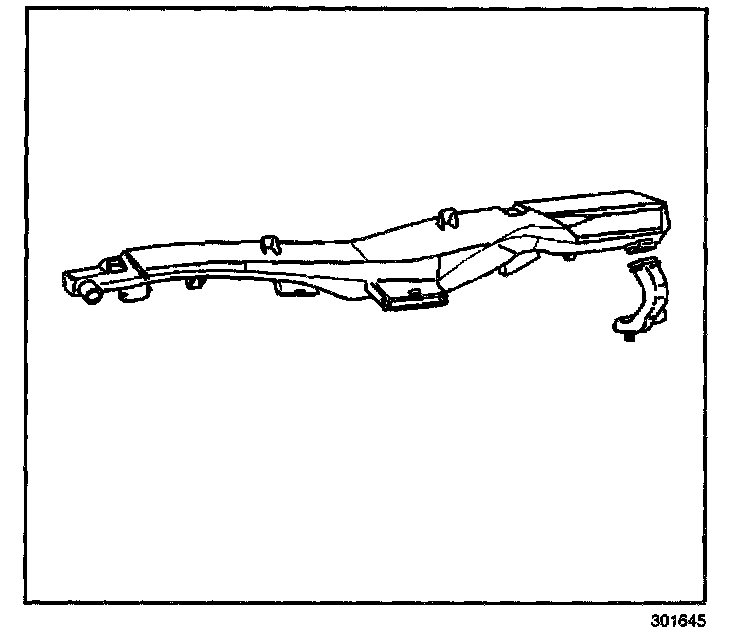

1. Remove the right knee bolster.
2. Remove the screw from the air outlets.
3. Remove the right inner air outlet duct from the vehicle.




4. Remove the right outer air outlet duct from the vehicle.

INSTALLATION PROCEDURE




1. Install the right outer air outlet duct to the vehicle.




2. Install the right inner air outlet duct to the vehicle.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the screw to the air outlets.

Tighten
Tighten the screw to 2 N.m (18 lb in).

4. Install the right knee bolster.
