Crankshaft Rear Oil Seal Replacement

Crankshaft Rear Oil Seal Replacement

^ Tools Required
- J 35621-B Crankshaft Rear Oil Seal Installer

Removal Procedure





1. Remove the transmission assembly.
2. Remove the flywheel.
3. Loosen the oil pan.

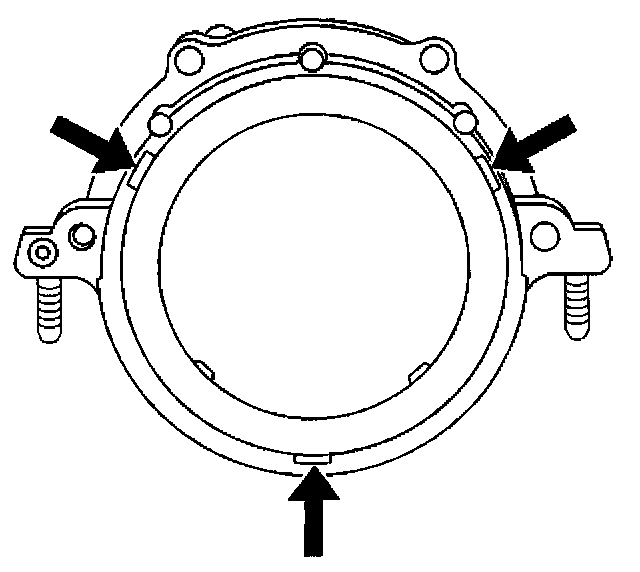

4. Remove the crankshaft rear oil seal from the crankshaft rear oil seal housing.

Installation Procedure

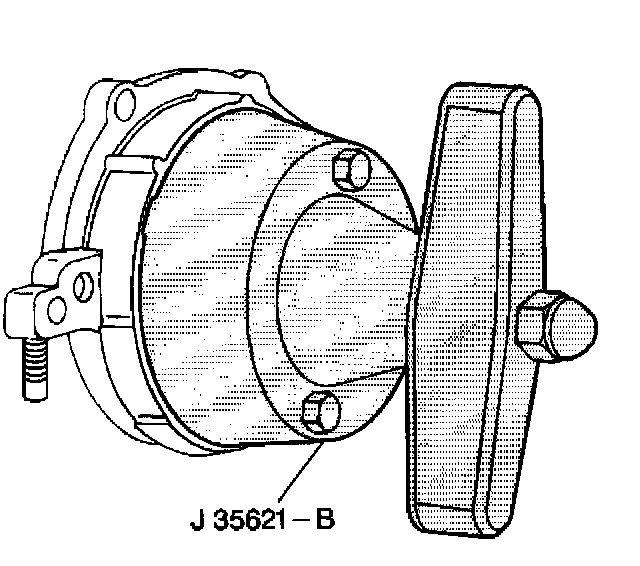

1. Install the crankshaft rear oil seal using J 35621-B.
2. Tighten the oil pan.
3. Install the flywheel.
4. Install the transmission assembly.
