Crankshaft Rear Oil Seal Housing Replacement

Crankshaft Rear oil Seal and Housing Replacement

Removal Procedure





1. Remove the transmission assembly.
2. Remove the flywheel.
3. Loosen and lower the oil pan.

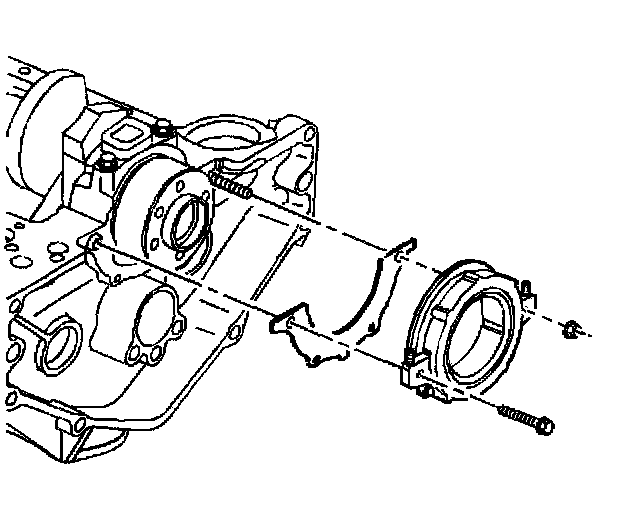

4. Remove the crankshaft rear oil seal housing.

Installation Procedure





1. Install the oil seal housing.
2. Install the flywheel.
3. Install the transmission assembly.
