Valve Spring: Service and Repair

Valve Stem Oil Seal and Valve Spring Replacement

^ Tools Required
- J 22794 Spark Plug Port Adapter
- J 38606 Valve Spring Compressor
- J 5892-D Valve Spring Compressor
- J 42073 Valve Stem Oil Seal Installer

Removal Procedure





1. Remove the valve rocker arm covers.
2. Remove the spark plugs.

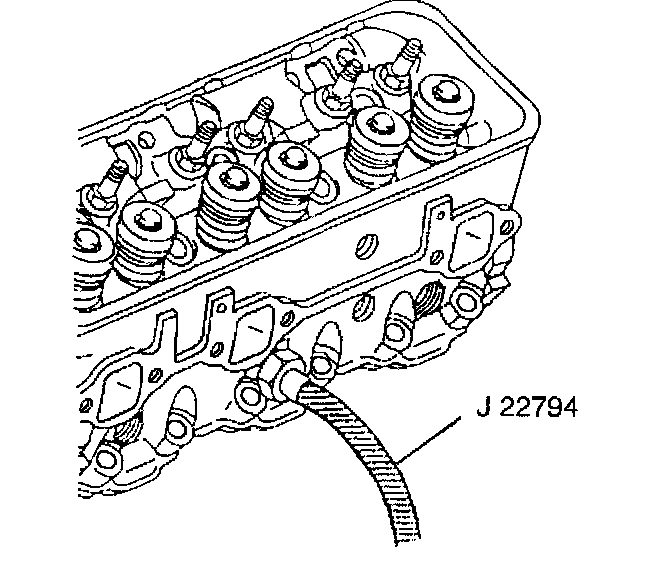

3. Install the J 22794 into the spark plug hole.

Caution: Refer to Safety Glasses Caution in Service Precautions.

4. Apply compressed air in order to hold the valves in place.





5. Install the valve rocker arm nut.

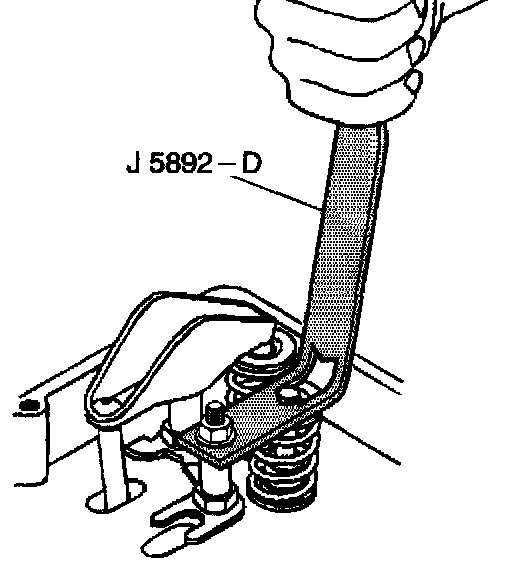

6. Use the J 5892-D in order to compress the valve spring.

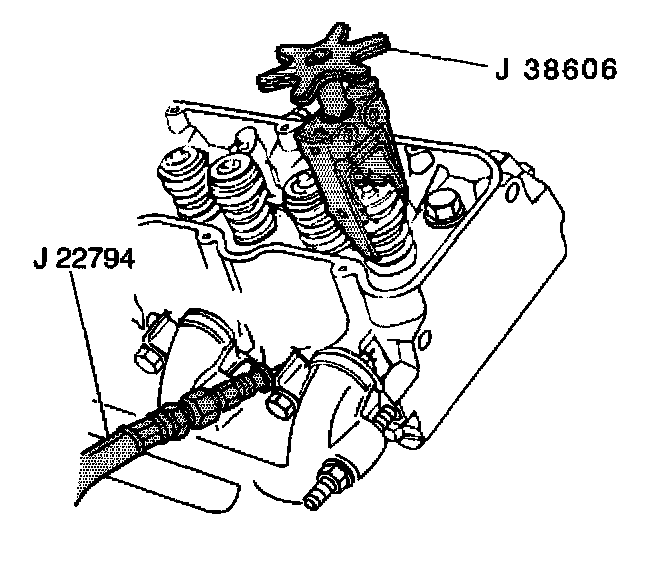

7. Use the J 38606 if clearance does not permit use of J 5892-D.

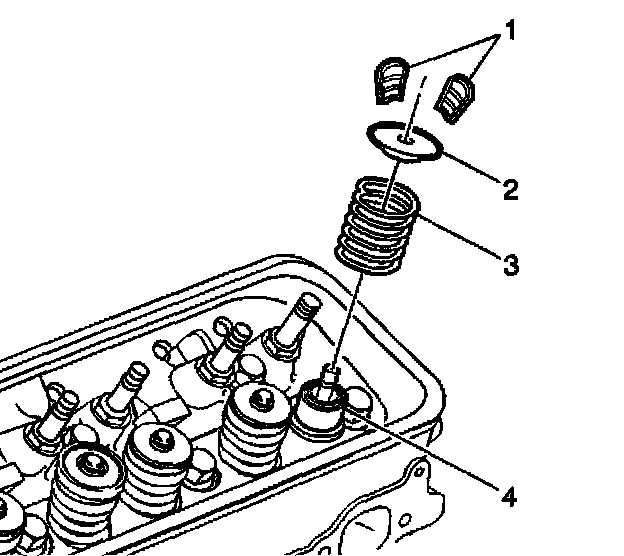

8. Remove the valve stem keys (1).
9. Carefully release the valve spring tension.
10. Remove the J 5892-D or the J 38606.
11. Remove the valve spring cap (2) and valve spring (3).
12. Remove the valve stem Oil seal (4).

Installation Procedure





1. Select the proper valve stem Oil seal for the specific valve guide.

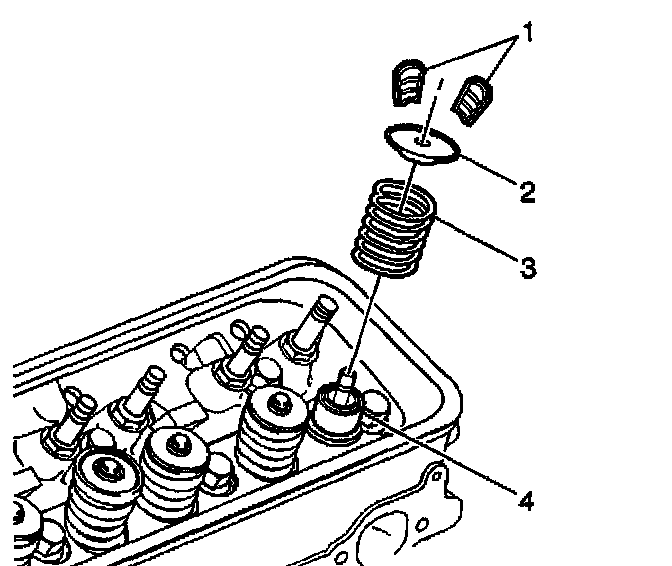

2. Install the valve spring (3) and the valve spring cap (2).

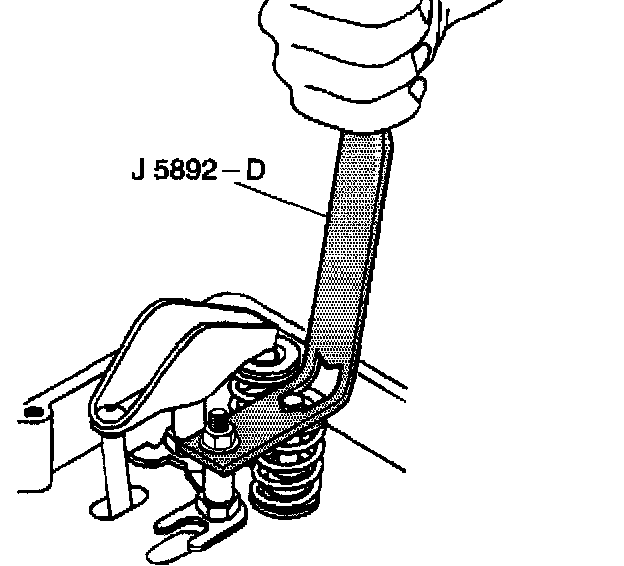

3. Use the J 5892-D in order to compress the valve spring.

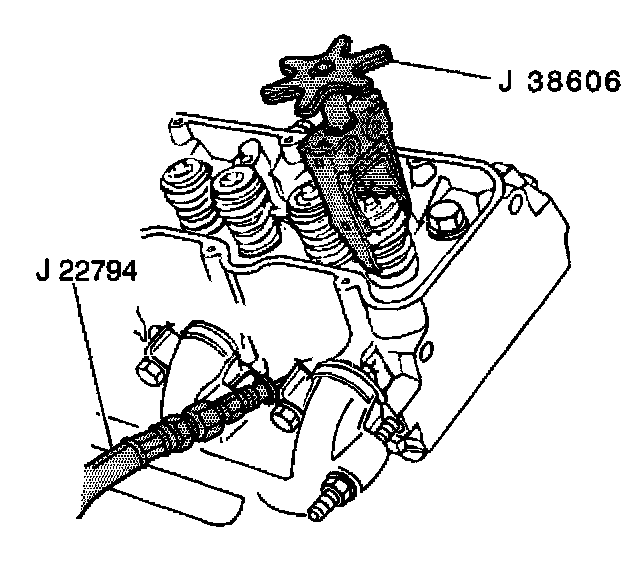

4. Use the J 38606 if clearance does not permit use of J 5892-D.
5. Install the valve stem keys.
6. Use grease in order to hold the valve stem keys in place.
7. Carefully the valve spring pressure, making sure the valve stem keys stay in place.

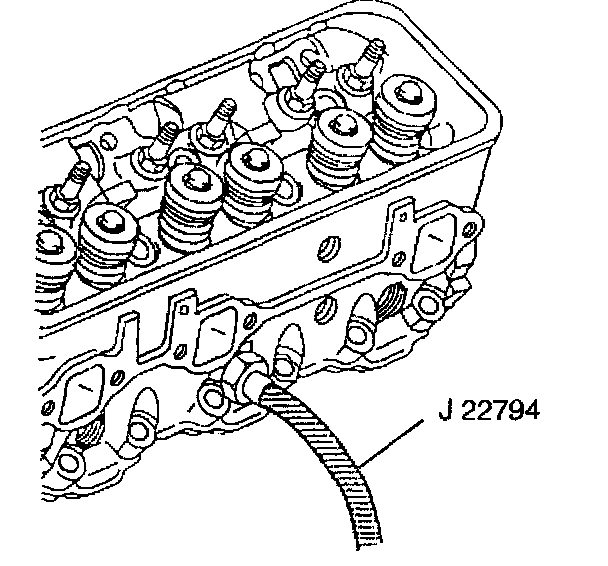

8. Remove the J 5892-D or the J 38606 and the J 23590.
9. Install the spark plugs.
10. Install the valve rocker arm covers.
