Hydraulic Assist System Diagnosis

Brake Assist System Diagnosis (Hydraulic Assist)

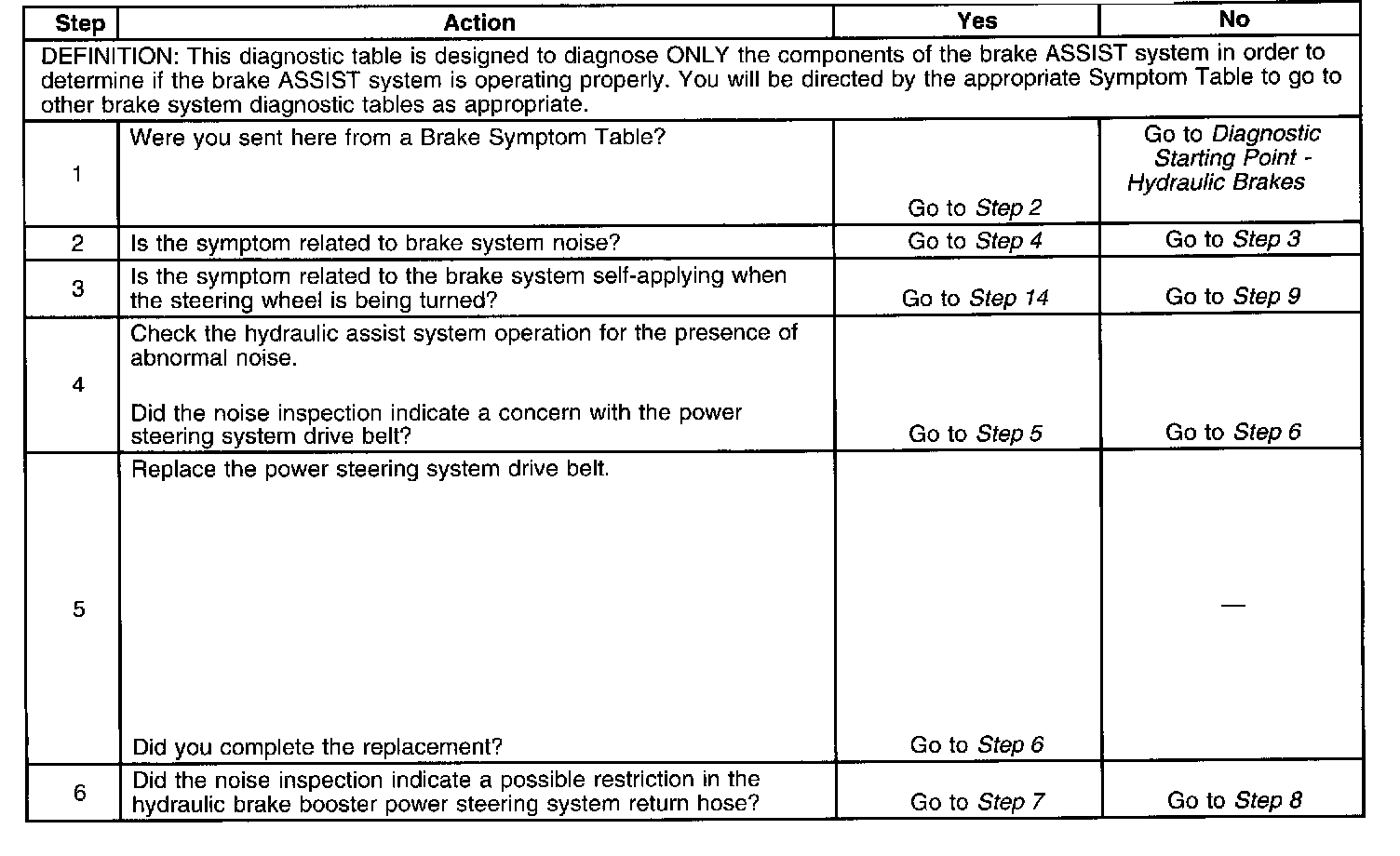

Test 1 - 6

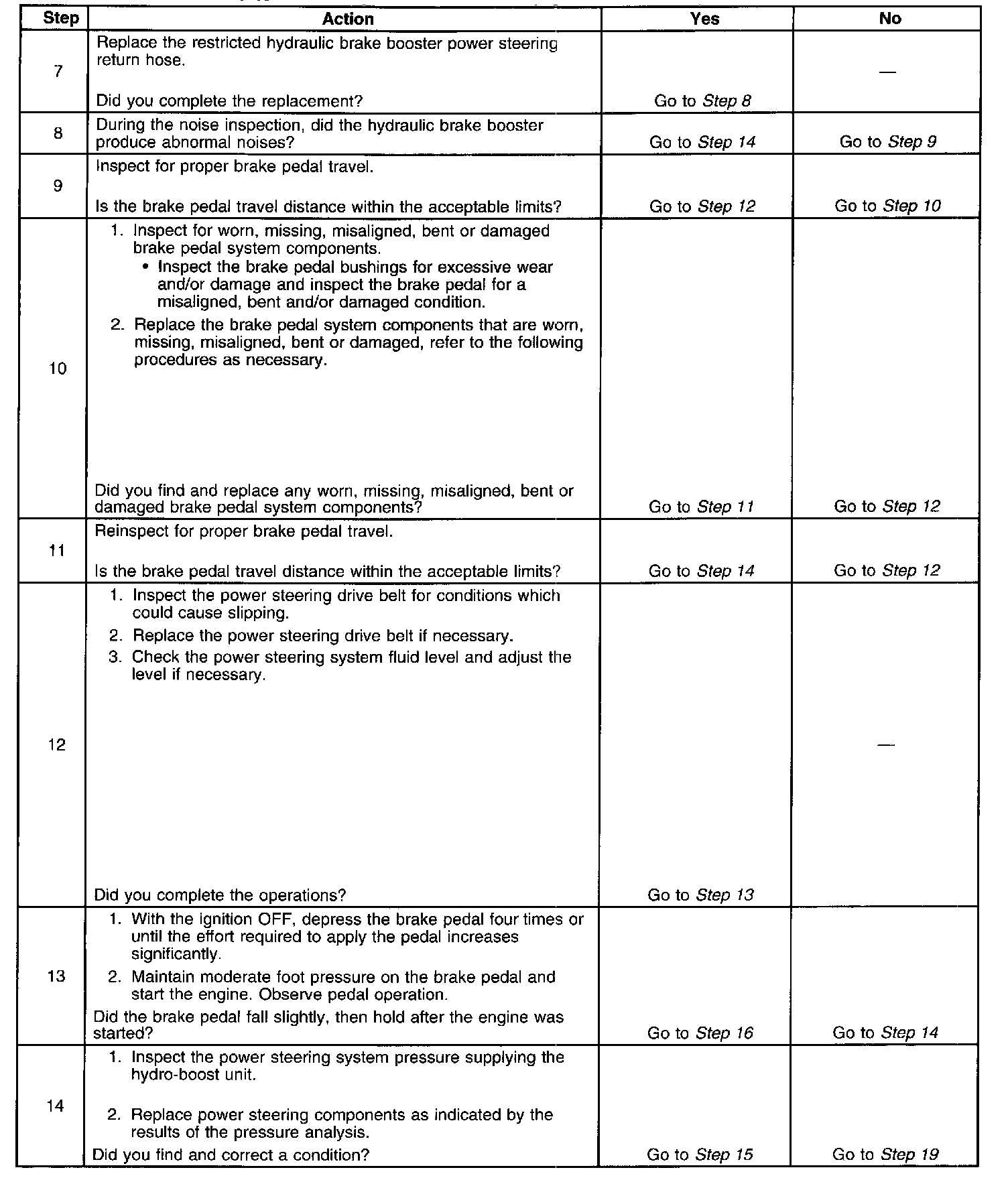

Test 7 - 14

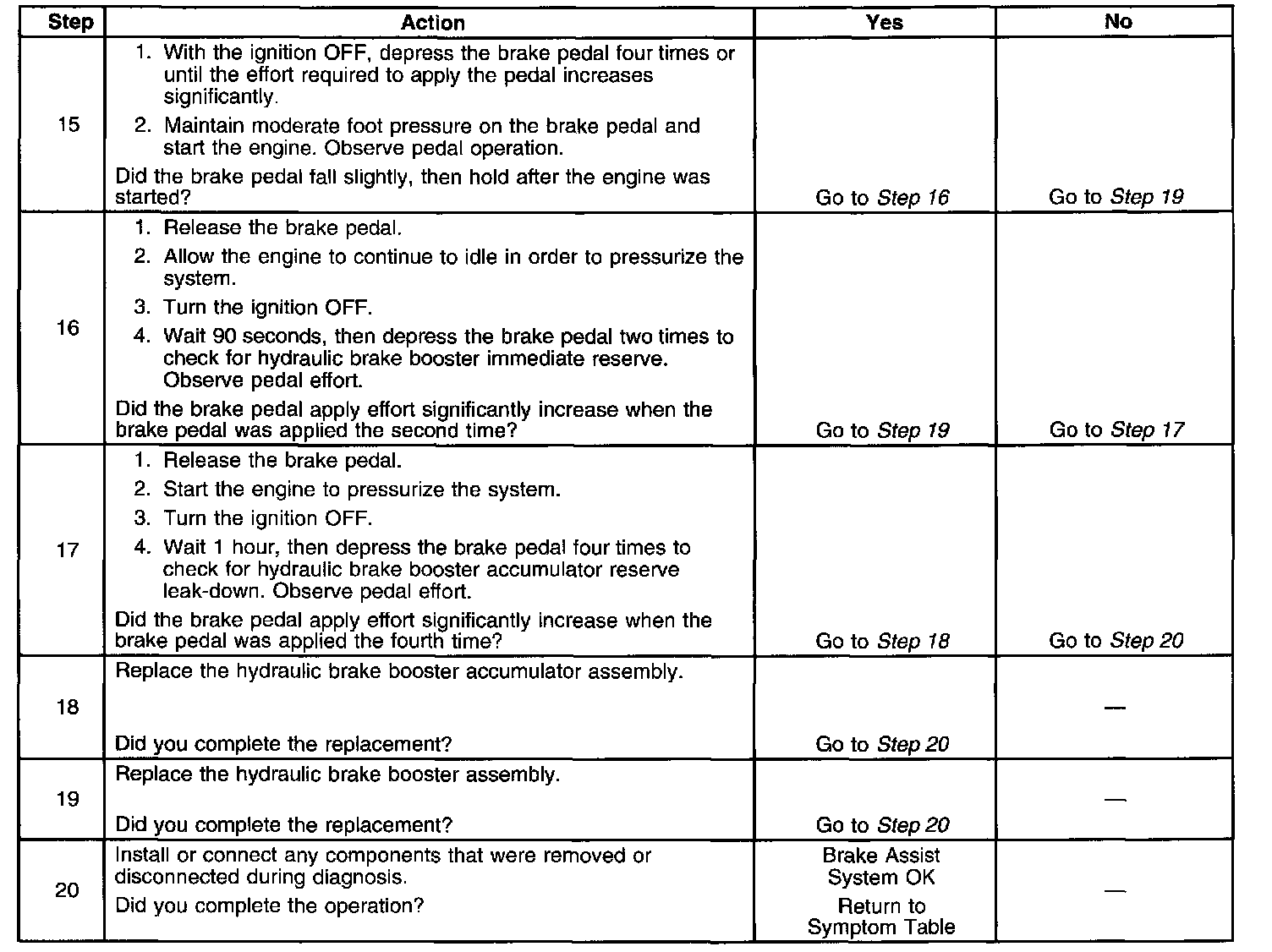

Test 15 - 20
