Rear Pillar (Luxury Y91)

REMOVAL PROCEDURE




1. Remove the lower pillar garnish molding.
2. Disconnect the electrical connectors.

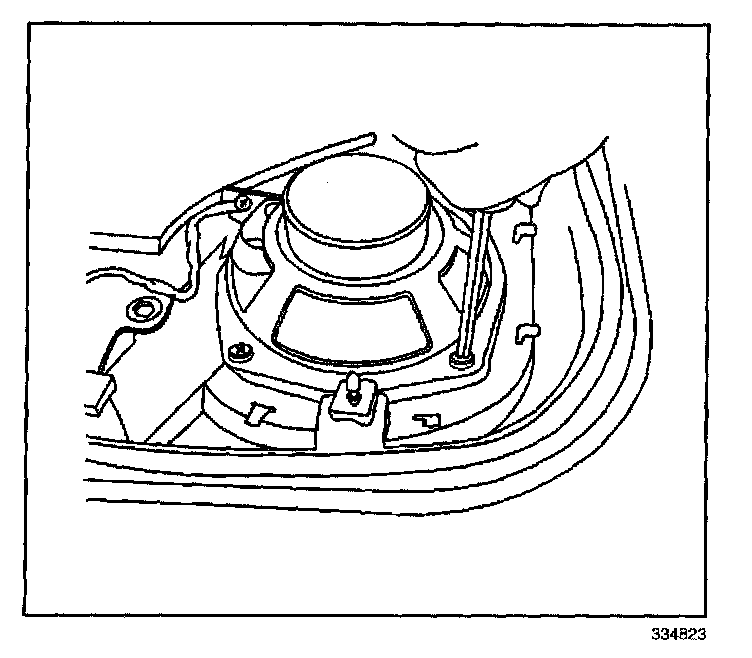

3. Remove the screws from the speaker.

INSTALLATION PROCEDURE

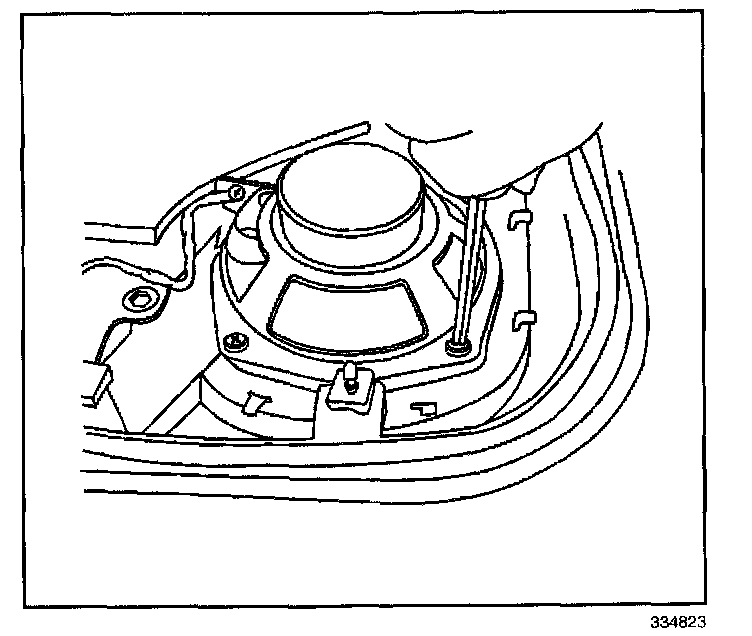

1. Install the screws to the speakers.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screws to 2 N.m (18 lb ft).

2. Connect the electrical connectors.
3. Install the lower pillar garnish molding.
