Home >> Chevy Truck >> 2002 >> Express 1 Ton Van V8-8.1L VIN G >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Wipers Inoperative - All Modes

Wipers Inoperative - All Modes

Steps 1-4:

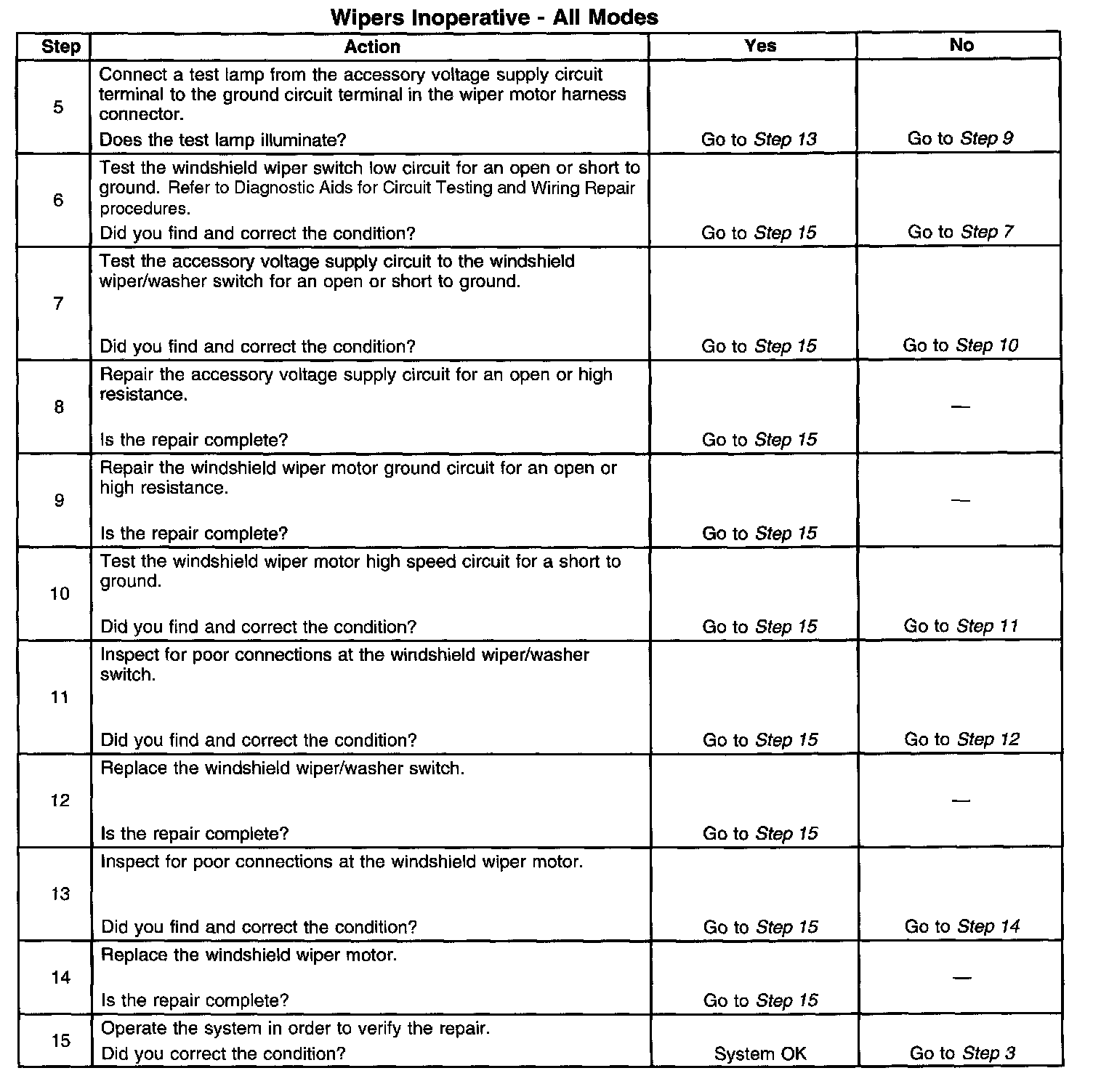

Steps 5-15:
