Water Crossover Installation

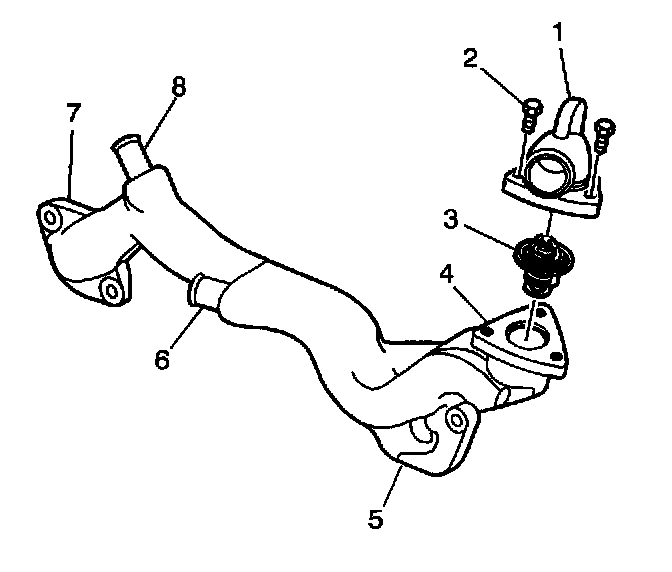

1. Install the thermostat (3) with the seal into the coolant crossover (7).
2. Install the water outlet (1).

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the water outlet bolts (2).
^ Tighten the water outlet bolts to 30 Nm (22 ft. lbs.).

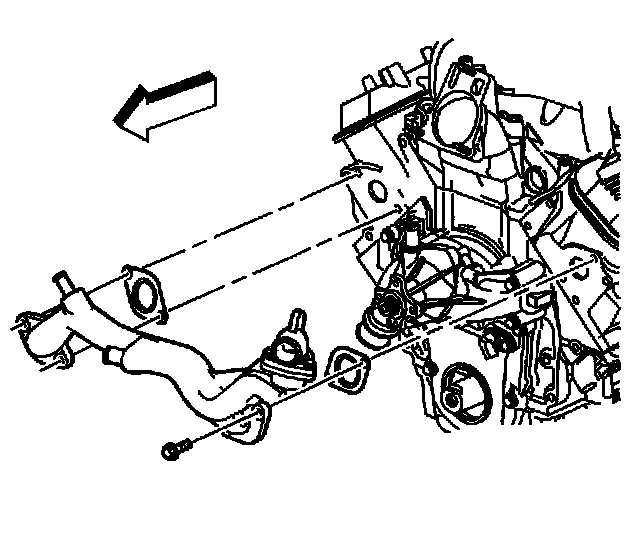

4. Place the coolant crossover gaskets and the coolant crossover in position.
5. Install the coolant crossover bolts.
^ Tighten the coolant crossover bolts to 50 Nm (37 ft. lbs.).

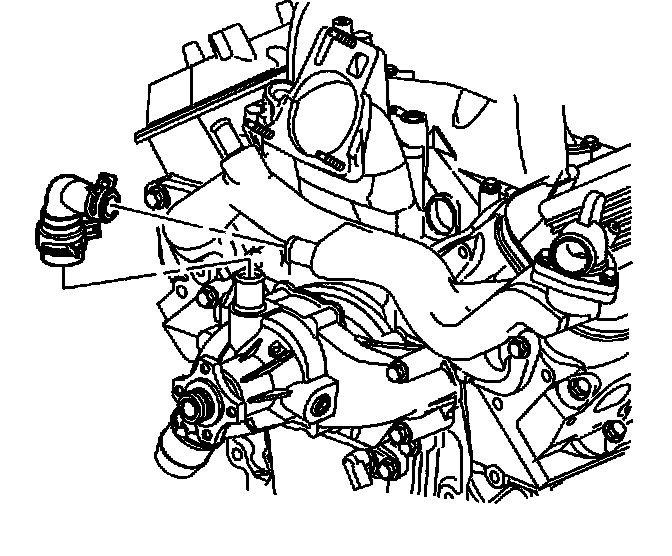

6. Install the thermostat bypass hose clamps onto the thermostat bypass hose.
7. Install the thermostat bypass hose.

Important: Properly position the bypass hose clamps to avoid water pump pulley interference.

8. Position the thermostat bypass hose clamps.
