Home >> Chevy Truck >> 2002 >> Express 1 Ton Van V8-8.1L VIN G >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Emission Controls

Emission Controls

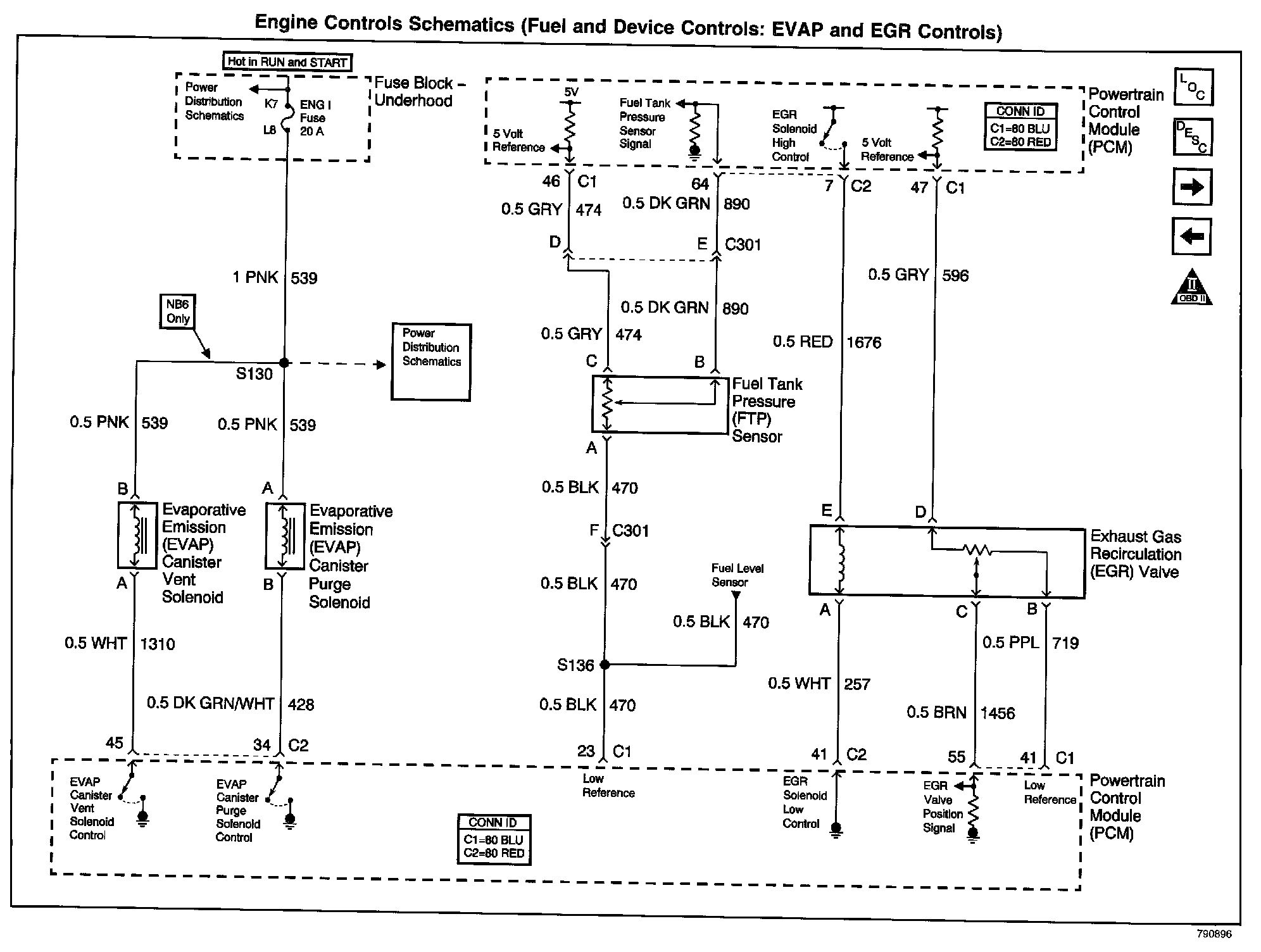

Engine Controls Schematics: Fuel And Device Controls: EVAP And EGR Controls:
