Rear AUX Mode Valve and Seal ASM, Rear AUX TEMP Valve ASM, G400

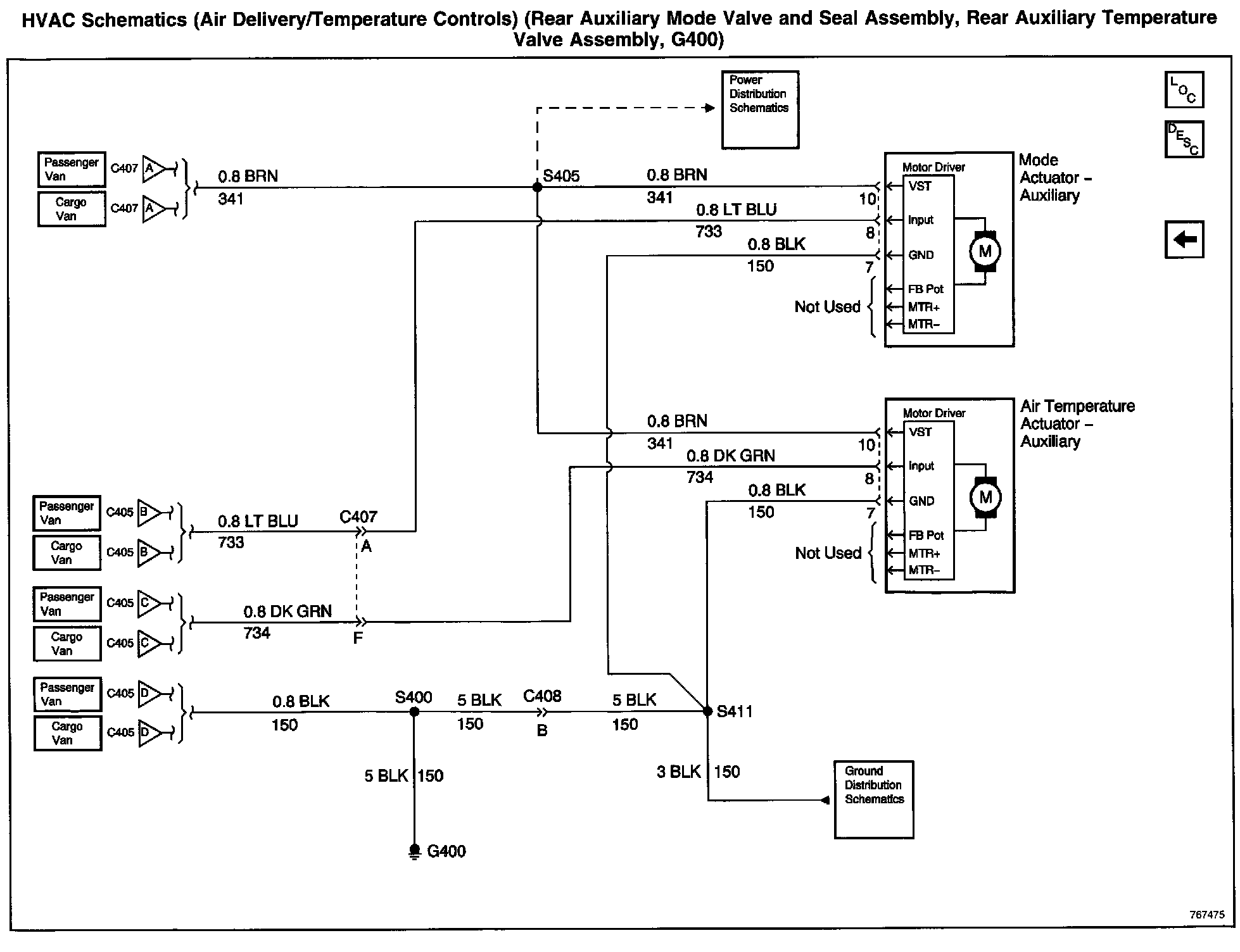

HVAC Schematics: Air Delivery/Temperature Controls (Rear Auxiliary Mode Valve And Seal Assembly, Rear Auxiliary Temperature Valve Assembly, G400):
