Home >> Chevy Truck >> 2002 >> Express 1 Ton Van V8-8.1L VIN G >> Repair and Diagnosis >> Diagrams >> Connectors >> Connectors By Number >> C200 - C299 >> C212 (Right)

C212 (Right)

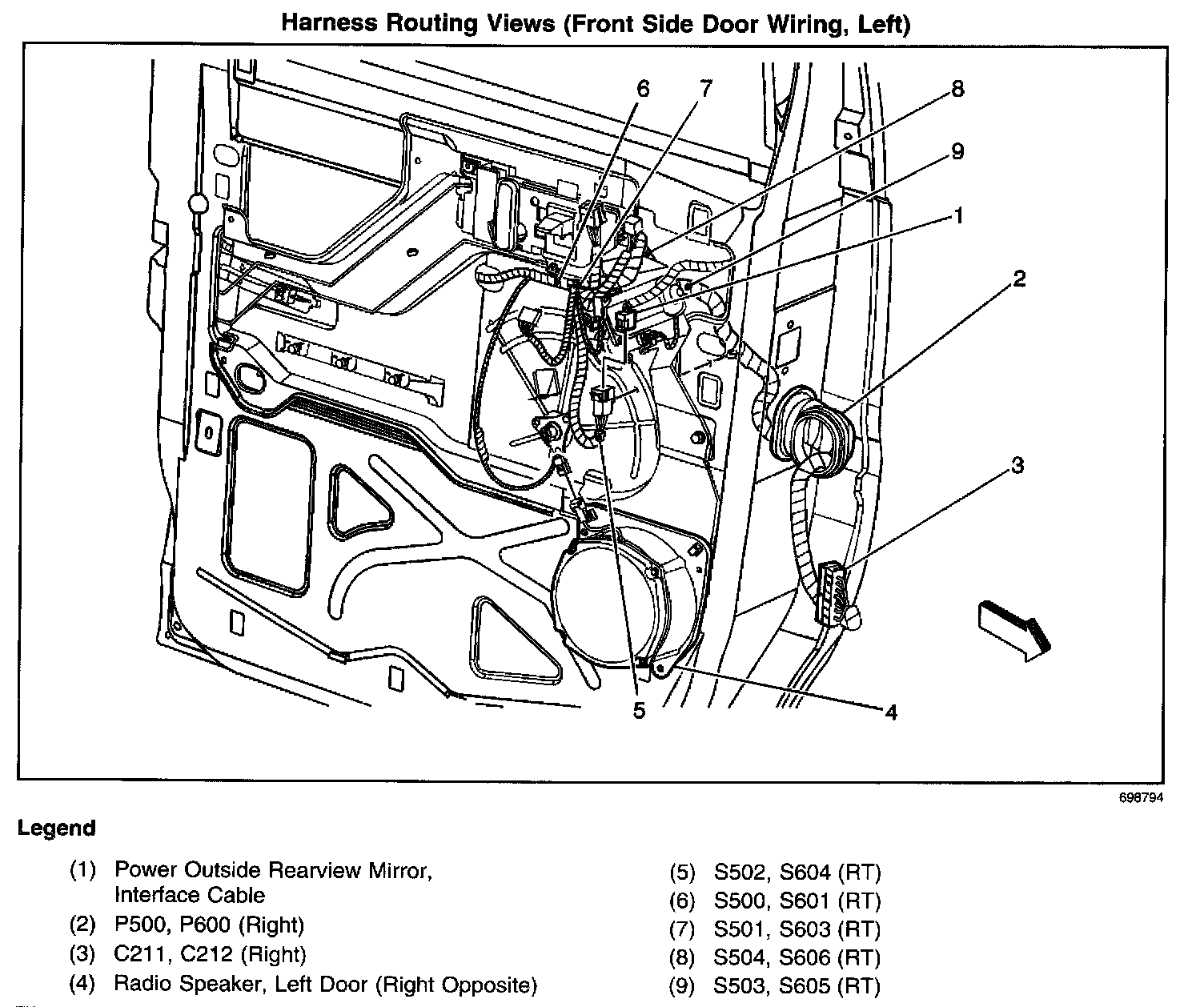

Harness Routing Views (Front Side Door Wiring, Left):
