Express 1 Ton Van V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Relays
>>
Blower Motor Medium Speed Relay - Auxiliary
Blower Motor Medium Speed Relay - Auxiliary

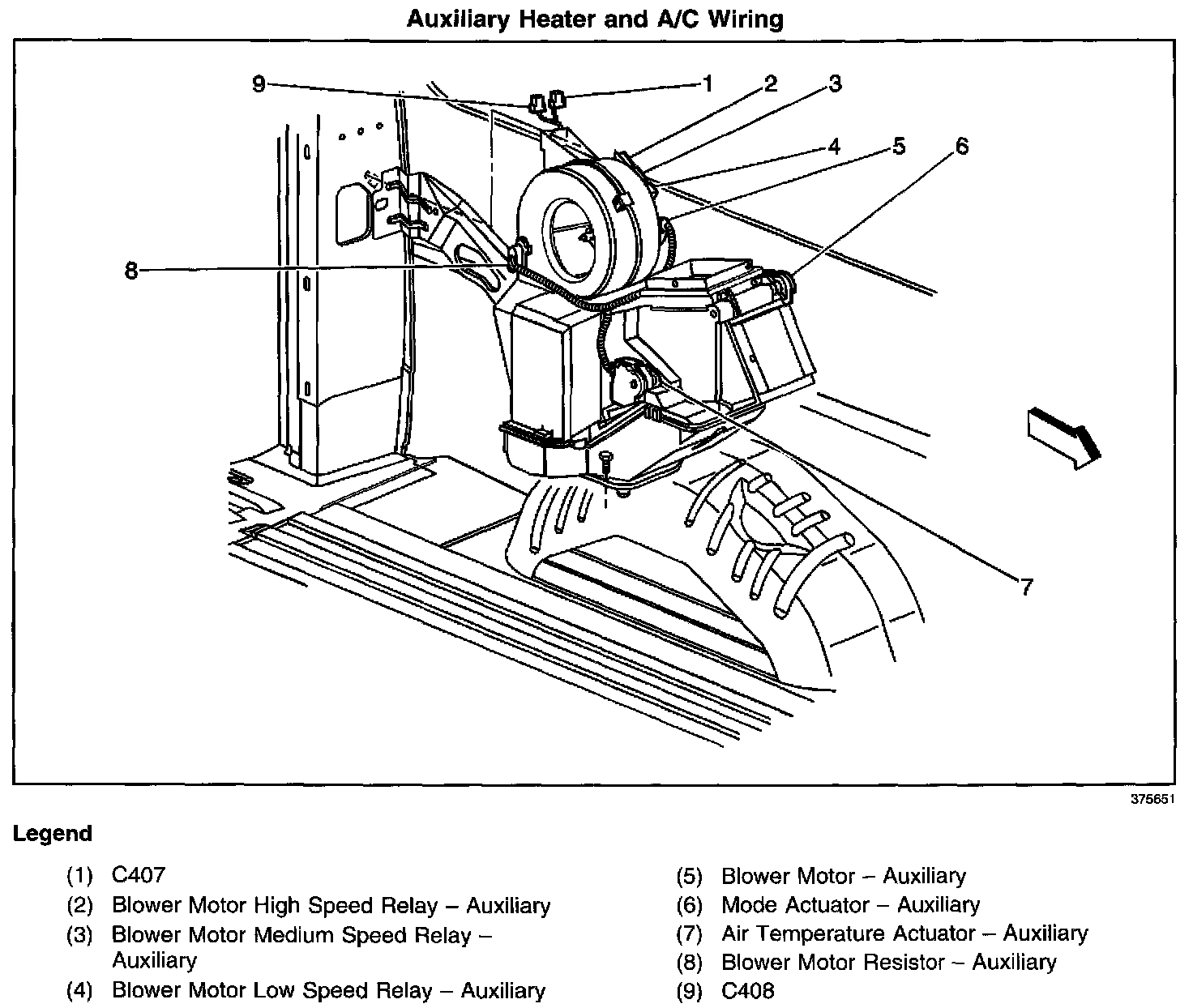

Locations View:
Locations View:
