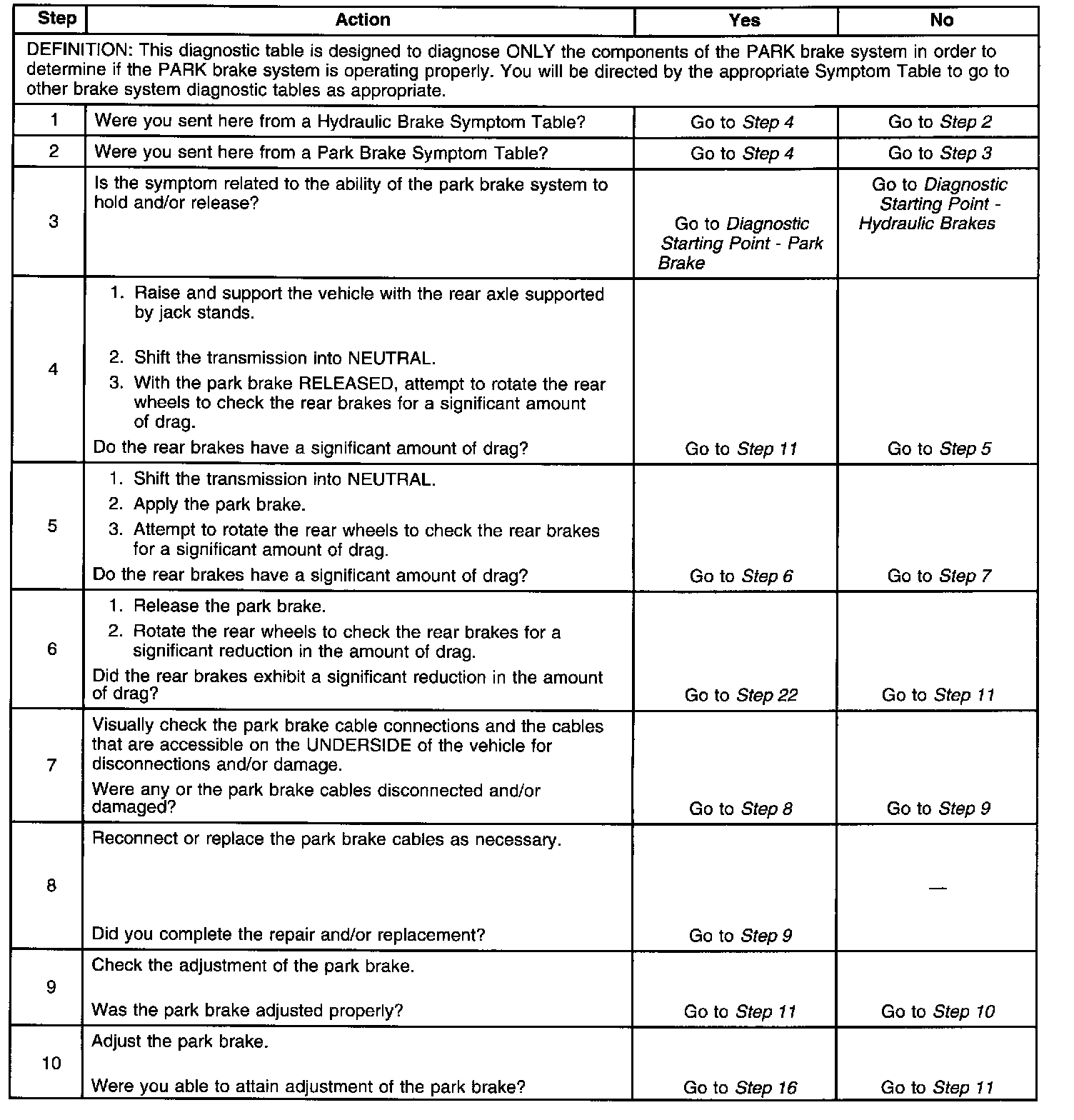

Park Brake System Diagnosis

Park Brake System Diagnosis





Test 1 - 10





Test 11 - 19





Test 12 - 29
