Seat Back Cover and Pad Replacement - Rear (Luxury Y91)

Seat Back Cover and Pad Replacement - Rear (Luxury Y91)

Removal Procedure

1. Remove the rear bench seat to the vehicle. Refer to Seat Replacement - Rear Bench (All Except Luxury) (Seat Replacement - Rear Bench (All Except Luxury))Seat Replacement - Rear Bench (Luxury Y91) (Seat Replacement - Rear Bench (Luxury Y91)) .
2. Remove the rear seat headrest. Refer to Head Restraint Replacement (Luxury (Y91)) (Head Restraint Replacement (Luxury (Y91))) .
3. Remove the rear seat armrests. Refer to Armrest Replacement - Rear Seat (All Except Luxury) (Armrest Replacement - Rear Seat (All Except Luxury))Armrest Replacement - Rear Seat (Luxury Y91) (Armrest Replacement - Rear Seat (Luxury Y91)) .

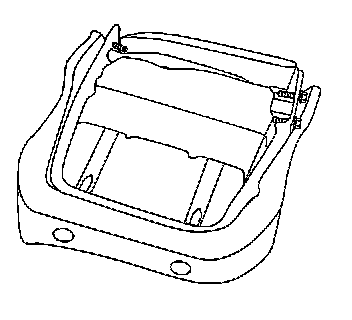

4. Remove the J-hook along the bottom edge of the seat back.
5. Separate the J-hook fasteners that retain the seat back cover to the pad along the seat back break line.




6. Remove the seat back cover and pad from the seat back.



Installation Procedure






Important: For the best finished appearance, proceed as follows when attaching the seat back cover to the pad:


1. Install the seat back cover and pad to the seat back.

1. Center the seat back cover on the pad.
2. Starting at the top and working down the sides, apply pressure along the break line in order to help attach the seat back cover to the J-hook to the frame and attach the hook and loop.

2. Install the seat back to the frame and attach.
3. Install the armrests. Refer to Armrest Replacement - Rear Seat (All Except Luxury) (Armrest Replacement - Rear Seat (All Except Luxury))Armrest Replacement - Rear Seat (Luxury Y91) (Armrest Replacement - Rear Seat (Luxury Y91)) .
4. Install the headrests. Refer to Head Restraint Replacement (Luxury (Y91)) (Head Restraint Replacement (Luxury (Y91))) .
5. Install the rear bench seat to the vehicle. Refer to Seat Replacement - Rear Bench (All Except Luxury) (Seat Replacement - Rear Bench (All Except Luxury))Seat Replacement - Rear Bench (Luxury Y91) (Seat Replacement - Rear Bench (Luxury Y91)) .
