Home >> Chevy Truck >> 2002 >> Express 1 Ton Van V8-8.1L VIN G >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Doors >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Power Door Locks - Inoperative - Passenger DR (Cargo DR W/ Keyless Entry)

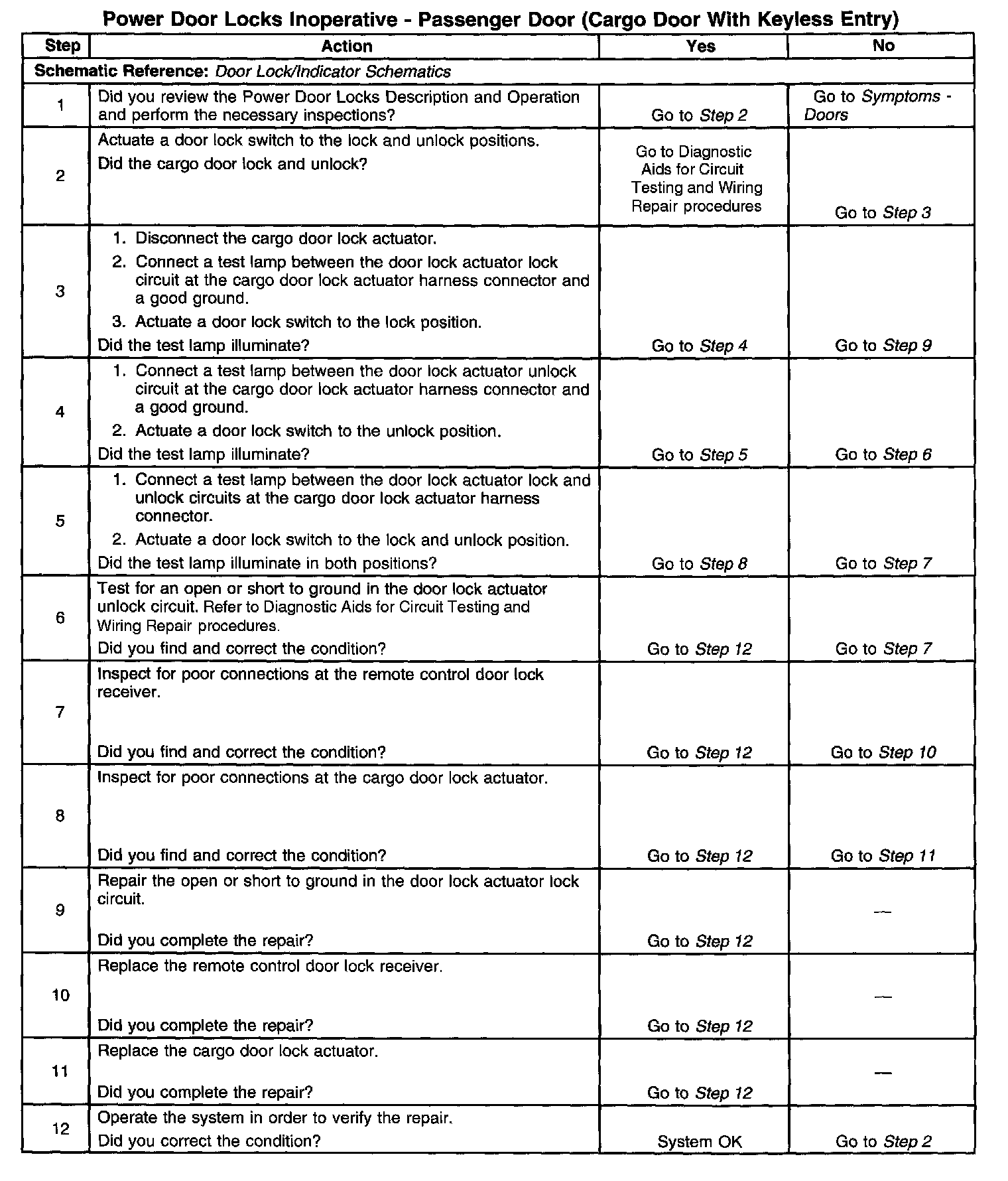

Power Door Locks - Inoperative - Passenger DR (Cargo DR W/ Keyless Entry)

Steps 1-12:
