Home >> Chevy Truck >> 2002 >> Express 1 Ton Van V8-8.1L VIN G >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Auxiliary Video Display Is Poor or Blank (Front Display)

Auxiliary Video Display Is Poor or Blank (Front Display)

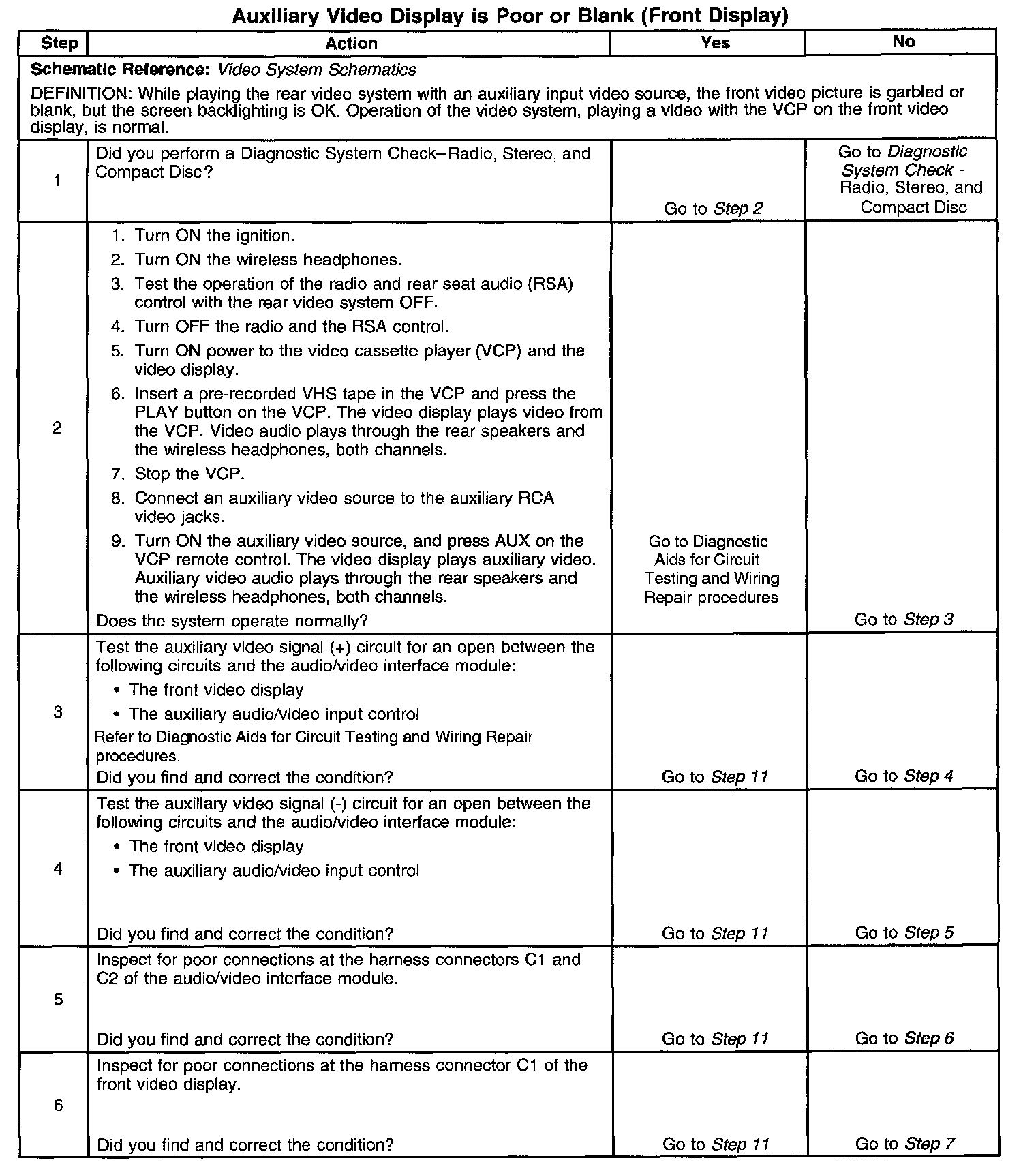

Steps 1-6:

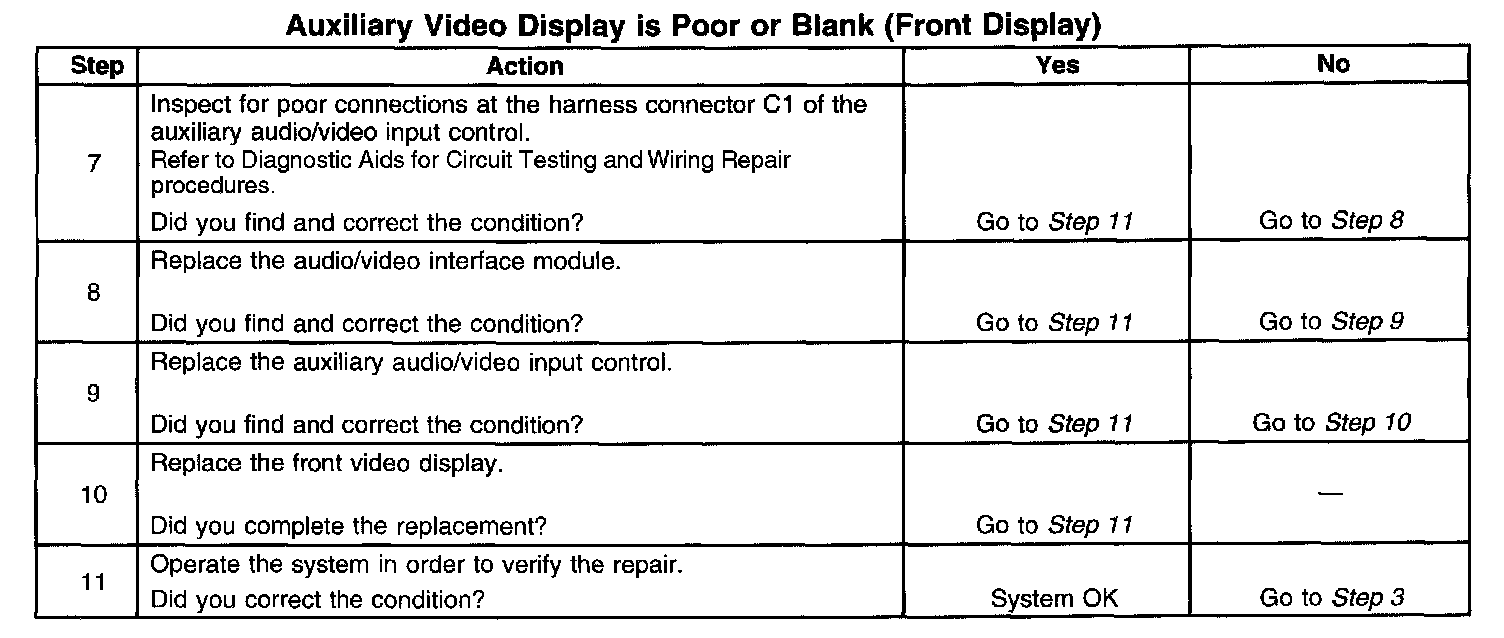

Steps 7-11:
