Auxiliary Video Display Is Poor or Blank (Both Displays)
Auxiliary Video Display Is Poor or Blank (Both Displays)
Steps 1-2:

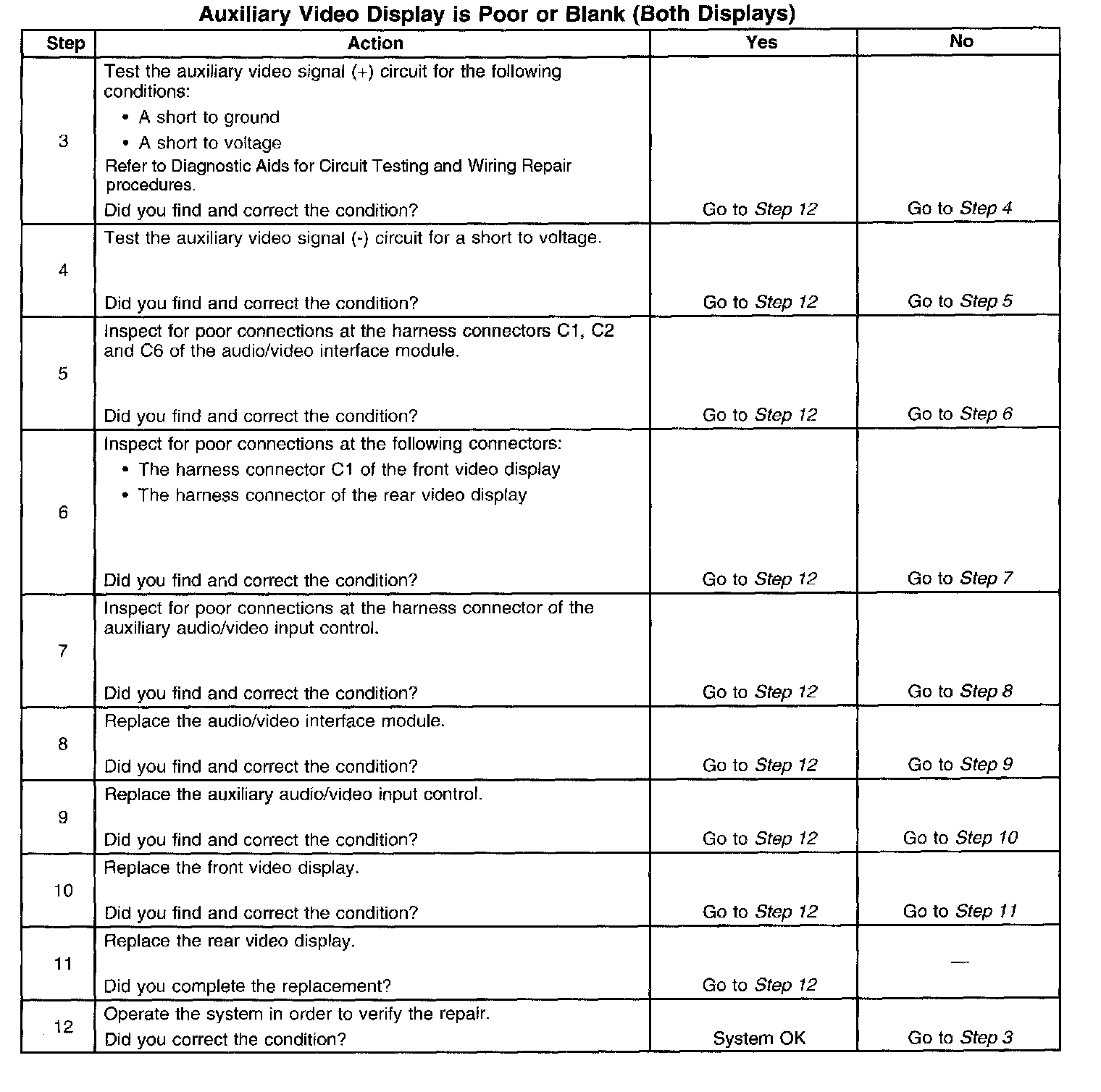

Steps 3-12:
