P0650

CIRCUIT DESCRIPTION
Ignition voltage is supplied directly to the malfunction indicator lamp (MIL). The powertrain control module (PCM) controls the lamp by grounding the control circuit via an internal switch called a driver. The primary function of the driver is to supply the ground for the component being controlled. Each driver has a fault line which is monitored by the PCM. When the PCM is commanding a component ON, the voltage of the control circuit should be low, near 0 volts. When the PCM is commanding the control circuit to a component OFF, the voltage potential of the circuit should be high, near battery voltage. If the fault detection circuit senses a voltage other than what is expected, the fault line status will change causing the DTC to set.

CONDITIONS FOR RUNNING THE DTC
^ The engine speed is more than 400 RPM.
^ The ignition voltage is between 6-18 volts.

CONDITIONS FOR SETTING THE DTC
The PCM detects that the commanded state of the driver and the actual state of the control circuit do not match for a minimum of 5 seconds.

ACTION TAKEN WHEN THE DTC SETS
^ The control module illuminates the malfunction indicator lamp (MIL) on the second consecutive ignition cycle that the diagnostic runs and fails.
^ The control module records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the control module stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive ignition cycle, the control module records the operating conditions at the time of the failure. The control module writes the operating conditions to the Freeze Frame and updates the Failure Records.

CONDITIONS FOR CLEARING THE MIL/DTC
^ The control module turns OFF the malfunction indicator lamp (MIL) after 3 consecutive ignition cycles that the diagnostic runs and does not fail.
^ A current DTC, Last Test Failed, clears when the diagnostic runs and passes.
^ A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic.
^ Clear the MIL and the DTC with a scan tool.

DIAGNOSTIC AIDS
^ If the ignition feed circuit is suspected of being open, inspect for other lamps on that circuit not illuminating. An open fuse causes the entire cluster to be inoperative. Also, if the fuse is open, transmission DTCs set.
^ If you cannot duplicate the DTC, use the Freeze Frame and Failure Records in order to locate an intermittent condition in the following ways:
- Use the information included in the Freeze Frame/Failure Records in order to determine how many miles since the DTC set.
- Use the Fail Counter and Pass Counter in order to determine how many ignition cycles the diagnostic test reported as a pass or a fail.
- Operate the vehicle within the same Freeze Frame conditions that you observed in order to isolate when the DTC failed. Use the following conditions for your tests:
^ The RPM
^ The load
^ The vehicle speed
^ The temperature
^ For an intermittent condition, refer to Intermittent Conditions. Intermittent Conditions

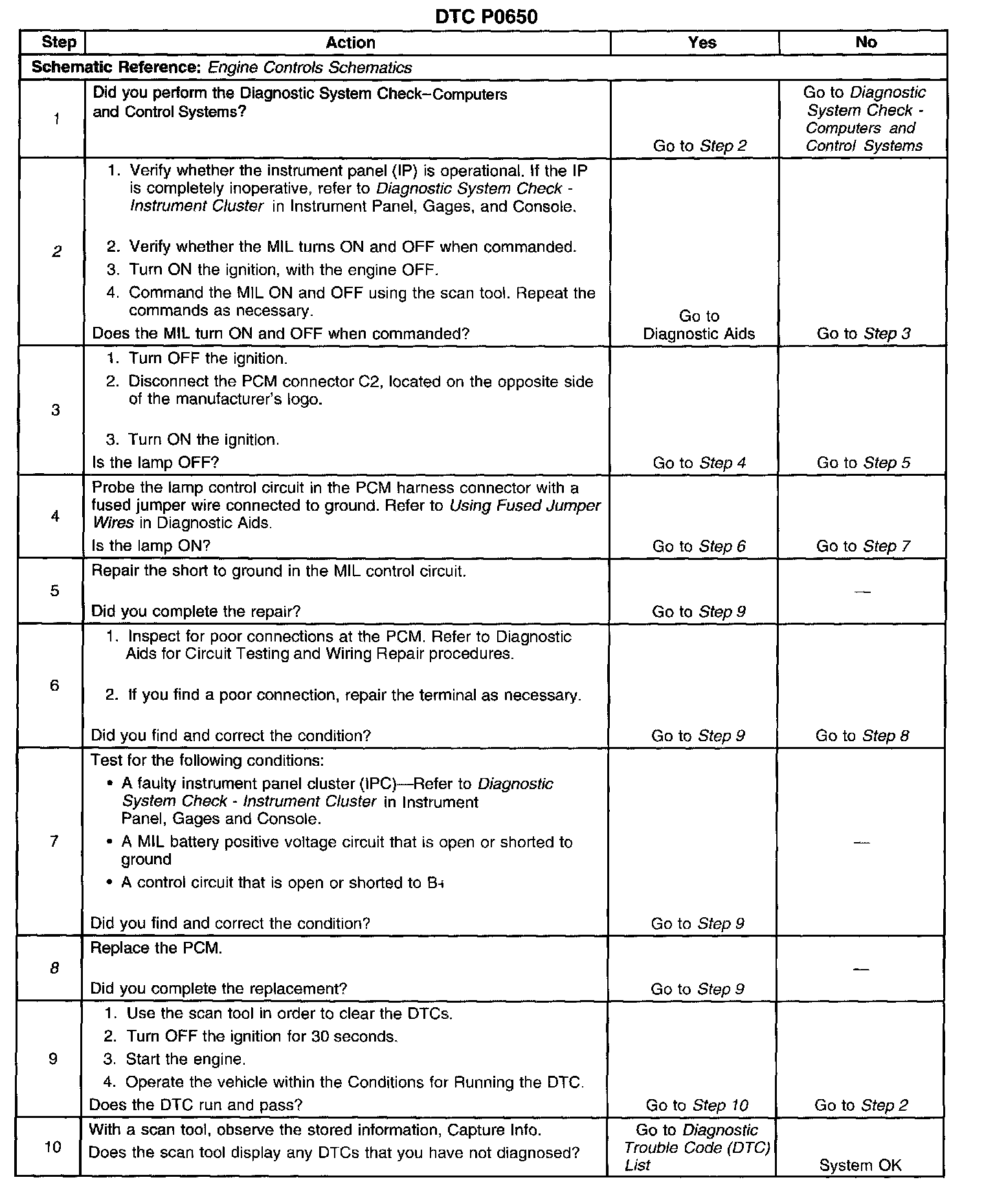

TEST DESCRIPTION

Steps 1-10:

The numbers below refer to the step numbers on the diagnostic table.
2. Command both the ON and the OFF states. Repeat the commands as necessary.
8. If you do not find trouble in the control circuit or in the connection at the PCM, the PCM may be faulty. However, this is an extremely unlikely failure.
