P0161

CIRCUIT DESCRIPTION
Heated oxygen sensors (HO2S) are used for fuel control and post catalyst monitoring. Each HO2S compares the oxygen content of the surrounding air with the oxygen content of the exhaust stream. When the vehicle is first started, the powertrain control module (PCM) operates in an Open Loop mode, ignoring the HO2S signal voltage when calculating the air-to-fuel ratio. The PCM circuitry that monitors the HO2S generates a reference, or bias, voltage of 450 mV when the sensor is cold, high resistance. Once the HO2S warms up, the HO2S generates a voltage within a range of 0 mV to 1000 mV, depending on the exhaust gas oxygen content. High HO2S voltage output indicates a rich fuel mixture; low HO2S voltage output indicates a lean mixture. Once fueling goes Closed Loop, the HO2S voltage will fluctuate above and below the bias voltage. A heating element inside the HO2S reduces the time required for the sensor to reach operating temperature, and provide an accurate voltage signal.

CONDITIONS FOR RUNNING THE DTC
^ DTCs P0101, P0102, P0103, P0106, P0107, P0108, P0112, P0113, P0116, P0117, P0118, P0200, P0300, P0351-P0358, P0400, P0401, P0404, P0405, P0410, P0440, P0442, P0443, P0446, P0449, P0452, P0453, P1120, P1125, P1220, P1221, P1258, P1404, P1441, P1514, P1515, P1516, P1517, or P1518 are not set.
^ The secondary air injection (AIR) and the exhaust gas recirculation (EGR) diagnostics are not active.
^ The intake air temperature (IAT) and the engine coolant temperature (ECT) are less than 50°C (122°F), and are within 8°C (14.5°F) of each other at engine start-up.
^ The ignition voltage is between 11-18 volts.
^ The HO2S voltage is between 425-475 mv at engine start-up.

CONDITIONS FOR SETTING THE DTC
The HO2S voltage remains between 375-525 mV for a predetermined period of time, depending on the ECT and the airflow.

ACTION TAKEN WHEN THE DTC SETS
^ The control module illuminates the malfunction indicator lamp (MIL) on the second consecutive ignition cycle that the diagnostic runs and fails.
^ The control module records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the control module stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive ignition cycle, the control module records the operating conditions at the time of the failure. The control module writes the operating conditions to the Freeze Frame and updates the Failure Records.

CONDITIONS FOR CLEARING THE MIL/DTC
^ The control module turns OFF the malfunction indicator lamp (MIL) after 3 consecutive ignition cycles that the diagnostic runs and does not fail.
^ A current DTC, Last Test Failed, clears when the diagnostic runs and passes.
^ A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic.
^ Clear the MIL and the DTC with a scan tool.

TEST DESCRIPTION

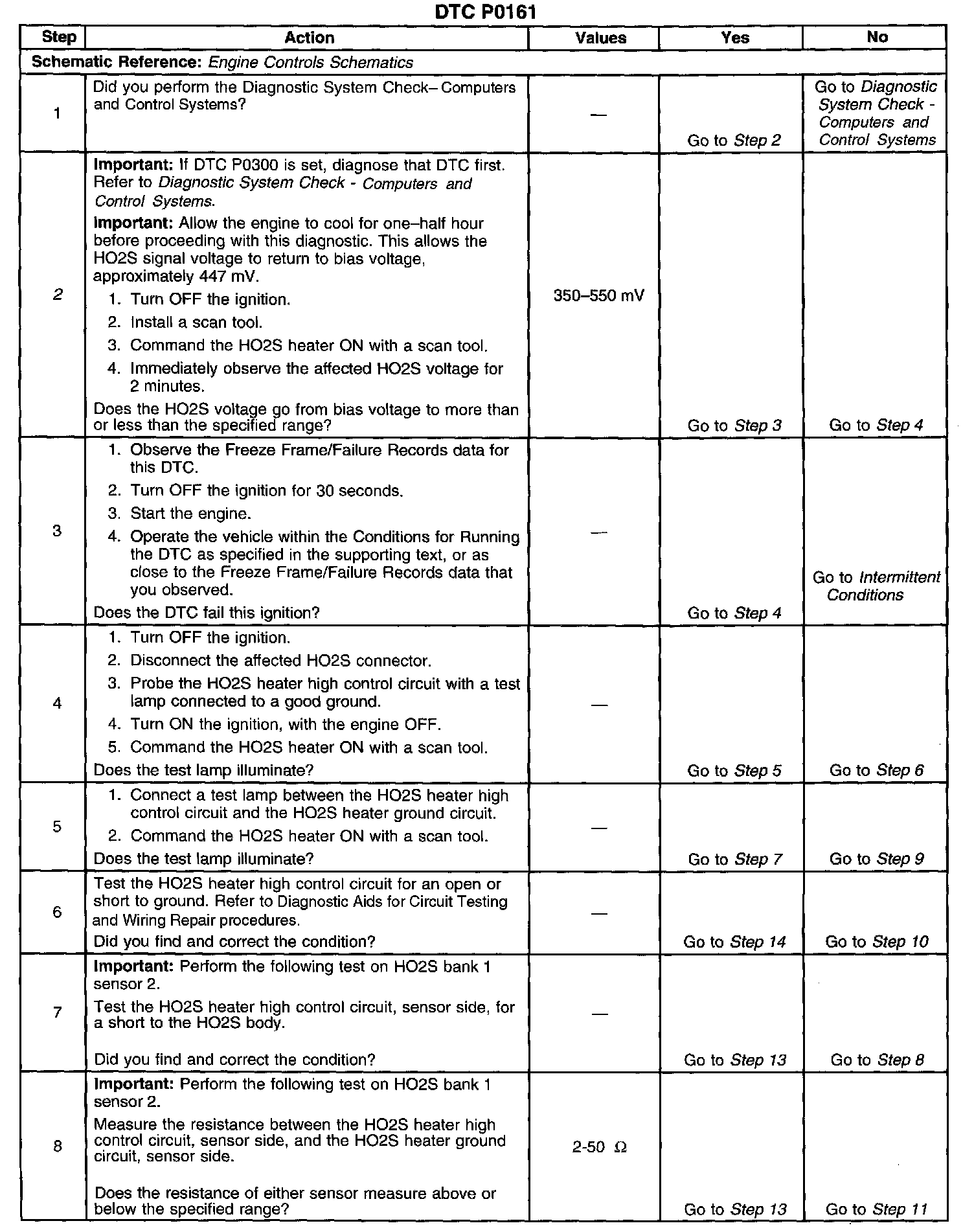

Steps 1-8:

Steps 9-15:

The numbers below refer to the step numbers on the diagnostic table.
2. After the HO2S heater is commanded ON, the HO2S heater heats up causing the HO2S signal voltage to either increase or decrease. This indicates that the HO2S heater is OK.
10. Resistance within the specified range indicates the HO2S heater is OK.
