P0133

CIRCUIT DESCRIPTION
Heated oxygen sensors (HO2S) are used for fuel control and post catalyst monitoring. Each HO2S compares the oxygen content of the surrounding air with the oxygen content of the exhaust stream. When the vehicle is first started, the powertrain control module (PCM) operates in an Open Loop mode, ignoring the HO2S signal voltage when calculating the air-to-fuel ratio. The PCM circuitry that monitors the HO2S generates a reference, or bias, voltage of 450 mV when the sensor is cold, high resistance. Once the HO2S warms up, the HO2S generates a voltage within a range of 0-1000 mV, depending on the exhaust gas oxygen content. High HO2S voltage output indicates a rich fuel mixture. Low HO2S voltage output indicates a lean mixture. Once fueling goes Closed Loop, the HO2S voltage will fluctuate above and below the bias voltage. A heating element inside the HO2S reduces the time required for the sensor to reach operating temperature, and provide an accurate voltage signal.

The PCM monitors the HO2S rich-to-lean and lean-to-rich transition time. This DTC will set if the HO2S average response time exceeds a calibrated value.

CONDITIONS FOR RUNNING THE DTC
^ DTCs P0101, P0102, P0103, P0106, P0107, P0108, P0112, P0113, P0116, P0117, P0118, P0200, P0300, P0351-P0358, P0400, P0401, P0404, P0405, P0410, P0440, P0442, P0443, P0446, P0449, P0452, P0453, P1120, P1125, P1220, P1221, P1258, P1404, P1441, P1514, P1515, P1516, P1517, or P1518 are not set.
^ The secondary air injection (AIR) and the exhaust gas recirculation (EGR) diagnostics are not active.
^ The engine coolant temperature (ECT) is more than 60°C (140°F).
^ The ignition voltage is between 11-18 volts.
^ The fuel system is operating in Closed Loop.
^ The engine speed is between 1,000-3,000 RPM.
^ The engine airflow is between 29-55 g/s.
^ The evaporative emission (EVAP) canister purge duty cycle is more than 1 percent.
^ The engine run time is more than 160 seconds.
^ The fuel level is more than 10 percent.

CONDITIONS FOR SETTING THE DTC
^ The lean to rich response average time is more than 250 milliseconds.
^ The rich to lean response average time is more than 160 milliseconds.
^ The above conditions are met for 100 seconds.

ACTION TAKEN WHEN THE DTC SETS
^ The control module illuminates the malfunction indicator lamp (MIL) on the second consecutive ignition cycle that the diagnostic runs and fails.
^ The control module records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the control module stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive ignition cycle, the control module records the operating conditions at the time of the failure. The control module writes the operating conditions to the Freeze Frame and updates the Failure Records.

CONDITIONS FOR CLEARING THE MIL/DTC
^ The control module turns OFF the malfunction indicator lamp (MIL) after 3 consecutive ignition cycles that the diagnostic runs and does not fail.
^ A current DTC, Last Test Failed, clears when the diagnostic runs and passes.
^ A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic.
^ Clear the MIL and the DTC with a scan tool.

TEST DESCRIPTION

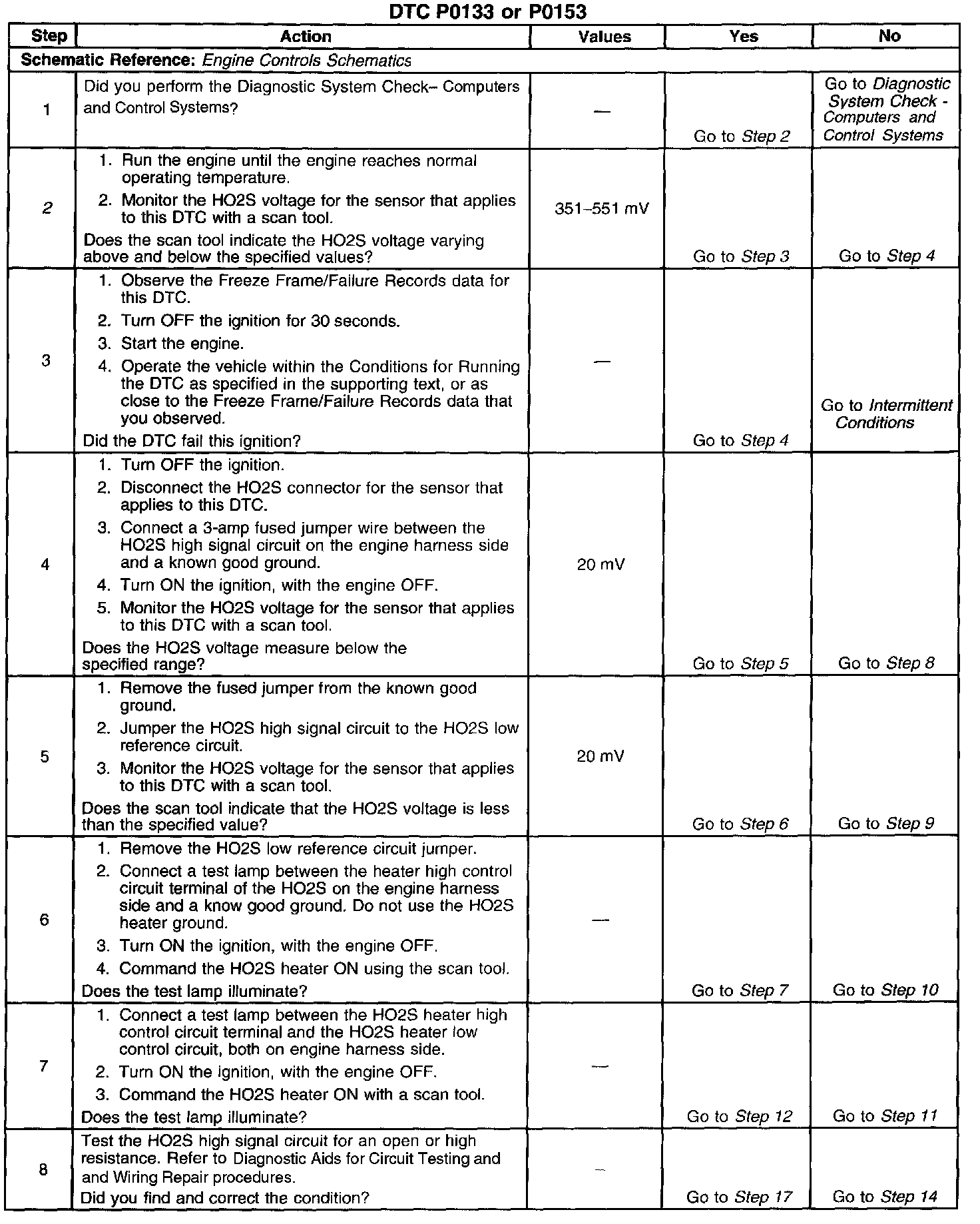

Steps 1-8:

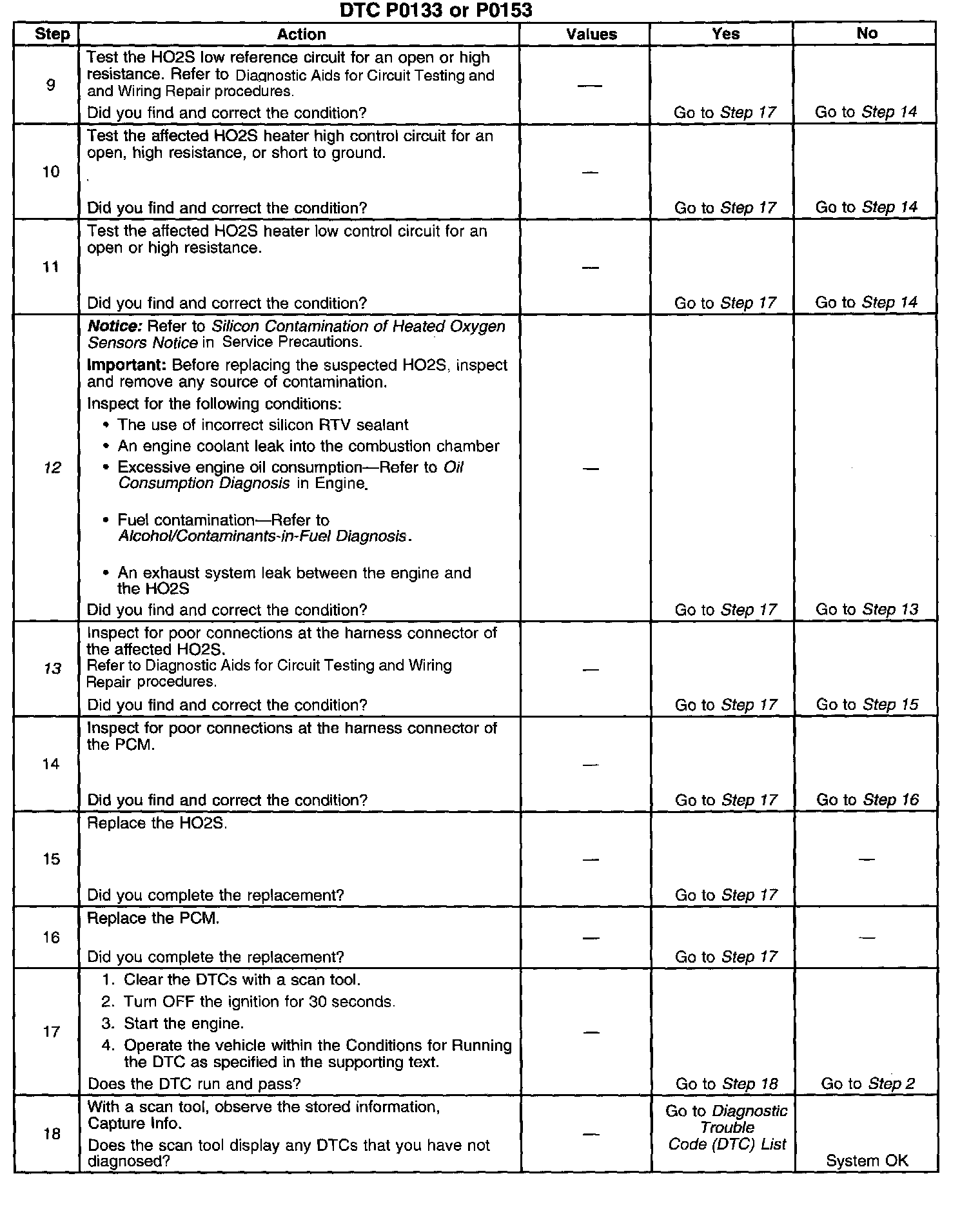

Steps 9-18:

The numbers below refer to the step numbers on the diagnostic table.
2. HO2S contamination is indicated if multiple response, switching, or time ratio HO2S DTCs are set.
12. An HO2S contaminated by silicon will have a white, powdery deposit on the portion of the HO2S that is exposed to the exhaust stream. The usual cause of silica contamination is the use of un-approved silicon RTV engine gasket material or the use of the use of silicon based sprays or fluids within the engine. If the cause of this contamination is not corrected, the replacement HO2S will also be contaminated.
