Engine Speed Vs Hertz
Engine Speed Vs Hertz

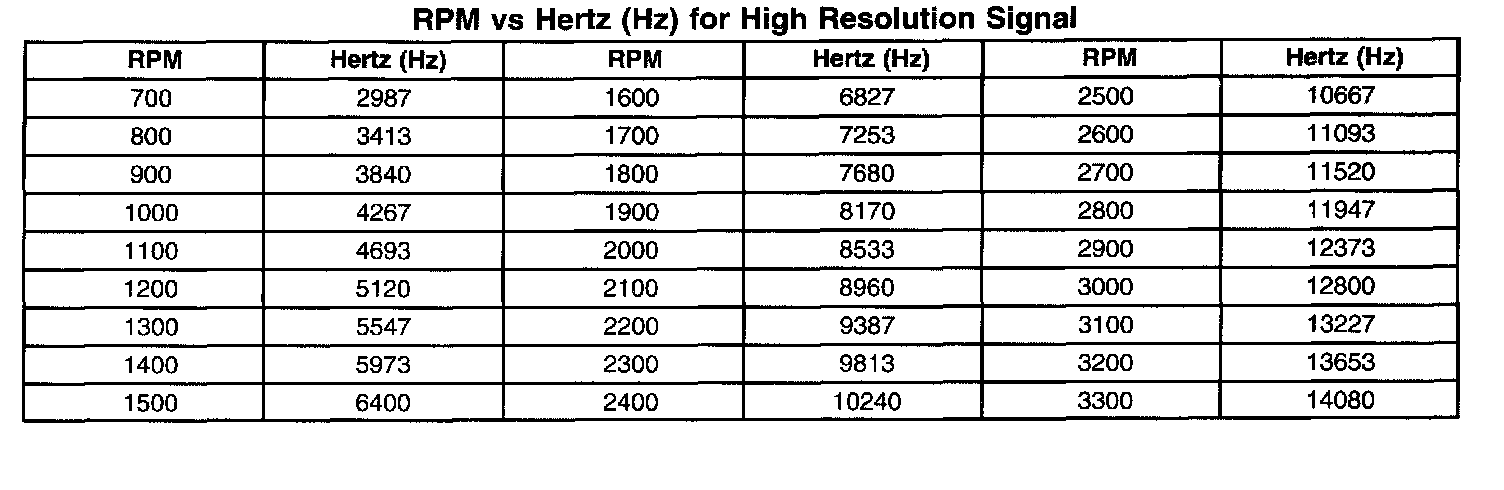

RPM Vs Hertz (Hz) For High Resolution Signal:

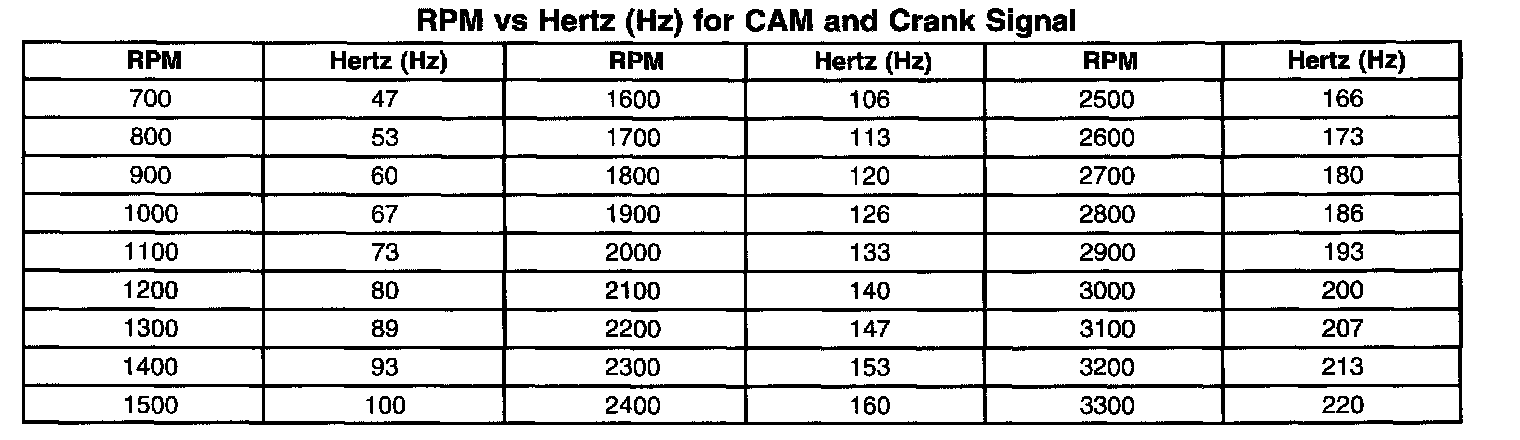

RPM Vs Hertz (Hz) For Cam And Crank Signal:
