Water In Fuel Sensor: Service and Repair

REMOVAL PROCEDURE




1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle.
2. Remove the fuel tank filler cap.
3. Remove the protective shield from fuel manager/filter.
4. Open the air bleed valve on top of the fuel manager/filter in order to release any pressure in the fuel supply system.




5. Disconnect the sensor wiring connector by pulling straight down.
6. Remove the water-in-fuel sensor by turning counterclockwise.

INSTALLATION PROCEDURE

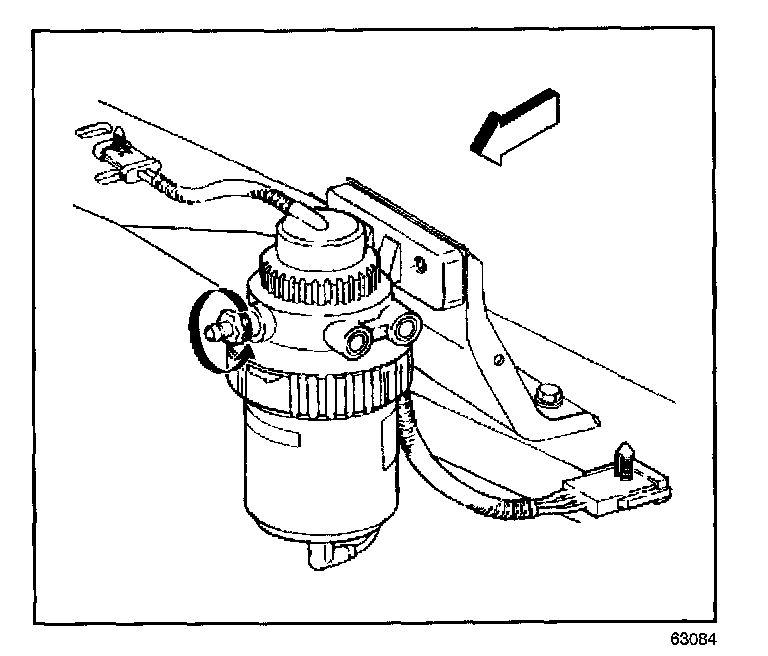

1. Install the new water-in-fuel sensor (7) and seal.
2. Reconnect the sensor connector.
3. Install the protective shield.
4. Bleed the air from the fuel manager/filter if necessary.
5. Install fuel tank filler cap.
6. Lower the vehicle.
