1. Engine Lift Bracket Removal

Engine Lift Bracket Removal

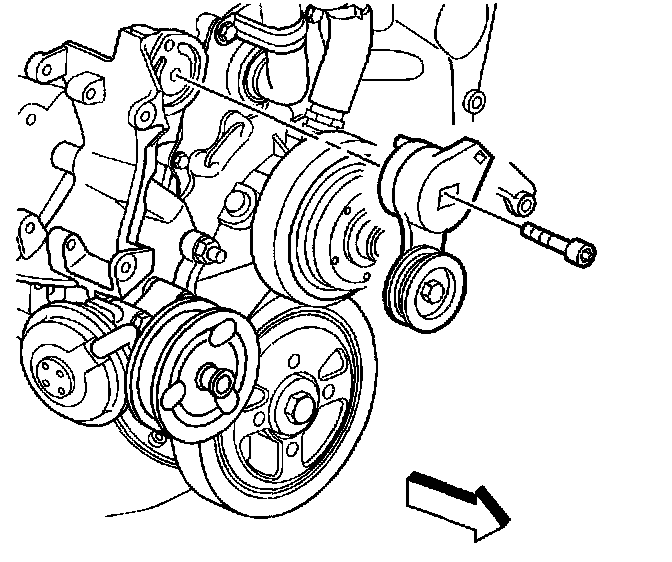

1. Remove the drive belt tensioner retaining bolt.





2. Remove the drive belt tensioner.

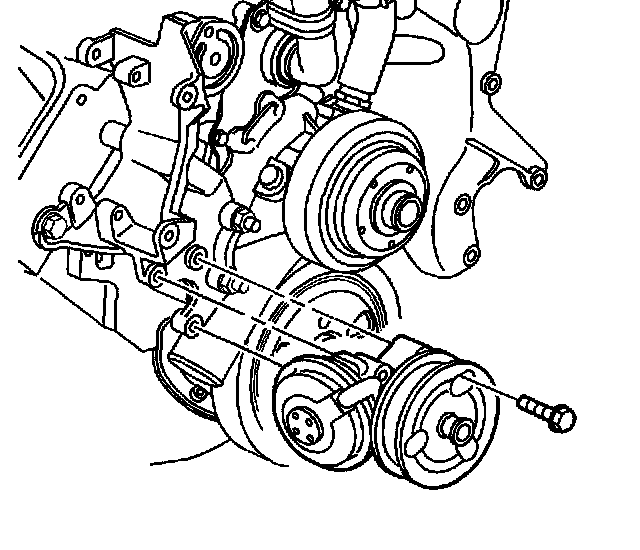

3. Remove the vacuum pump retaining bolts.
4. Remove the vacuum pump.

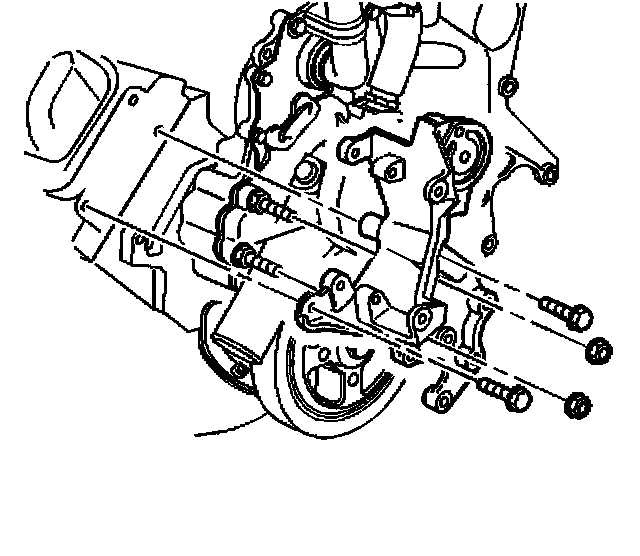

5. Remove the right accessory bracket retaining bolts.
6. Remove the right accessory bracket retaining nuts.
7. Remove the right accessory bracket.





8. Remove the left accessory/lift bracket retaining bolts.
9. Remove the left accessory/lift bracket retaining nut (if equipped).
10. Remove the left accessory/lift bracket.
