Engine Oil: Service and Repair

Engine Oil and Oil Filter Replacement

Removal Procedure





1. Raise the vehicle. Refer to Vehicle Lifting.

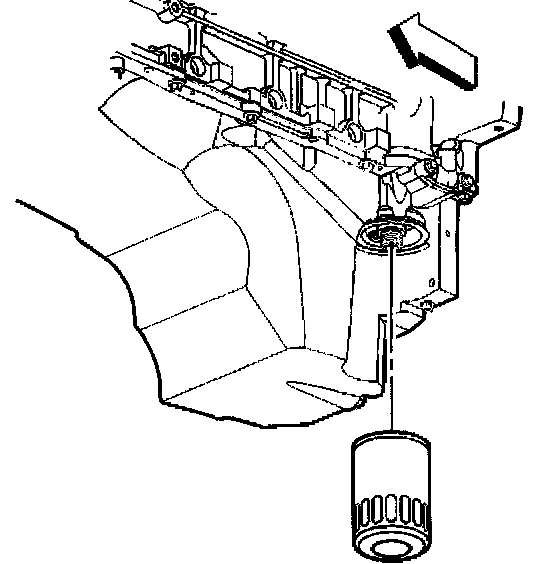

2. Remove the Oil filter from the engine block.
3. Remove the drain plug from the Oil pan.

Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.

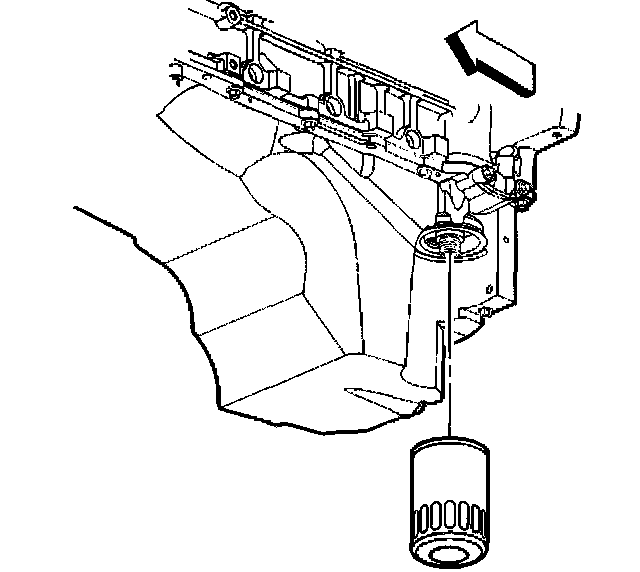

1. Install the oil filter to the engine block.
^ Tighten the oil filter following the instructions on the oil filter box.
2. Install the drain plug to the oil pan.
^ Tighten the drain plug to 25 Nm (18 ft. lbs.).
3. Lower the vehicle.

Important: When performing an oil filter and oil change on a 6.5L diesel engine. use only 8 quarts of oil. This will bring the oil level between ADD and FULL, which is normal. Start the vehicle and wait until the engine reaches normal operating temperature. Shut: the vehicle off and wait a minimum of 15 minutes before checking the oil level. It should read FULL or very close to FULL. Do not check the oil level when the engine is cold, a false reading will occur.

4. Fill the crankcase with proper capacity and quality of engine oil.
5. Operate the engine inspect for leaks and proper oil pressure.
